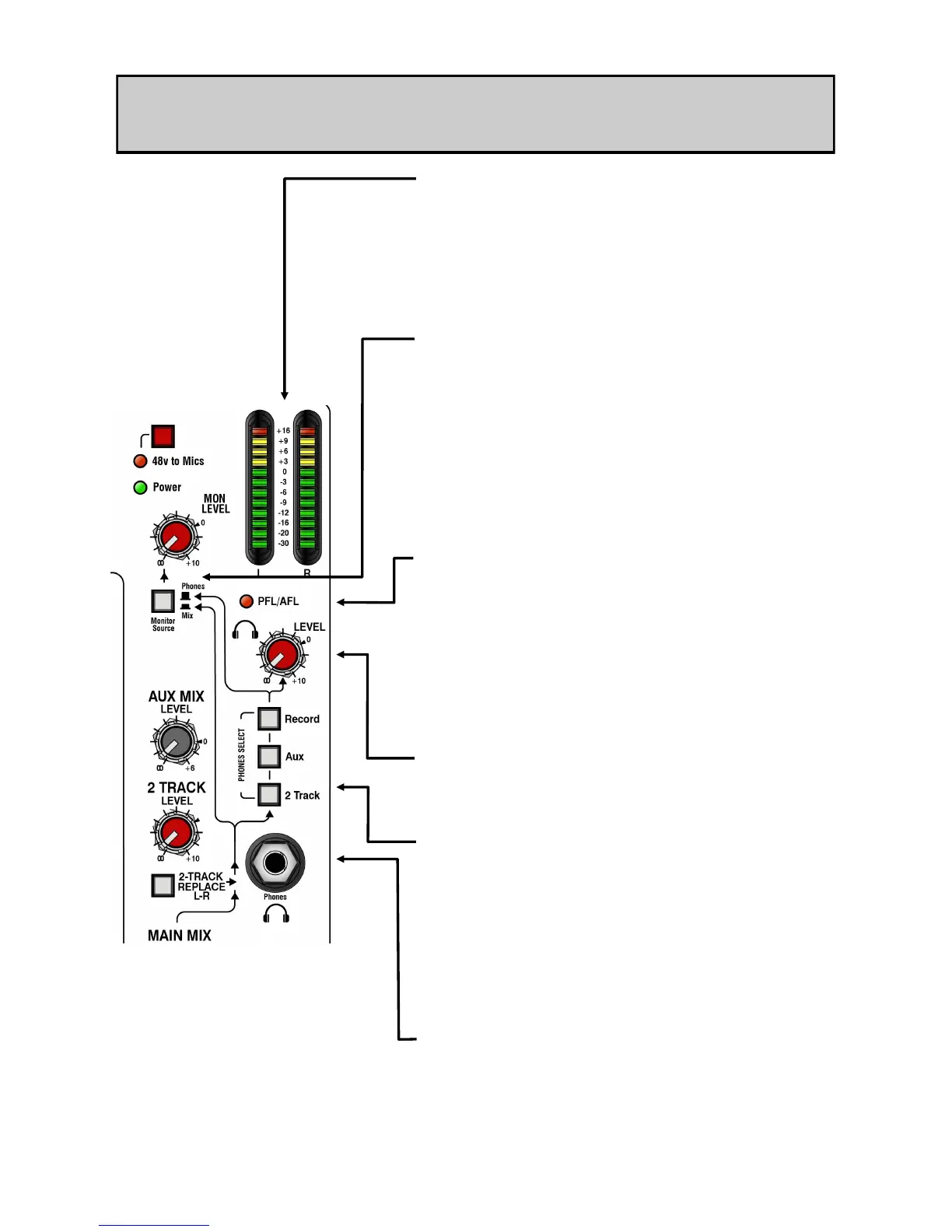

Allen & Heath 26 ZED POWER 1000
Monitor Level & Source switch
Controls the volume of the stereo monitor outputs
from off (fully attenuated) to +10dB of gain.
The switch allows the stereo monitor outputs (RCA
phonos) to be sourced either from the headphone
monitor selection, or from the main stereo mix.
Useful for splitting the functions of the stereo moni-
tor outputs from the headphones.
Stereo Meters
12 Segment LED meters with fast attack (4mSec) and
medium decay (1Sec).
The meters display the signals selected by the
Phones Select switches, or the mono Listen signal
(PFL) if activated by any of the Listen switches.
MASTER SECTION
PFL (Pre-Fade Listen) active LED
A red LED to indicate a Listen switch has been
pressed on one of the channels.
Doing this will override the Phones select source to
the headphones and send the Listen signal to the
meters.
Headphones level
Controls the volume of signal to the headphones.
Warning ! To avoid damage to
your hearing do not operate the
headphones or sound system at
excessively high volu me.
Continued exposure to high
volume sound can cause
frequency selective or wide
range hearing loss.
Phones Source Selector switches
These switches allow you to choose what you hear on the
headphones. With all switches up the default is the main
stereo Mix, then you can choose between the 2 Track
input (USB Input if nothing is plugged into the jacks), the
Aux bus output, or the Record bus output. Pressing any
Listen switch will override the selection and allow you to
monitor individual channels.
Headphones Output
Standard 1/4” (6.25mm) jack socket wired Tip=Left,
Ring=Right, Sleeve=Ground.
