308 Rockwell Automation Publication 1769-UM021G-EN-P - October 2015
Appendix A Troubleshoot the Module
Use the CompactLogix 5370
Controllers Status Indicators

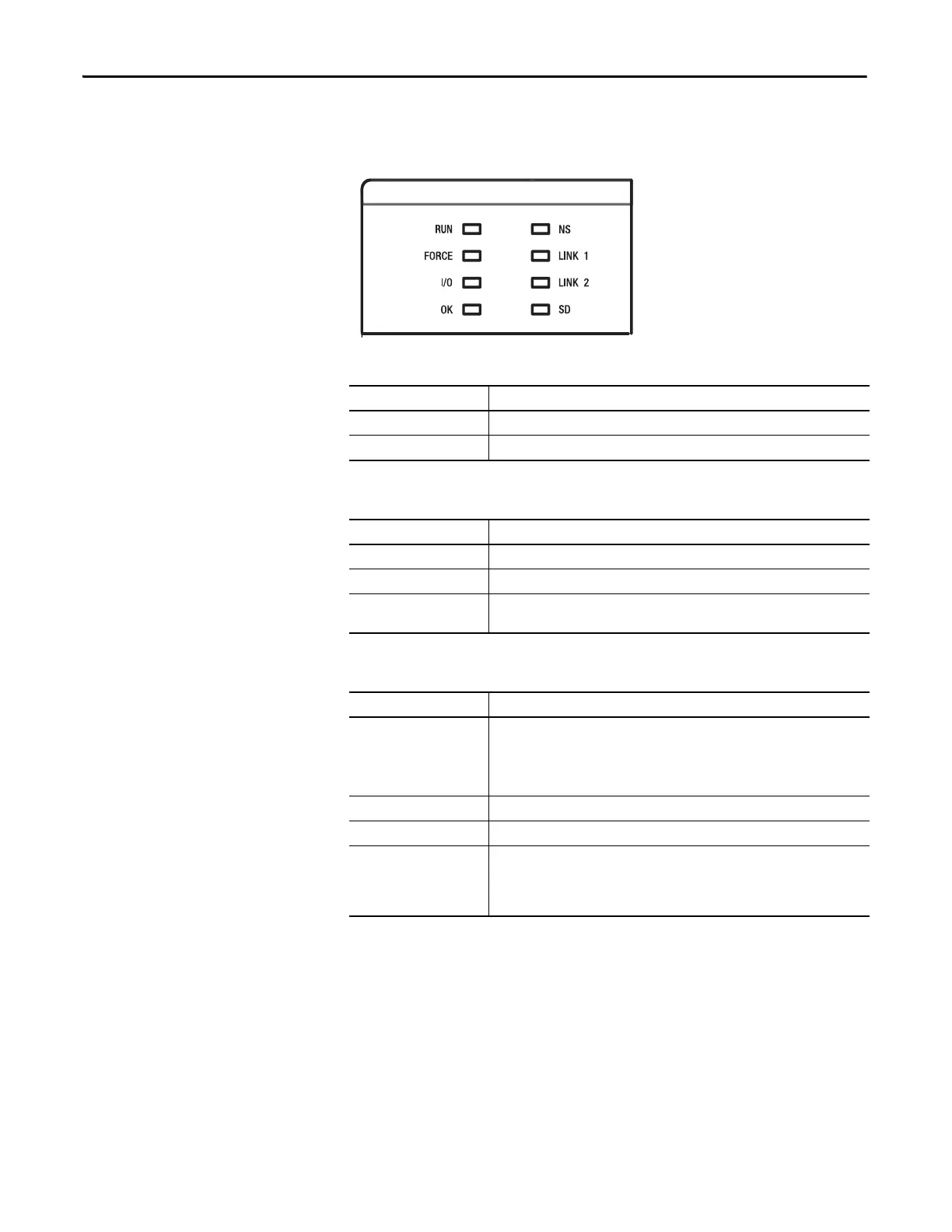

The following graphic shows the controller status indicators for all
CompactLogix 5370 controllers.
Table 39 - Controller Mode (RUN) Status Indicator
Status Description
Off The controller is in Program or Test mode.
Green The controller is in Run mode.
Table 40 - Force State (FORCE) Status Indicator
Status Description
Off No tags contain I/O force values. I/O forces are inactive (disabled).
Yellow I/O forces are active (enabled). I/O force values can exist.
Flashing yellow One or more input or output addresses have been forced to an On or Off condition, but
the forces have not been enabled.
Table 41 - I/O State (I/O) Status Indicator
Status Description
Off One of the following conditions exists:
• There are no devices in the I/O configuration of the controller. - Applies to only
CompactLogix 5370 L3 controllers.
• The controller does not contain a project.
Green The controller is communicating with all devices in its I/O configuration.
Flashing green One or more devices in the I/O configuration of the controller are not responding.
Flashing red One of the following conditions exists:
• The controller is not communicating with any devices.
• A fault has occurred on the controller. - Only CompactLogix 5370 L1 and L2
controllers.
