Allen-Bradley PowerFlex 20-750-20COMM User Manual

222 Rockwell Automation Publication 750-IN001O-EN-P - October 2014
Chapter 5 I/O Wiring
Access Drive Control Pod

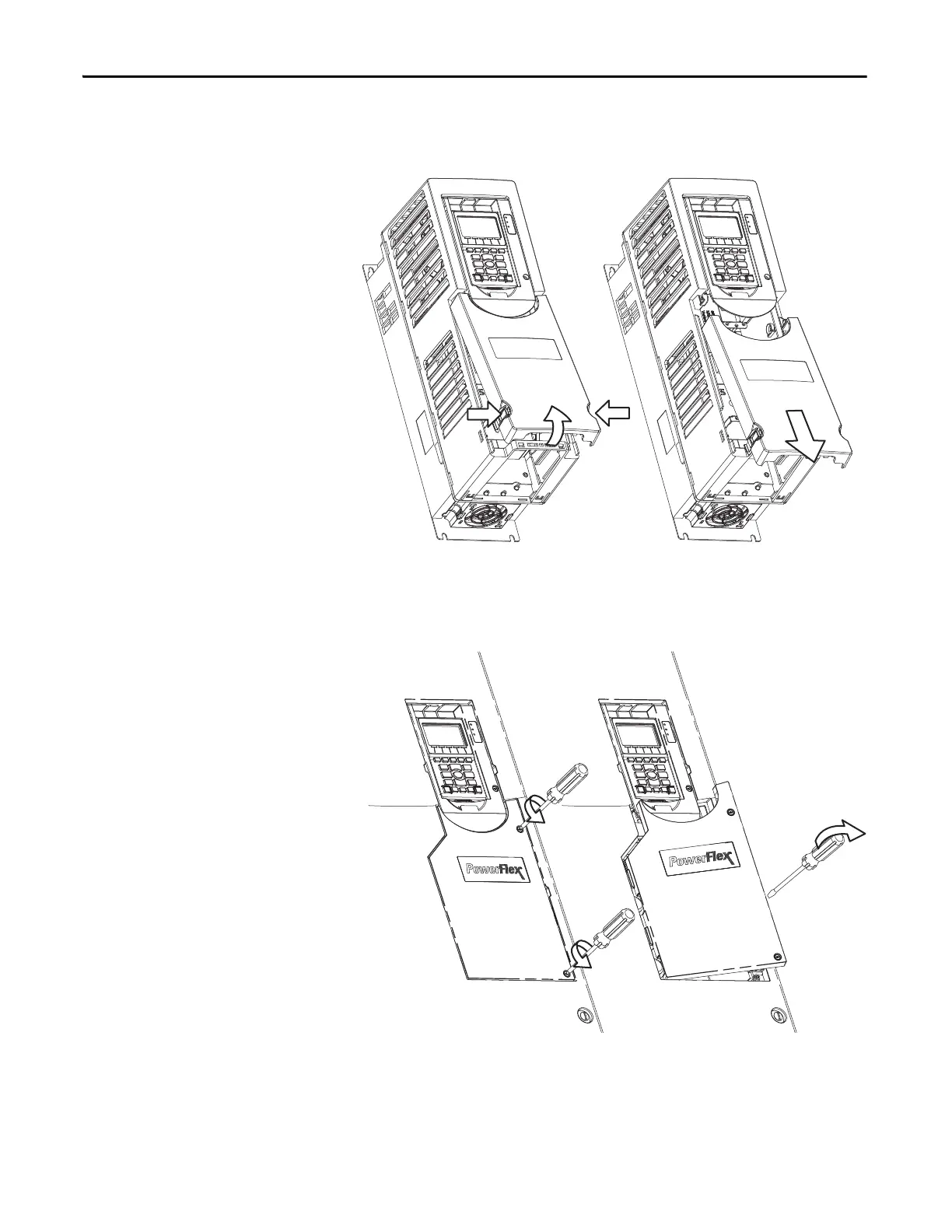

1. Remove drive cover
Wall Mount Frames 1…5
– Squeeze locking tabs and pull out bottom of cover.
– Pull cover down and away from the chassis.
Wall Mount Frames 6…7
– Loosen door screws.
– Gently pry the door open to remove.
