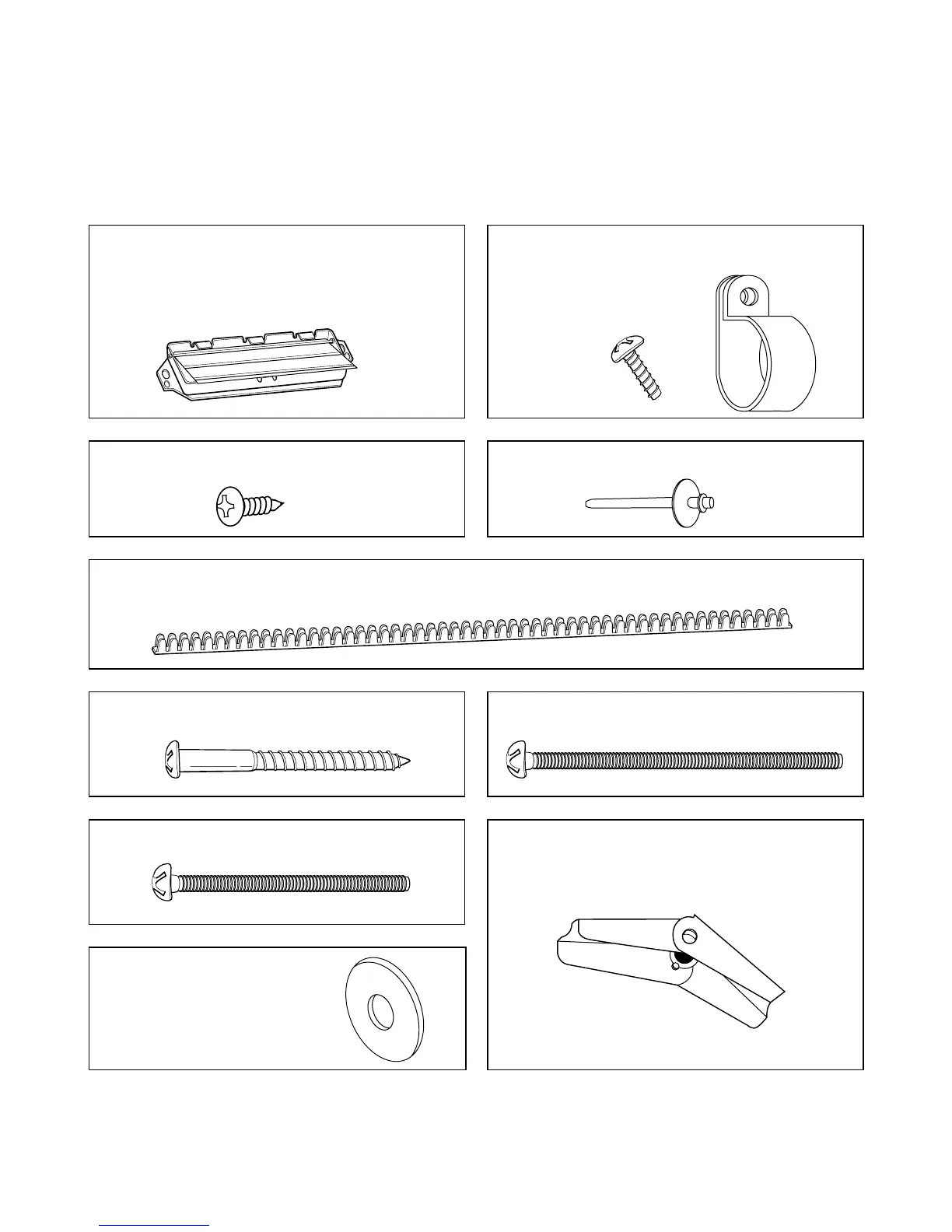

THE FOLLOWING PARTS ARE SUPPLIED WITH THE OVEN:
NOTE: Depending on your ventilation requirements, you may not use all of these parts.
NOTE: You need to install at least 2 lag screws into one 2" x 4" stud and four anchor bolts into the wall.
The mounting area must meet the 150 lbs. weight requirement.
- 10 -
Backdraft damper / duct connector
(for roof-venting or wall-venting installation)
Not Actual Size ( 2 pieces must be
assembled as shown )
One power cord clamp and
One dark-colored mounting screw
(to hold the power cord)
Actual Size
Four 1/4" x 2" lag screws - Actual Size
(for wall stud holes)
Two 1/4" x 2" or 3" bolts - Actual Size
(for securing to the upper cabinet)
Four spring toggle heads - Actual Size
(for the toggle bolts)
Two washers - Actual Size
(for the two upper cabinet bolts)
Four 1/4" x 3" toggle bolts - Actual Size
(for drywall holes)
One power cord clamp bushing - Actual Size
(for the cord hole in a metal upper cabinet)
One lock pin and one washer-Not Actual size
