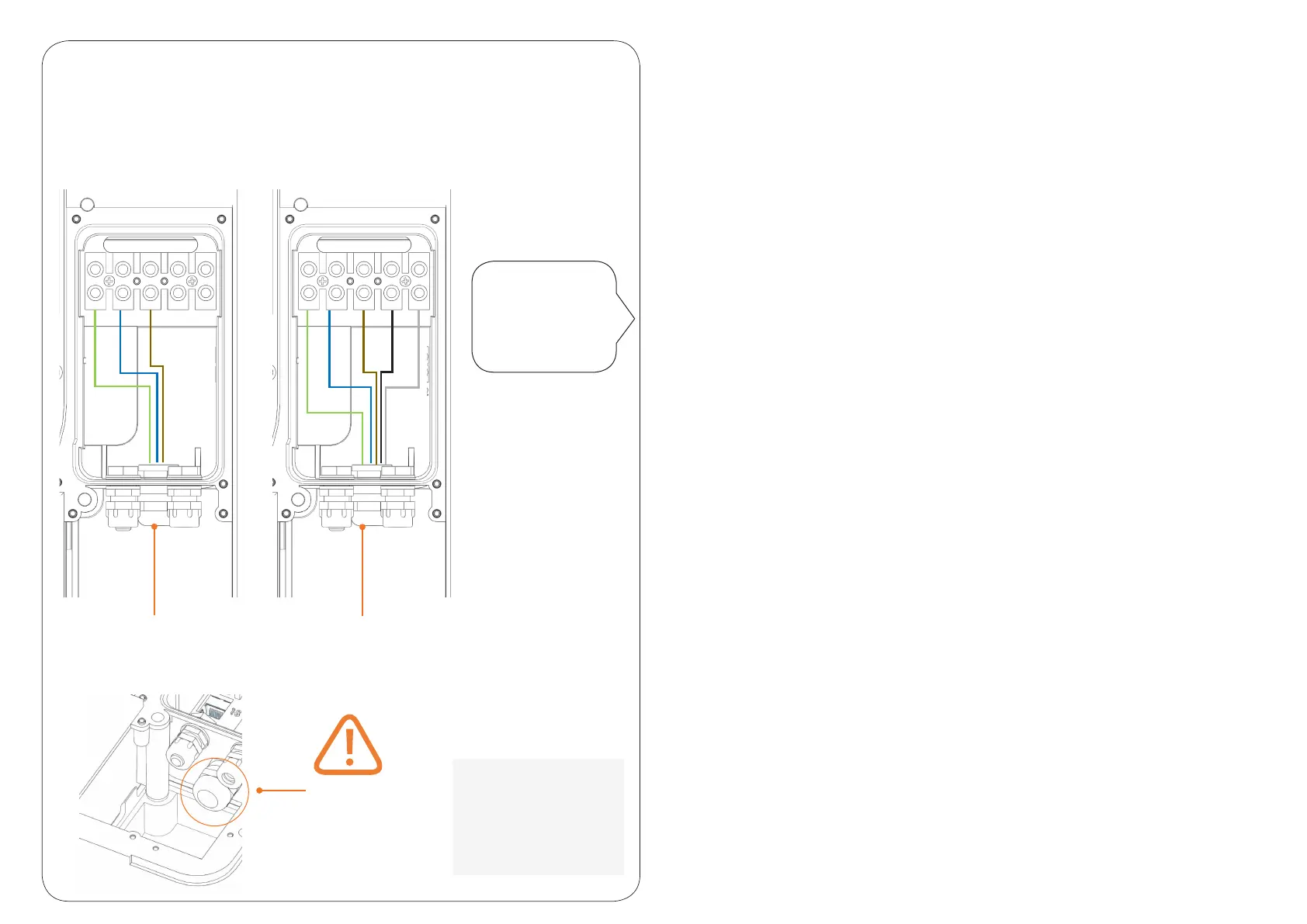

Step 3: T
erminate supply power cable
Single Phase installation
Three Phase installation
Note:
HI TUFF cable not
recommended, It
is very dicult to
terminate
Important.
Make sure the
gland is tightened
after cable
installation
TIP!
Suggested cable
types PVC or
S
WA
x29
M3 x 16mm
long screw
E
L1
N
E
L1
N
L2
L3
Single Phase installation
Three Phase installation
Incoming single
phase supply
Incoming three
phase supply
4
6
Table of Contents
Operation Led Status
2
Setup Multi Function Operation
2
Error & Update Led Status
2
Setup Led Status
2
Fix A2 Unit to Wall
3
Prepare A2 Core for Supply Cable Entry
4
Terminate Supply Power Cable
5
Single Phase Installation
5
Three Phase Installation
5
Terminate Sensor & Data Cables
6
AEPS Sensor
6
Solar CT Sensor Cable
6
Dynamic Fuse CT Sensor Cable
6
Terminate Vehicle Side Charge Cable
7
Single Phase Cable
7
Three Phase Cable
7
Fit Weather Project Covers
9
Fit Side Panels
10
Fit Cable Brushes
11
Fit Lid Panel
12
Fit Bottom Panel
13
Fit Front Panel
14
Warning
15
Safety Notice
15
