(1) -Test point pressure
(2) - Nominal gas consumption
(2.1) - Main burner injector size
(3) - Turndown gas consumption
(3.1) - Bypass injector size
(3.2) - Bypass test point pressure
(4) - Pilot injector size
(5) - Bushing diameter
- ANNEXES -
Model
Burner Total Gas consumption
22 MJ/h NGN ULPG
1G0FT1G
1G0FT2G
1G0FT3G
1G0FT4G
1G0FT6G
N. 2 44 MJ/h 44 MJ/h

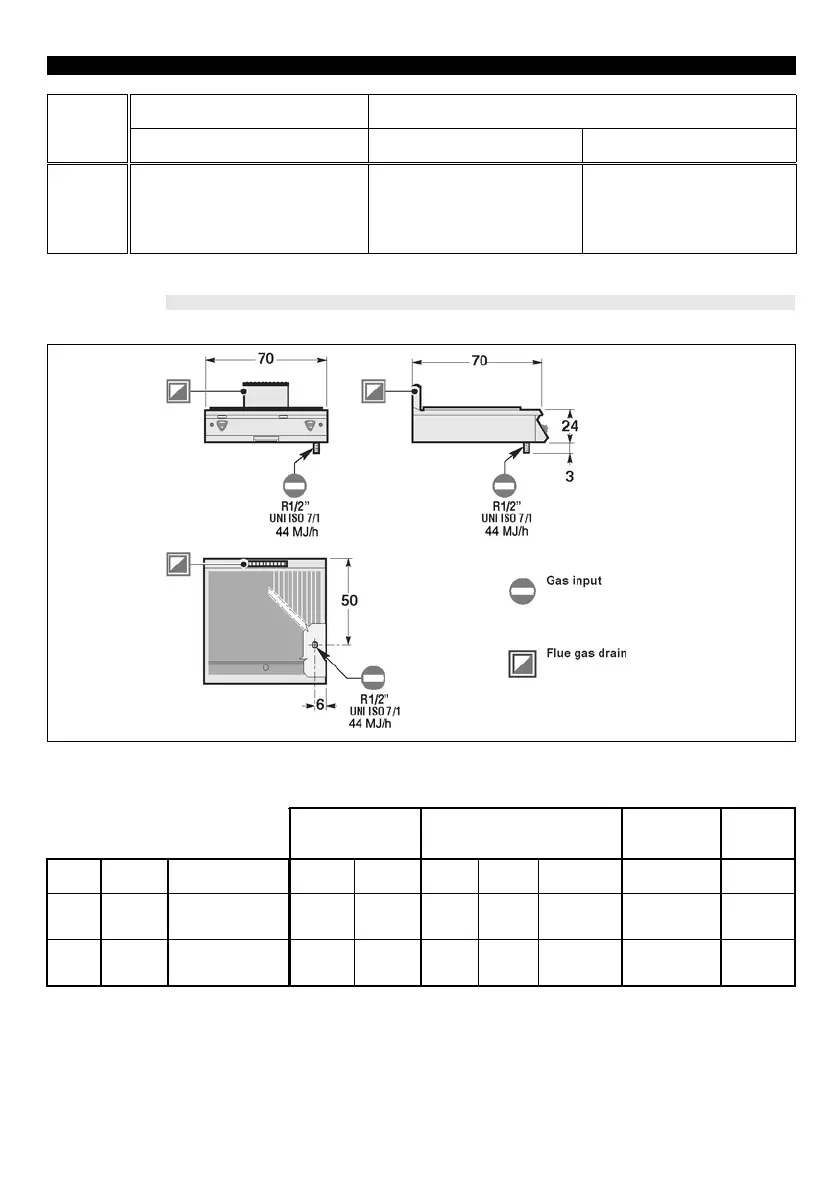

- CONNECTION CARD -
N.G.C. (2) T.G.C. (3) Pilot Flame Bushing
GAS TPP (1) Supply pressure G.C. Ø (2.1) G.C. Ø (3.1) p (3.2) Ø (4) Ø (5)
NGN
0.8 kPa
1.13 kPa 44 MJ/h 2.20mm 27 MJ/h 1.30 mm
adj-pressure
0.3 kPa
0.40 mm 11mm
ULPG
2.75 kPa
2.75 kPa 44 MJ/h 1.25mm 27 MJ/h 1.30 mm
N O a dj
All screw
0.25 mm 11mm
IDM-39603310100.tif
M
M
M
