18.5" LCD Color Monitor AOC 936Swa
8

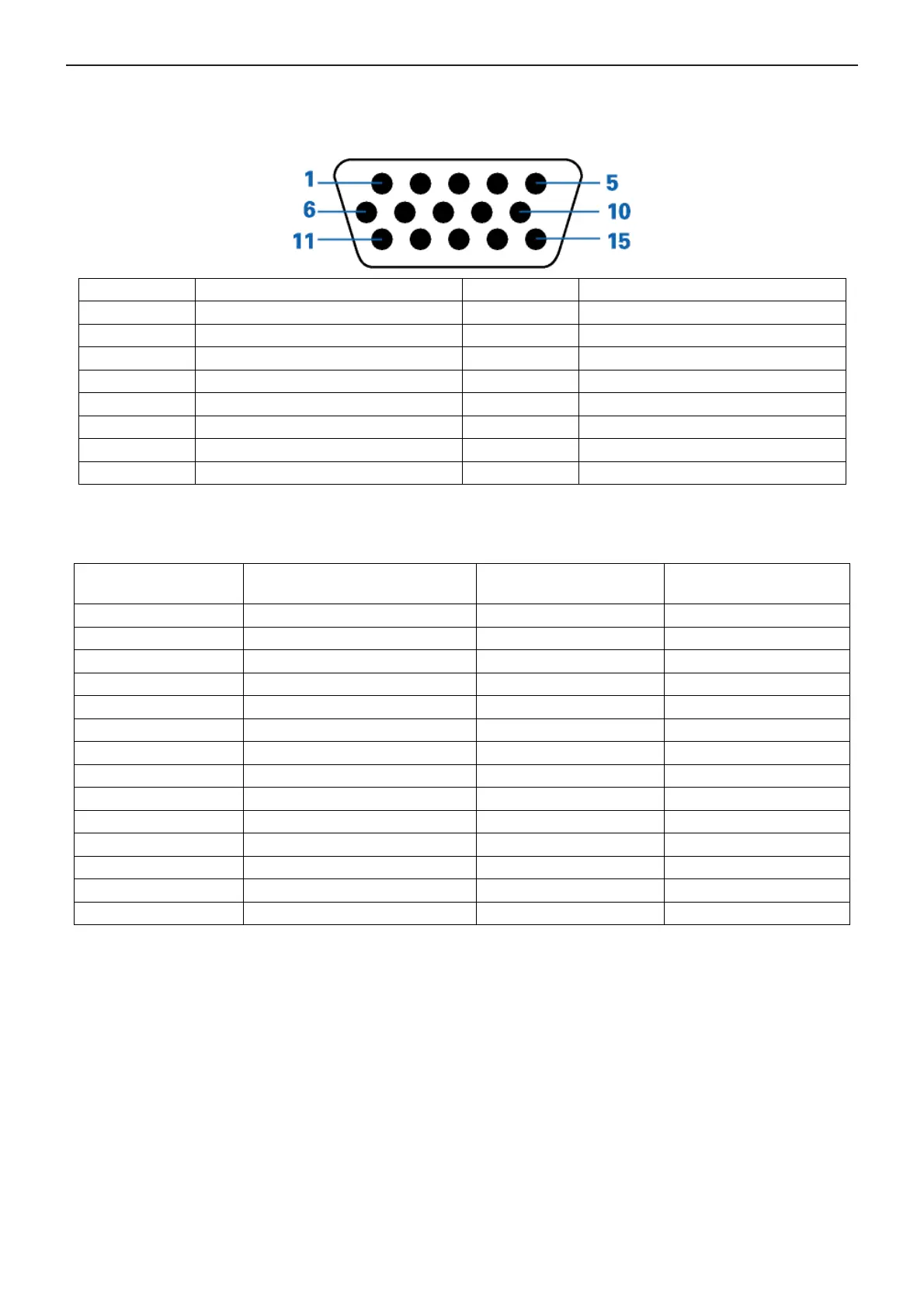

4. Input/Output Specification
4.1 Input Signal Connector
D-Sub mini 15pin Connector
Pin Number 15-Pin Side of the Signal Cable Pin Number 15-Pin Side of the Signal Cable
1 Video-Red 9 +5V
2 Video-Green 10 Ground
3 Video-Blue 11 N.C.
4 N.C. 12 DDC-Serial data
5 Detect Cable 13 H-sync
6 GND-R 14 V-sync
7 GND-G 15 DDC-Serial clock
8 GND-B
4.2 Factory Preset Display Modes
STAND RESOLUTION
HORIZONTAL
FREQUENCY(kHz)
VERTICAL
FREQUENCY(Hz)
VGA 640×480 @60Hz DMT 31.469 59.94
VGA 640×480 @67Hz MAC 35 66.667
VGA 640×480 @72Hz DMT 37.861 72.809
VGA 640×480 @75Hz DMT 37.5 75
Dos-mode 720×400 @70Hz DOS 31.469 70.087
SVGA 800×600 @56Hz DMT 35.156 56.25
SVGA 800×600 @60Hz DMT 37.879 60.317
SVGA 800×600 @72Hz DMT 48.077 72.188
SVGA 800×600 @75Hz DMT 46.875 75
SVGA 832×624 @75Hz 49.725 74.55
XGA 1024×768 @60Hz DMT 48.363 60.004
XGA 1024×768 @70Hz DMT 56.476 70.069
XGA 1024×768 @75Hz DMT 60.023 75.029
WXGA 1366x768 @60Hz DMT 47.765 59.85
