Connecting the Monitor

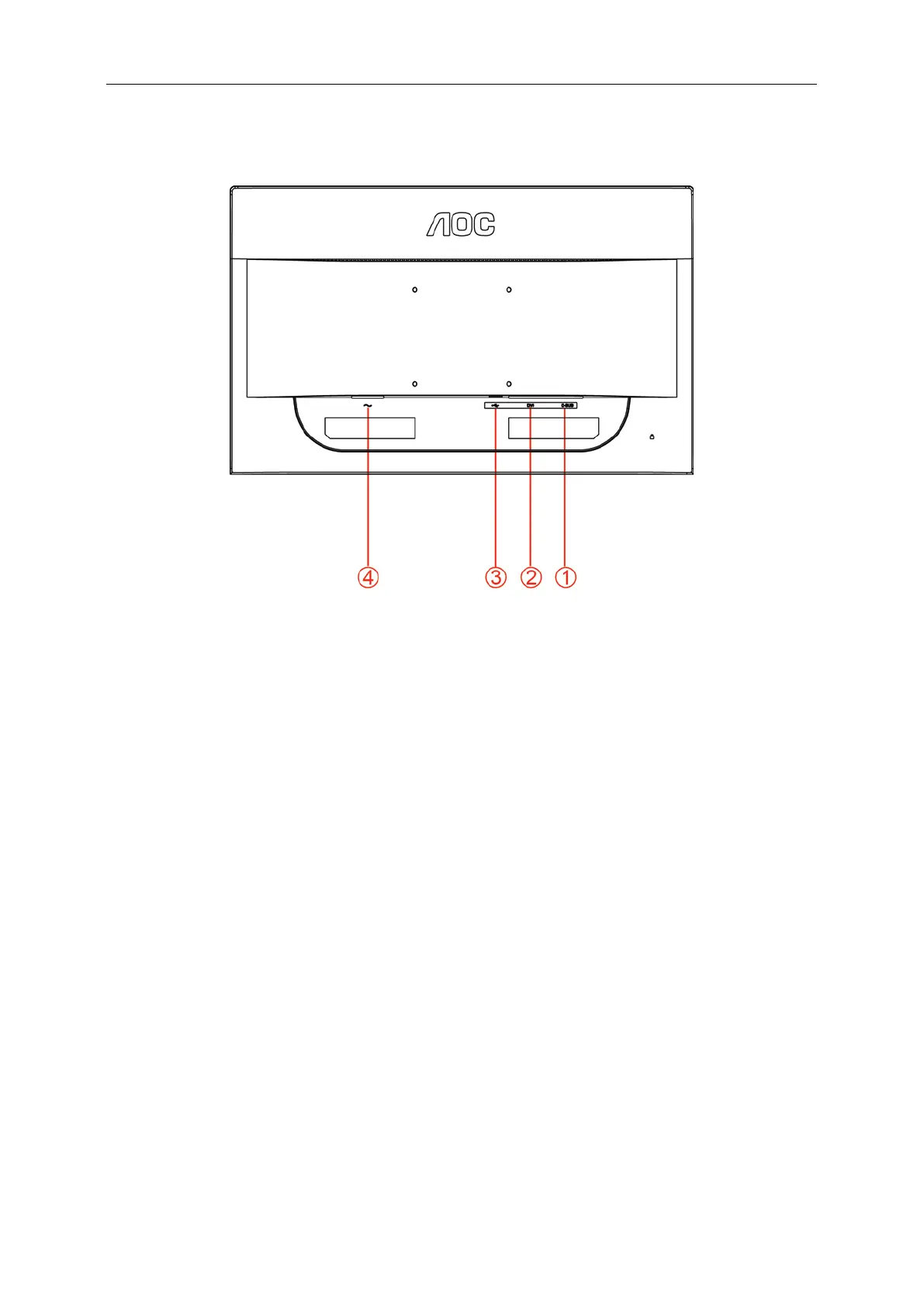

Cable Connections In Back of Monitor and Computer:
1. VGA cable
2. DVI cable
3. USB cable
4. Power cable
To protect equipment, always turn off the PC and LCD monitor before connecting.
1. Connect the power cable to the AC port on the back of the monitor.
2. Connect one end of the 15-pin D-Sub cable to the back of the monitor and connect the other end to the
computer's D-Sub port.
3. Optional – (Requires a video card with DVI port) - Connect one end of the DVI cable to the back of the monitor
and connect the other end to the computer’s DVI port.
4. Connect one end of the USB cable to the back of the monitor and connect the other end to the computer's
USB port.
5. Turn on your monitor and computer.
If your monitor displays an image, installation is complete. If it does not display an image, please refer
Troubleshooting.
