23
use and maintenance RS 125
!58),)!29%15)0-%.4
#2!3((%,-%4(//+
Thanks to the crash helmet hook, you no
longer have to carry the crash helmet with
you every time you park the vehicle.
Do not ride with the crash helmet
hanging from the hook, as this
may seriously compromise your
safety.
To hang the crash helmet:
◆
Remove the rider saddle, see p. 56 (RE-
MOVING THE RIDER SADDLE).
◆

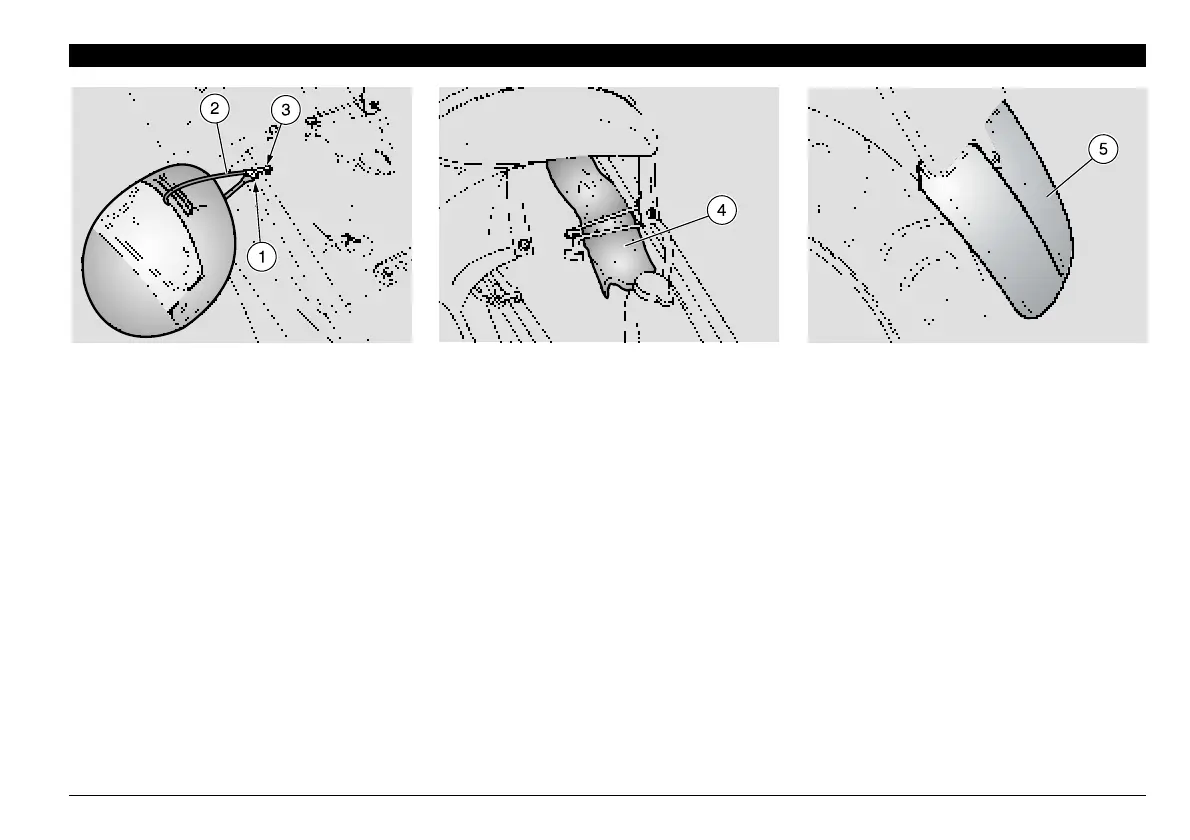

Withdraw the eyelet (1) of the cable (2)
from the hook (3).
◆
Pass the cable (2) through the visor
opening or through the appropriate loop
on the crash helmet.
◆
Insert the eyelet (1) completely in the
hook (3).
◆
Put back the rider saddle and lock it.
',/6%4//,+)4#/-0!24-%.4
The glove/tool kit compartment is posi-
tioned under the rider saddle; to reach it:
◆
Position the vehicle on the stand.
◆
Remove the rider saddle, see p. 56 (RE-
MOVING THE RIDER SADDLE).
The tool kit (4) includes:
– 3, 5 mm Allen spanners
– 10-13 mm double fork spanner
– 17-21 mm spark plug socket spanner
– Double-ended, cross-/4 mm hexagon
spanner-headed screwdriver.
– Tool case
Max. allowed weight: 1.5 kg
2%!2-5$'5!2$%84%.3)/.
(in the countries where required)
The extension of the rear mudguard (5) is
extremely useful when the road surface is
wet, in fact it reduces the reach of the wa-
ter spray caused by the rear wheel.
The rear mudguard extension (5)
is supplied as standard compo-
nent in the countries where this is re-
quired for the homologation.
