Models 915220, 915221, 915222, 915223,
915224, 915225
See Figure 38.
1. Tip seat forward.
2. Loosen the two wing knobs located at the
front of the seat plate.
3. Adjust seat to desired position.
4. Tighten wing knobs.
5. Return seat to operating position.
ADJUST STEERING LEVERS
Adjust Steering Lever Height

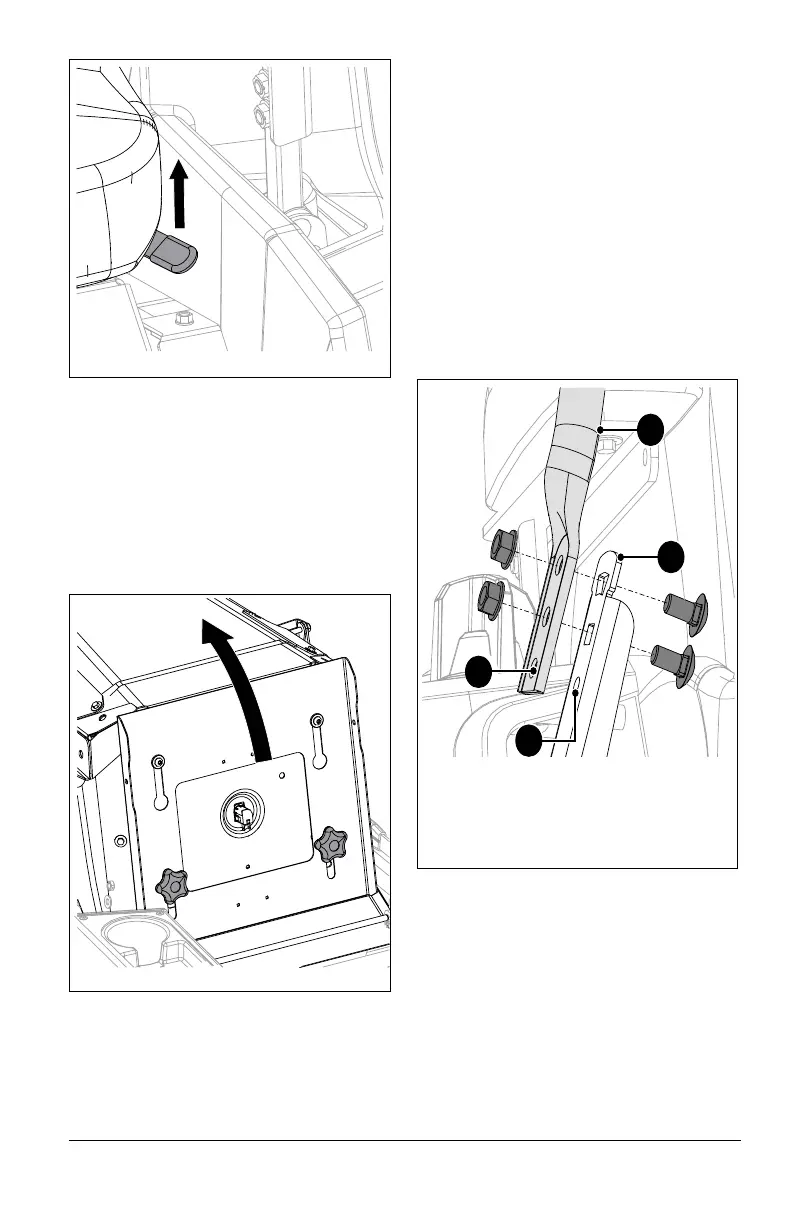

See Figure 39.
1. Remove hardware securing steering
lever to upper control arm.
2. Place steering lever in desired adjusting
hole.
• Use upper and middle holes for highest
lever position.
• Use middle and lower holes for lowest
lever position.
3. Reinstall hardware in upper control arm.
4. Align levers side to side. See Adjust
Steering Level Reach on page 29.
5. Fully tighten hardware.
Figure 39
1. Adjusting Hole
2. Mounting Hole
3. Steering Lever
4. Upper Control Arm
3
4
2
1
