INPUT
AND
OUTPUT
CONNECTIONS
STEREO
OPERATION

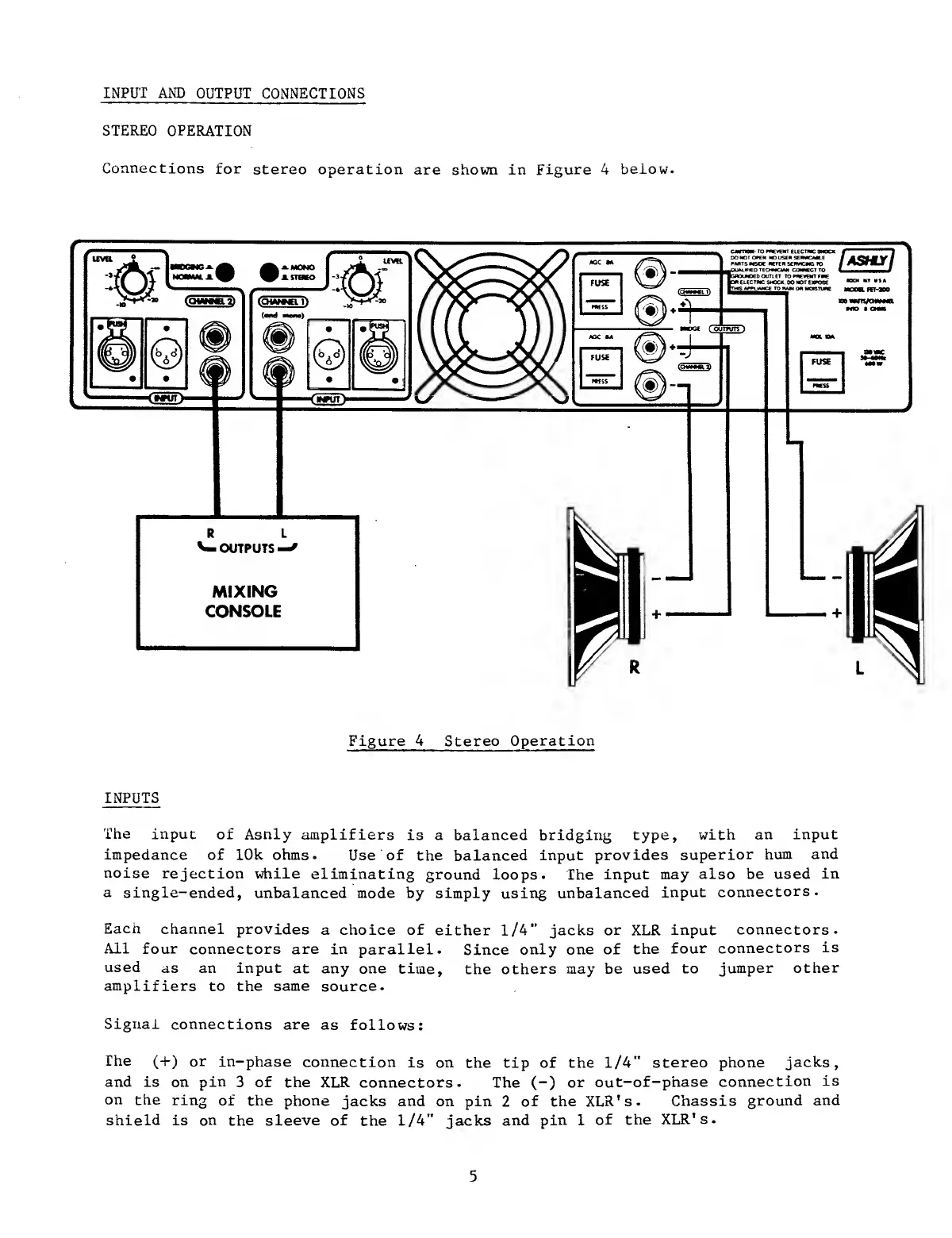

Connections
for
stereo
operation
are
shown
in
figure
4
below.
R
L
V-
OUTPUTS
^
MIXING
CONSOLE
+
+
Figure
4
Stereo
Operation
INPUTS
The
input
of
Asnly
amplifiers
is
a
balanced
bridging
type,
with
an
input
impedance
of
lOk
ohms.
Use
of
the
balanced
input
provides
superior
hum
and
noise
rejection
while
eliminating
ground
loops.
The
input
may
also
be
used
in
a
single-ended,
unbalanced
mode
by
simply
using
unbalanced
input
connectors.
Each
channel
provides
a
choice
of
either
1/4"
jacks
or
XLR
input
connectors.
All
four
connectors
are
in
parallel.
Since
only
one
of
the
four
connectors
is
used
as
an
input
at
any
one
time,
the
others
may
be
used
to
jumper
other
amplifiers
to
the
same
source.
Signal
connections
are
as
follows:
The
(+)
or
in-phase
connection
is
on
the
tip
of
the
1/4"
stereo
phone
jacks,
and
is
on
pin
3
of
the
XLR
connectors.
The
(-)
or
out-of-phase
connection
is
on
the
ring
of
the
phone
jacks
and
on
pin
2
of
the
XLR's.
Chassis
ground
and
shield
is
on
the
sleeve
of
the
1/4”
jacks
and
pin
1
of
the
XLR's.
5
