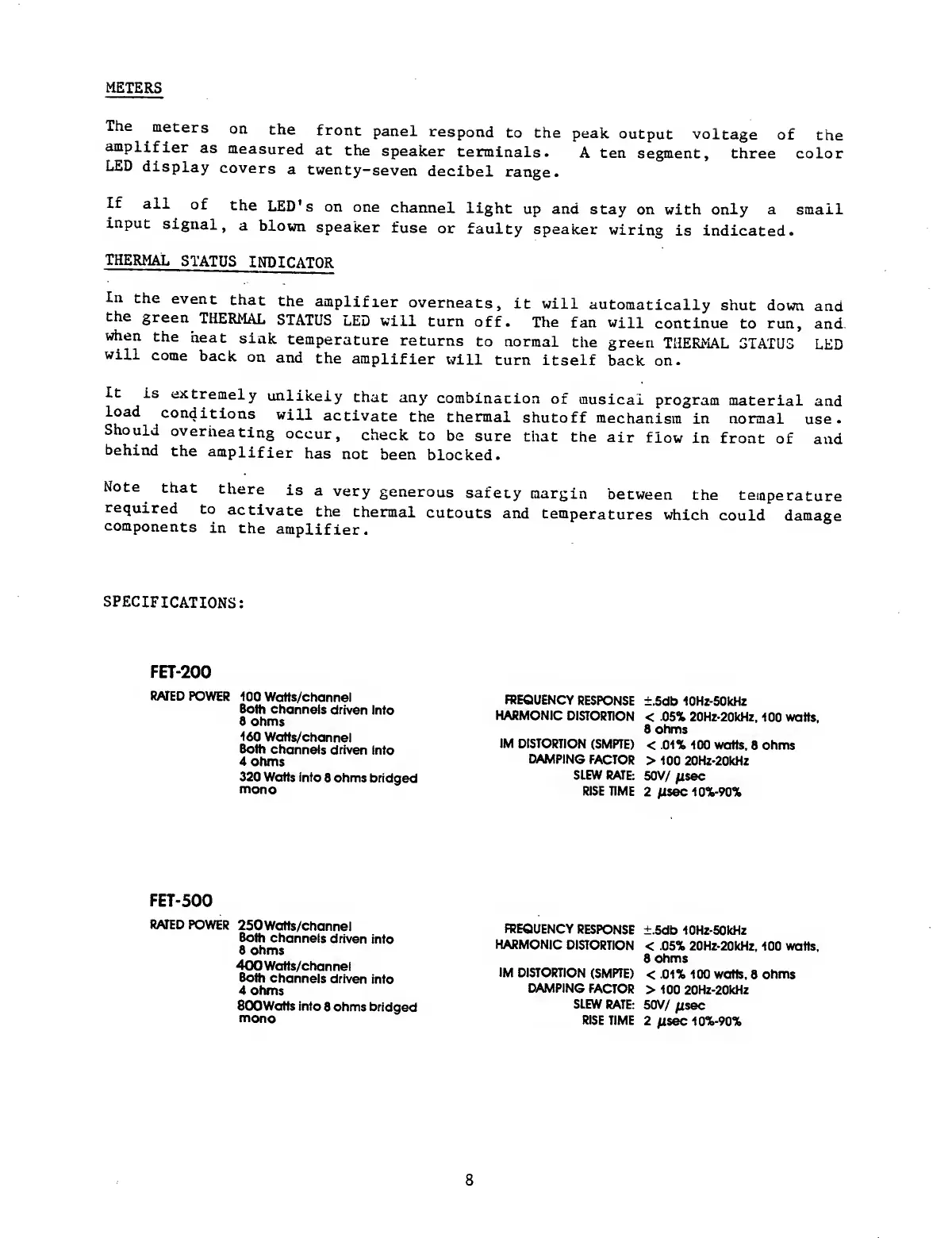

METERS
The meters on the front panel respond to the peak output voltage of the
amplifier as measured at the speaker terminals. A ten segment, three color
LED display covers a twenty-seven decibel range.
the LED’s on one channel light up and stay on with only a small
input signal, a blown speaker fuse or faulty speaker wiring is indicated.
THERMAL STATUS INDICATOR
In the event that the amplifier overneats, it will automatically shut down and
the green THERMAL STATUS LED will turn off. The fan will continue to run, and^
vdien the heat sink temperature returns to normal the green THERMAL STATUS LED
will come back on and the amplifier will turn itself back on.
It is extremely unlikely that any combination of musical program material and
load conditions will activate the thermal shutoff mechanism in normal use.
Should overheating occur, check to be sure that the air flow in front of and
behind the amplifier has not been blocked.
Note^ that there is a very generous safety margin between the temperature
required to activate the thermal cutouts and temperatures which could damage
components in the amplifier.
SPECIFICATIONS:
FET-200
RATED POWER 100 Wotts/channel
Both channels driven into
8 ohms
160 Wofts/chonnel
Both channels driven into
4 ohms
320 Watts into 8 ohms bridged
mono
FET-500
RATED POWER 250Wcitts/channel
Both chonneis driven into
8 ohms
400Watts/channel
Both channels driven into
4 ohms
SOOWotts into 8 ohms bridged
mono
FREQUENCY RESPONSE
HARMONIC DISTORTION
IM DISTORTION (SMPTE)
DAMPING FACTOR
±.5db lOHz-SOKHz
< .05% 20Hz-20kHz. 100 watts,
8 Ohms
< .01% 100 watts, 8 ohms
> 100 20Hz-20kHz
SLEW RATE: 50V/ fisec
RISE TIME 2 fisec 10%-90%
FREQUENCY RESPONSE ±.5db 10Hz-50kHz
HARMONIC DISTORTION
IM DISTORTION (SMPTE)
DAMPING FACTOR
SLEW RATE:
RISE TIME
< .05% 20Hz-20kHz, 100 watts,
8 Ohms
< .01% 100 watts, 6 ohms
> 100 20Hz-20kHz
50V/ fisec
2 fisec 10%-90%
8
