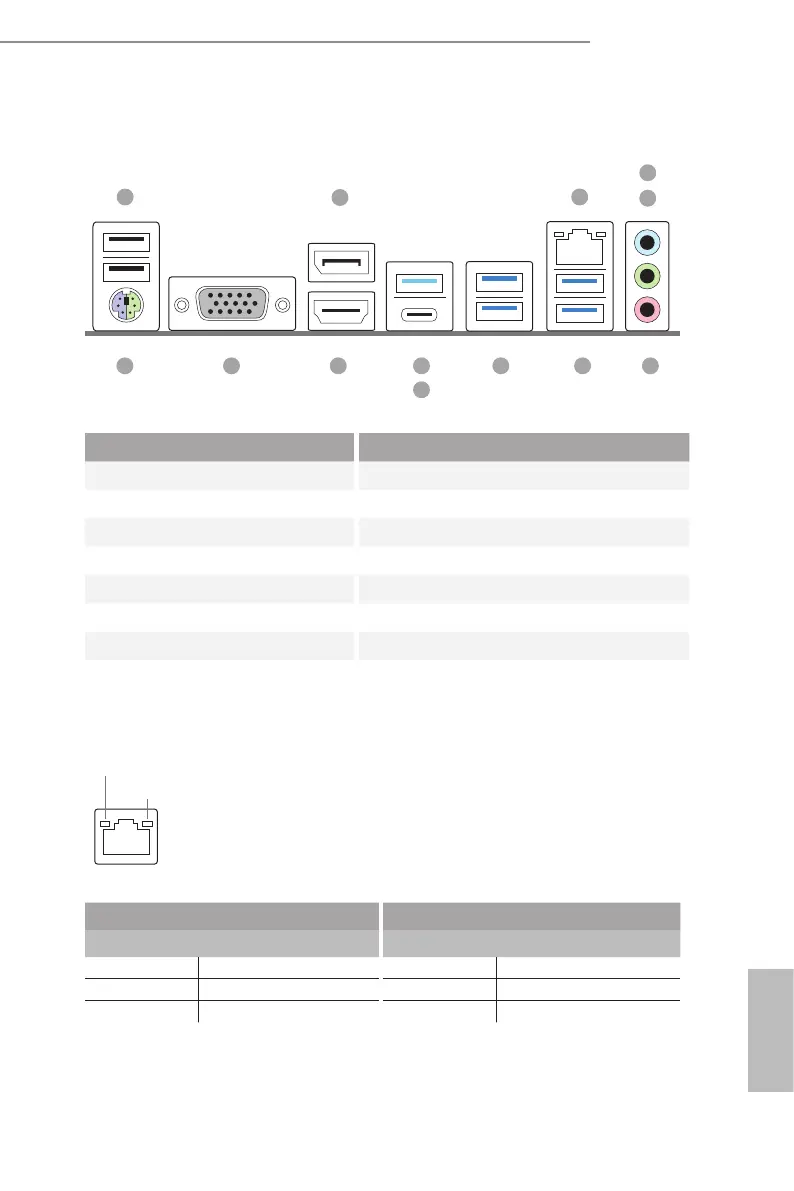

1.4 I/O Panel
1
8 7
9
1113
3
6
5
4
10
12
2
No. Description No. Description
1 USB 2.0 Ports (USB56) 8 USB 3.2 Gen1 Ports (USB3_12)
2 DisplayPort 1.2 9 USB 3.2 Gen2 Type-A Port (USB31_TA_1)
3 LAN RJ-45 Port* 10 USB 3.2 Gen2 Type-C Port (USB31_TC_1)
4 Line In (Light Blue)** 11 HDMI Port
5 Front Speaker (Lime)** 12 D-Sub Port
6 Microphone (Pink)** 13 PS/2 Mouse/Keyboard Port
7 USB 3.2 Gen1 Ports (USB3_34)
* ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection
ACT/LINK LED
SPEED LED
LAN Port
