B650E PG-ITX WiFi

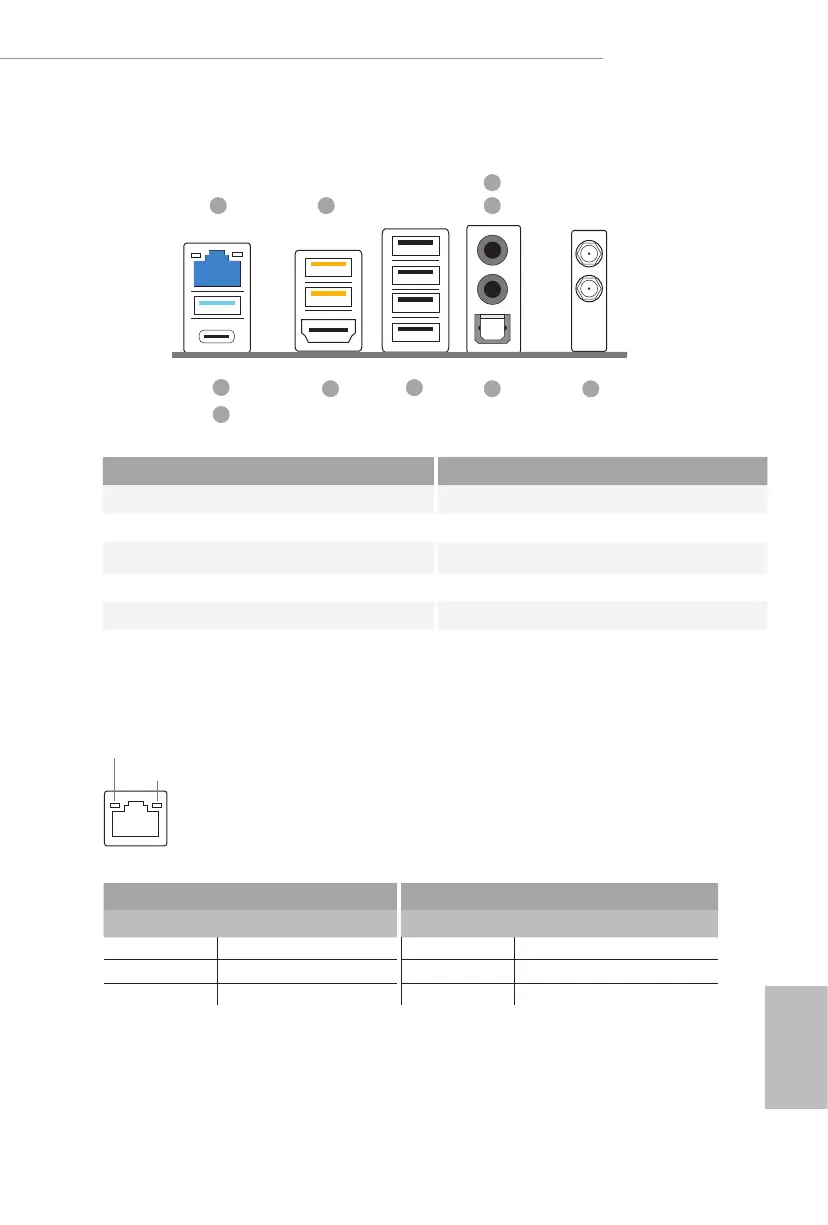

1.4 I/O Panel
No. Description No. Description
1 2.5G LAN RJ-45 Port* 6 Optical SPDIF Out Port
2 USB 3.2 Gen2 Type-A Ports (USB32_23)** 7 USB 2.0 Ports (USB_1234)
3 Microphone Input Jack*** 8 HDMI Port
4 Line Out Jack*** 9 USB 3.2 Gen2 Type-A Port (USB32_1)
5 Antenna Ports 10 USB 3.2 Gen2 Type-C Port (USB32_TC1)
ACT/LINK LED
SPEED LED
LAN Port
* ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10Mbps connection
Blinking Data Activity Orange 100Mbps/1Gbps connection
On Link Green 2.5Gbps connection
5
68
42
3
9
10
7
1
** USB32_23 are Lightning Gaming Ports.
