B650E PG-ITX WiFi

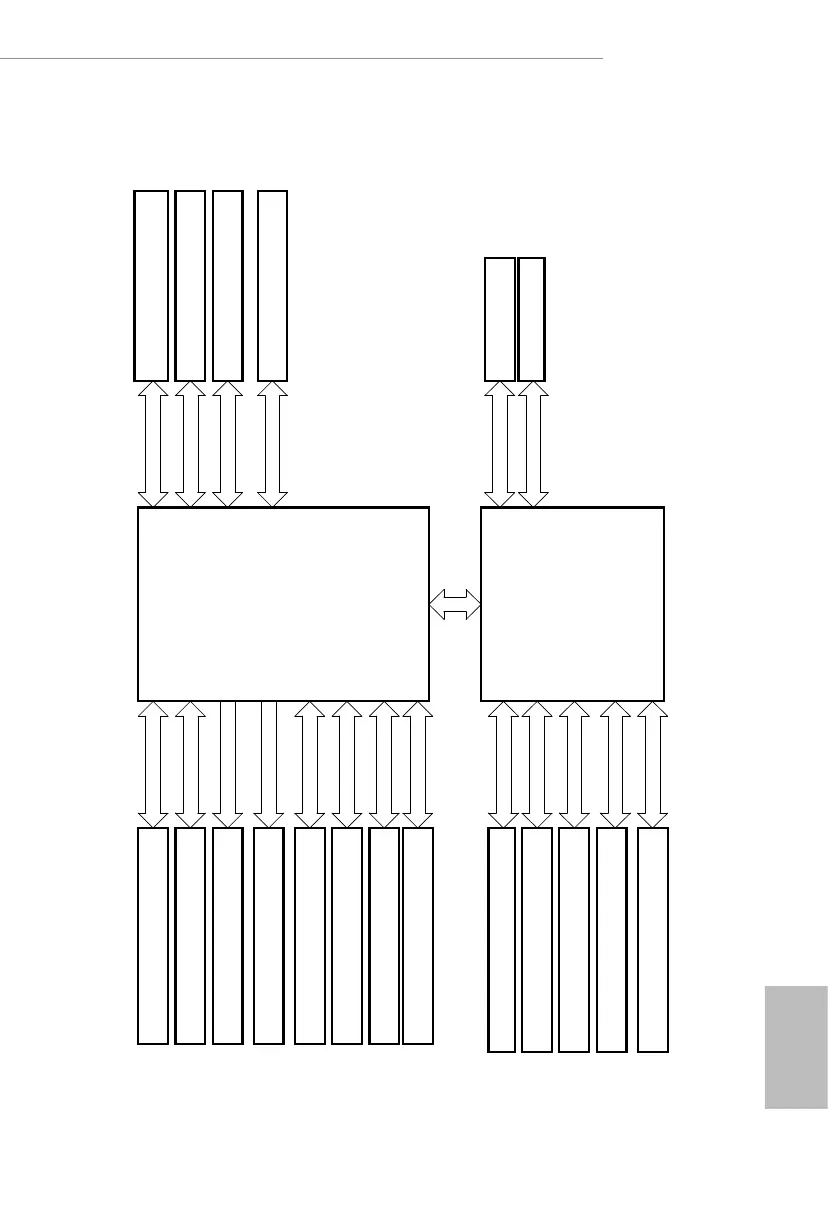

1.5 Block Diagram
Channel B Channel A
DDR5 Slot x1 DDR5 Slot x1
SPI eSPI
Flash ROM
PCIe x16 Gen5 Slot
PCIe Gen5 x4
M.2_1(PCIe x4)
PCIe x4 Gen4 BUS
AMD PROM21 Chipset
AMD AM5 Processor
LGA1718
20Gb/s
DP0
eDP Port
Front USB 2.0 2 ports
Rear USB 3.2 Gen2 2 ports
Front USB 3.2 Gen2x2 Type C Front USB 3.2 Gen1 2 ports
USB3.2 G1
x1
WiFi key E
x1
Intel Killer E3100G
USB3.2 G2x2
5Gb/s
480Mb/sUSB2.0
PCIe GEN3 PCIe GEN3
USB3.2 G2 10Gb/s
DP2
HDMI Port
PCIe Gen4 x4
M.2_2(PCIe x4)
PCIe Gen5 x16
SIO NCT6686D
AZ ( HD Audio )
Audio Codec ALC1220 2+1
Rear USB 3.2 Gen2 Type C
USB3.2 G2 10Gb/s
Rear USB 2.0 4 ports
480Mb/sUSB2.0
10Gb/sUSB3.2 G2
Rear USB 3.2 Gen2 1 port
