2.13 M.2 SSD Module Installation Guide (M2_1)
e M.2 is a small size and versatile card edge connector that aims to replace mPCIe and
mSATA. e Blazing M.2 Socket (M2_1, Key M) supports type 2280 PCIe Gen5x4 (128
Gb/s) mode.
is motherboard comes with ASRock Blazing M.2 Gen5 Fan Heatsink (pre-installed
on M2_1 socket), which is a M.2 SSD heatsink with fan that enables PCIe Gen5 SSD to
achieve optimal heat dissipation.
ASRock Blazing M.2 Gen5 Fan Heatsink Dimension: 94.5*23.0*35.3mm / Fan Speed:
12000 rpm.
Installing the M.2 SSD Module

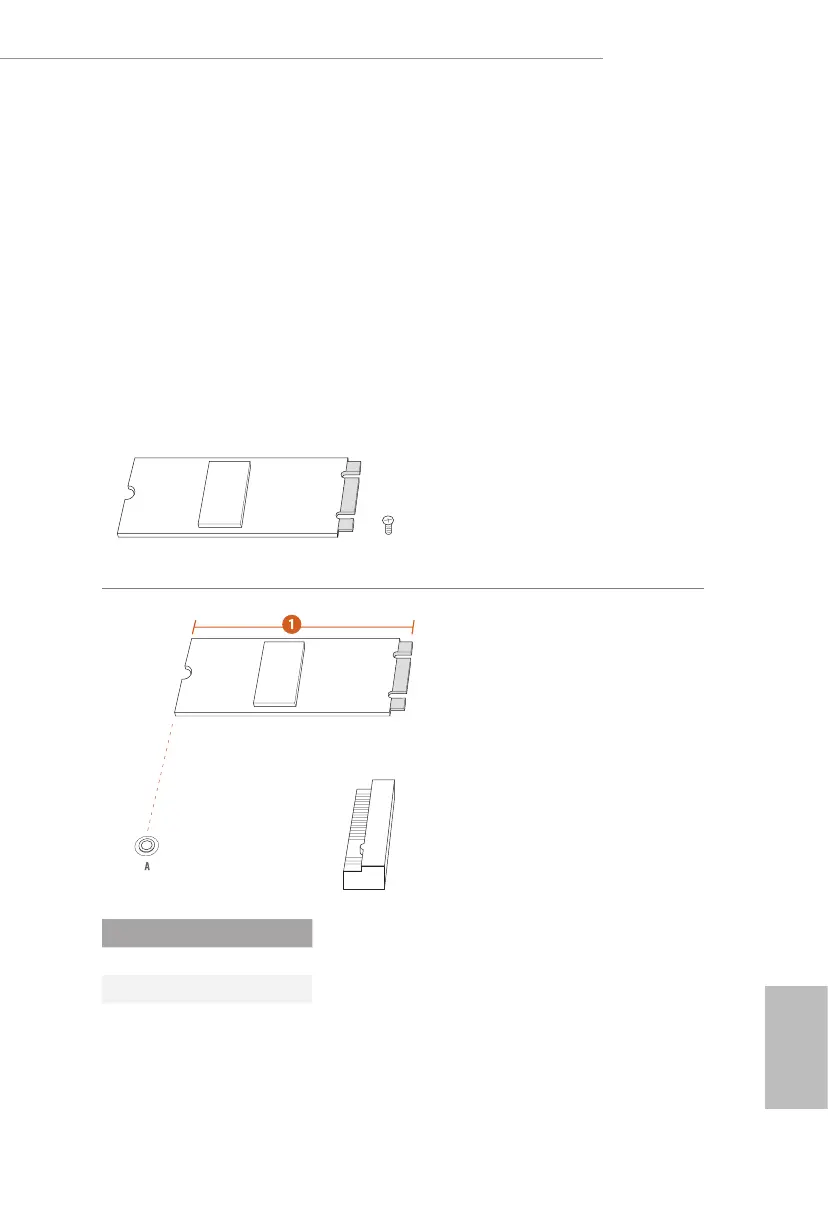

Step 1
Prepare a M.2 SSD module and the
screw.
Step 2
Depending on the PCB type and
length of your M.2 SSD module, nd
the corresponding nut location to be
used.
No. 1
Nut Location A
PCB Length 8cm
Module Type Type 2280
To Next Page
