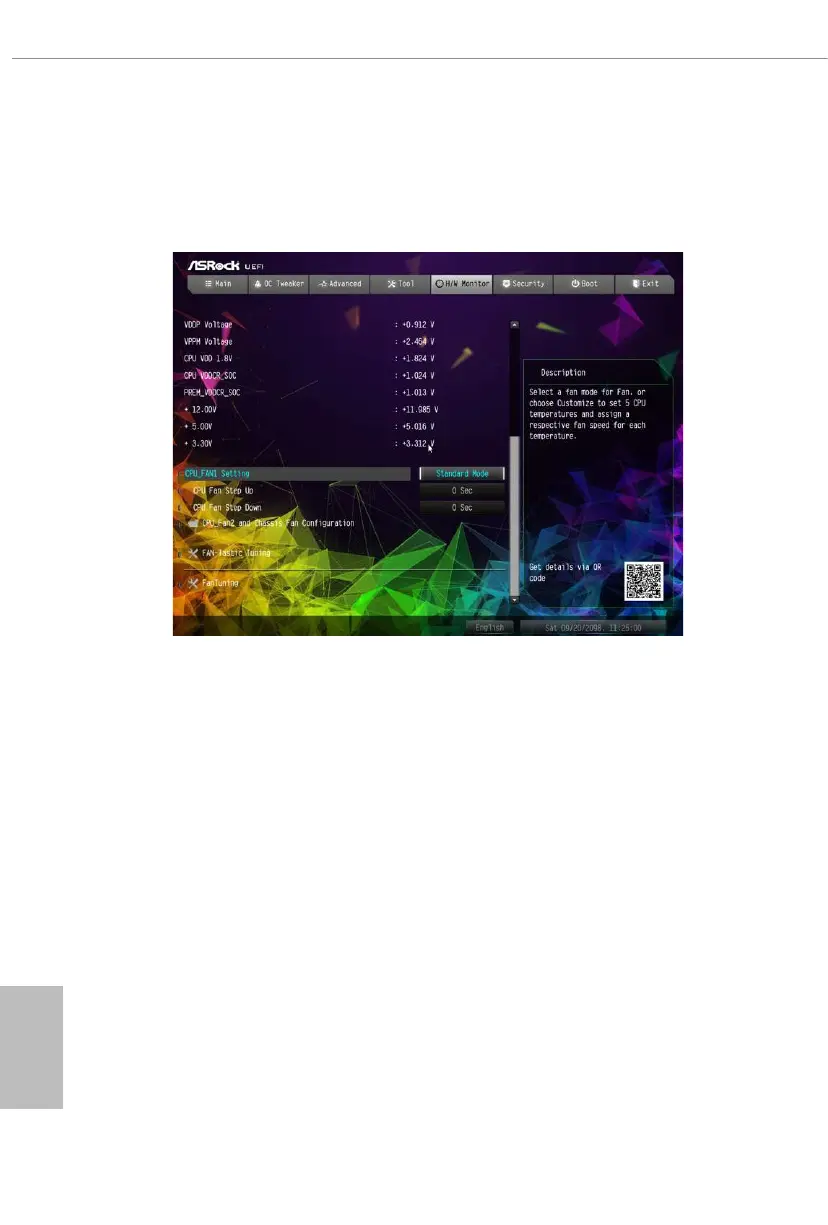

4.6 Hardware Health Event Monitoring Screen
is section allows you to monitor the status of the hardware on your system,
including the parameters of the CPU temperature, motherboard temperature, fan
speed and voltage.
CPU_FAN1 Setting
Select a fan mode for CPU Fan 1, or choose Customize to set 5 CPU temperatures
and assign a respective fan speed for each temperature.
CPU Fan 1 Step Up
Set the value of CPU Fan Step Up.
CPU Fan 1 Step Down
Set the value of CPU Fan Step Down.
CPU_FAN2 and Chassis Fan Conguration
CPU_FAN2 / WP_3A Switch
Select CPU Water Pump mode.
CPU Fan 2 Control Mode
Select PWM mode or DC mode for CPU Fan 2.

ASROCK X570 Taichi Specifications

General

Processor socket	Socket AM4
Processor manufacturer	AMD
Compatible processor series	AMD Ryzen 3 2nd Gen, AMD Ryzen 3 3rd Gen, AMD Ryzen 5 2nd Gen, AMD Ryzen 5 3rd Gen, AMD Ryzen 7 2nd Gen, AMD Ryzen 7 3rd Gen, AMD Ryzen 9 3rd Gen
Audio chip	Realtek ALC1220
Certification	FCC, CE, ErP/EuP ready
Component for	PC
Motherboard chipset	AMD X570
Audio output channels	7.1 channels
Motherboard form factor	ATX
Windows operating systems supported	Windows 10 x64
ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR4-SDRAM
Maximum internal memory	128 GB
Supported memory clock speeds	2133, 2400, 2667, 2933, 3200, 3466, 4133, 4200, 4266, 4300, 4400 MHz
BIOS type	UEFI AMI
ACPI version	5.1
BIOS memory size	256 Mbit
System Management BIOS (SMBIOS) version	2.3
Graphics card	Radeon Vega
DirectX version	12.0
Maximum resolution	4096 x 2160 pixels
Parallel processing technology support	-
PS/2 ports quantity	1
WiFi-AP antenna jack	2
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	6
LAN controller	Intel® I211-AT
Wi-Fi standards	802.11a, 802.11ad, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Bluetooth version	5.0
Ethernet interface type	Gigabit Ethernet
Number of M.2 (M) slots	3
Number of SATA III connectors	8
Bundled software	Software - ASRock Polychrome SYNC - ASRock XFast LAN UEFI - ASRock Full HD UEFI - ASRock Instant Flash - ASRock Easy RAID Installer
Supported storage drive interfaces	PCI Express 3.0, SATA III
Harmonized System (HS) code	84733020
Weight	1500 g

Weight and Dimensions

Depth	244 mm
Width	305 mm
Height	350 mm
