ASROCK X570 Taichi User Manual

English
40
BIOS Flashback Button
(BIOS_FB1)
(see p.10, No. 1)
BIOS Flashback Switch allows users
to ash the BIOS.
ASRock BIOS Flashback feature allows you to update BIOS without powering on the system, even
without CPU.
To use the USB BIOS Flashback function, Please follow the steps below.
1. Download the latest BIOS le from ASRock's website : http://www.asrock.com.
2. Copy the BIOS le to your USB ash drive. Please make sure the le system of
your USB ash drive must be FAT32.
3. Extract BIOS le from the zip le.
4. Rename the le to “creative.rom” and save it to the root directory of X: USB ash drive.
5. Plug the 24 pin power connector to the motherboard. en turn on the power supply's AC
switch.
*ere is no need to power on the system.
6. en plug your USB drive to the USB BIOS Flashback port.
7. Press the BIOS Flashback Switch for about three seconds. en the LED starts to blink.
8. Wait until the LED stops blinking, indicating that BIOS ashing has been completed.
*If the LED light turns solid green, this means that the BIOS Flashback is not
operating properly. Please make sure that you plug the USB drive to the USB BIOS Flashback
port.

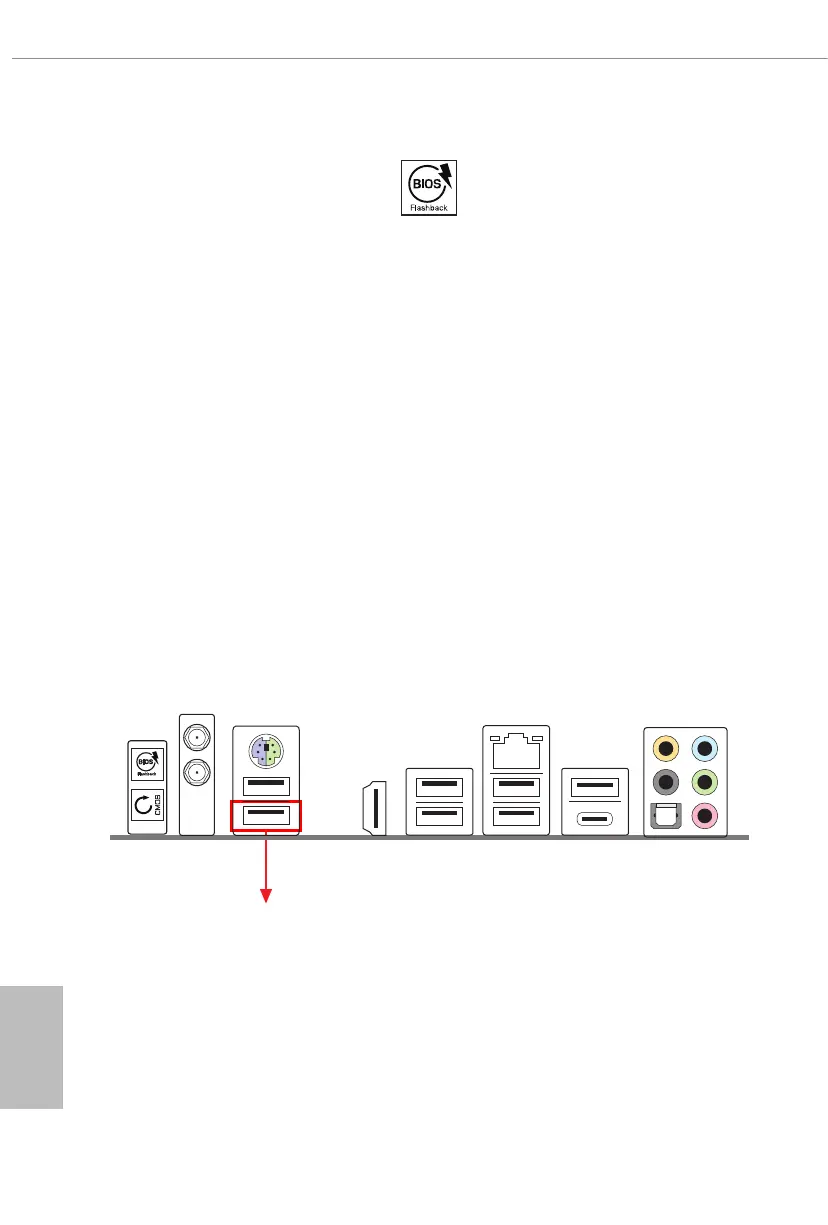

USB BIOS Flashback port

ASROCK X570 Taichi Specifications

General

Processor socket	Socket AM4
Processor manufacturer	AMD
Compatible processor series	AMD Ryzen 3 2nd Gen, AMD Ryzen 3 3rd Gen, AMD Ryzen 5 2nd Gen, AMD Ryzen 5 3rd Gen, AMD Ryzen 7 2nd Gen, AMD Ryzen 7 3rd Gen, AMD Ryzen 9 3rd Gen
Audio chip	Realtek ALC1220
Certification	FCC, CE, ErP/EuP ready
Component for	PC
Motherboard chipset	AMD X570
Audio output channels	7.1 channels
Motherboard form factor	ATX
Windows operating systems supported	Windows 10 x64
ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR4-SDRAM
Maximum internal memory	128 GB
Supported memory clock speeds	2133, 2400, 2667, 2933, 3200, 3466, 4133, 4200, 4266, 4300, 4400 MHz
BIOS type	UEFI AMI
ACPI version	5.1
BIOS memory size	256 Mbit
System Management BIOS (SMBIOS) version	2.3
Graphics card	Radeon Vega
DirectX version	12.0
Maximum resolution	4096 x 2160 pixels
Parallel processing technology support	-
PS/2 ports quantity	1
WiFi-AP antenna jack	2
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	6
LAN controller	Intel® I211-AT
Wi-Fi standards	802.11a, 802.11ad, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Bluetooth version	5.0
Ethernet interface type	Gigabit Ethernet
Number of M.2 (M) slots	3
Number of SATA III connectors	8
Bundled software	Software - ASRock Polychrome SYNC - ASRock XFast LAN UEFI - ASRock Full HD UEFI - ASRock Instant Flash - ASRock Easy RAID Installer
Supported storage drive interfaces	PCI Express 3.0, SATA III
Harmonized System (HS) code	84733020
Weight	1500 g

Weight and Dimensions

Depth	244 mm
Width	305 mm
Height	350 mm
