2. Knowing the Parts
Top Side

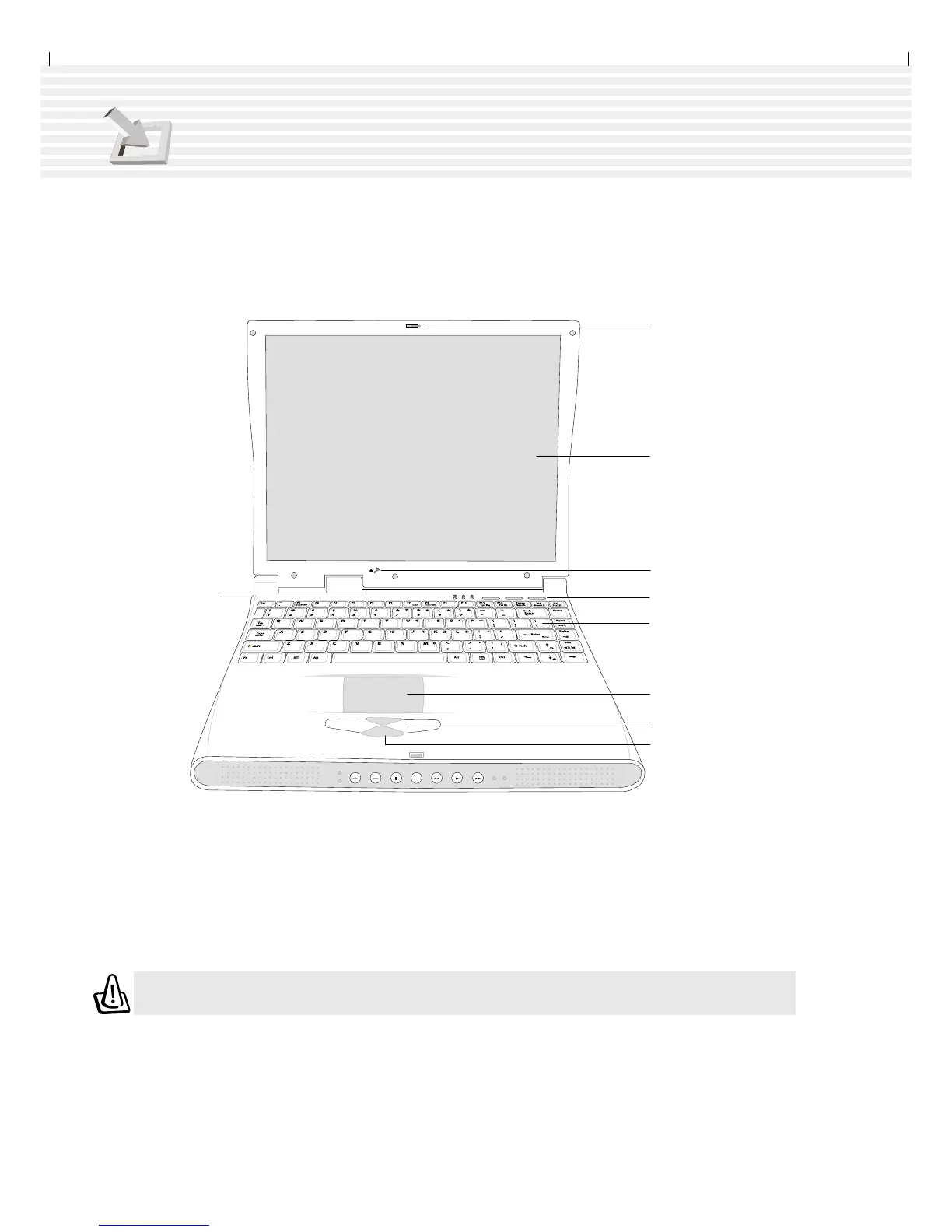

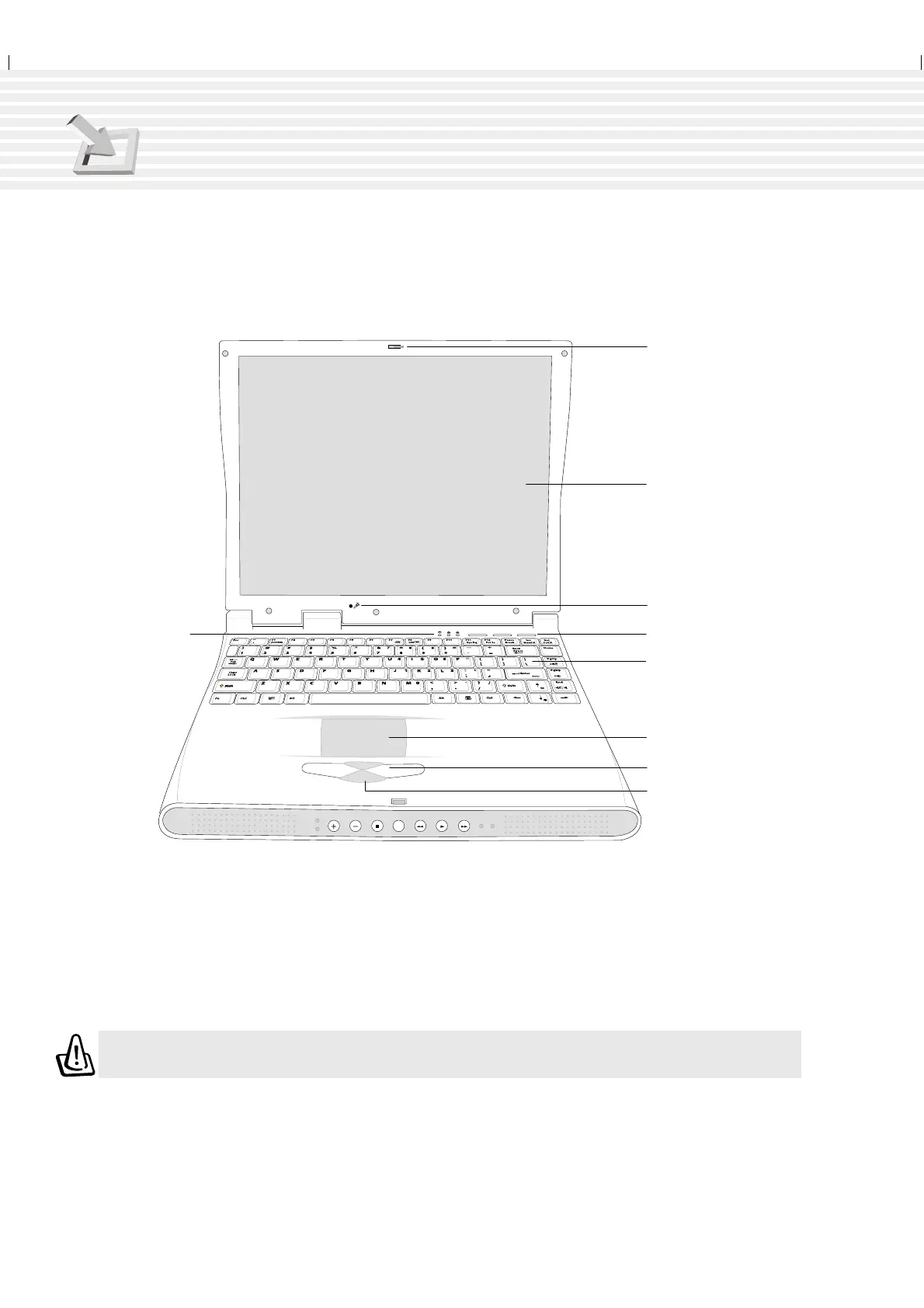

Refer to the diagram below to identify the components on the top side of the Notebook PC.
Opening the Display Panel
One spring-loaded latch on the front of the Notebook PC locks the display panel in the closed position
when the Notebook PC is not in use. To open the display panel, slide the latch to the left with your
thumb and lift up on the display panel at the same time. This design allows a single hand to be used
when opening the display panel. Slowly tilt the display panel forward or backward to a comfortable
viewing angle.
WARNING! When opening, do not force the display panel down to the table or else the
hinges may break! Never lift the Notebook PC by the display panel!
Display Panel
Touchpad
Keyboard
Touchpad Buttons
Microphone
Instant Launch Keys
CD
Display Panel Latch
Scroll Buttons
Status LEDs
