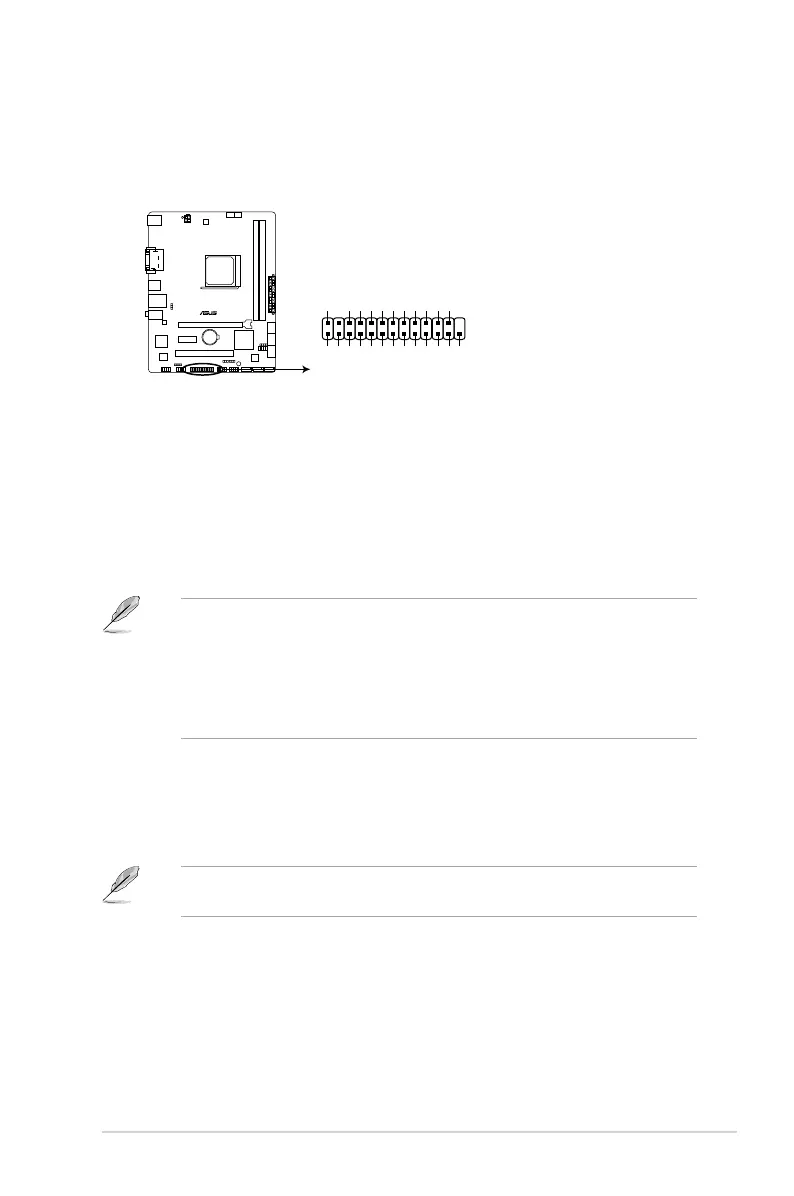

10. LPT connector (26-1 pin LPT)
The LPT (Line Printing Terminal) connector supports devices such as a printer. LPT
standardizes as IEEE 1284, which is the parallel port interface on IBM PC-compatible
computers.
A55BM-E
A55BM-E Parallel Port Connector
PIN 1
LPT
STB#
PD0
PD1
PD2
PD3
PD4 PD5 PD6 PD7
ACK#
BUSY
PE
SLCT
AFD ERR#
INIT#
SLIN#
GND GND GND
GND GND GND
GND
GND
1.8 Software support
1.8.1 Installing an operating system
This motherboard supports Windows
®
XP / Windows
®
Vista / 64-bit Windows
®
Vista
/ Windows
®
7 / 64-bit Windows
®
7 / Windows
®
8 /64-bit Windows
®
8 / Windows
®
8.1 /
64-bit Windows
®
8.1 Operating Systems (OS). Always install the latest OS version and
corresponding updates to maximize the features of your hardware.
• Motherboard settings and hardware options vary. Refer to your OS documentation for
detailed information.
• Ensure that you install Windows
®
XP Service Pack 3 or later versions before installing
the drivers for better compatibility and system stability.
• Only motherboards installed with an AMD Trinity APU support Windows
®
Vista / 64bit
Windows
®
Vista operaing system.
1.8.2 Support DVD information
The Support DVD that comes with the motherboard package contains the drivers, software
applications, and utilities that you can install to avail all motherboard features.
The contents of the Support DVD are subject to change at any time without notice. Visit the
ASUS website at www.asus.com for updates.

Asus A55BM-E Specifications

General

Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Supported memory types	DDR3-SDRAM
Maximum internal memory	32 GB
Supported memory clock speeds	1333, 1600, 1866, 2133 MHz
Processor socket	Socket FM2+
Processor manufacturer	AMD
Compatible processor series	AMD A
Maximum number of SMP processors	1
USB 2.0 connectors	2
Number of SATA II connectors	6
USB 3.2 Gen 1 (3.1 Gen 1) connectors	0
DVI-D ports quantity	-
USB 2.0 ports quantity	4
Cooling type	Passive
Component for	PC
Power source type	ATX
Motherboard chipset	AMD A55 FCH
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Windows operating systems supported	Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Professional
RAID levels	0, 1, 10, JBOD
Supported storage drive interfaces	SATA, SATA II
Maximum resolution	2560 x 1600 pixels
Maximum graphics card memory	2048 MB
Cables included	SATA
LAN controller	Realtek RTL8111G
Ethernet interface type	Gigabit Ethernet
BIOS type	UEFI AMI
ACPI version	4.0a
BIOS memory size	64 Mbit

Weight and Dimensions

Depth	183 mm
Width	231 mm
