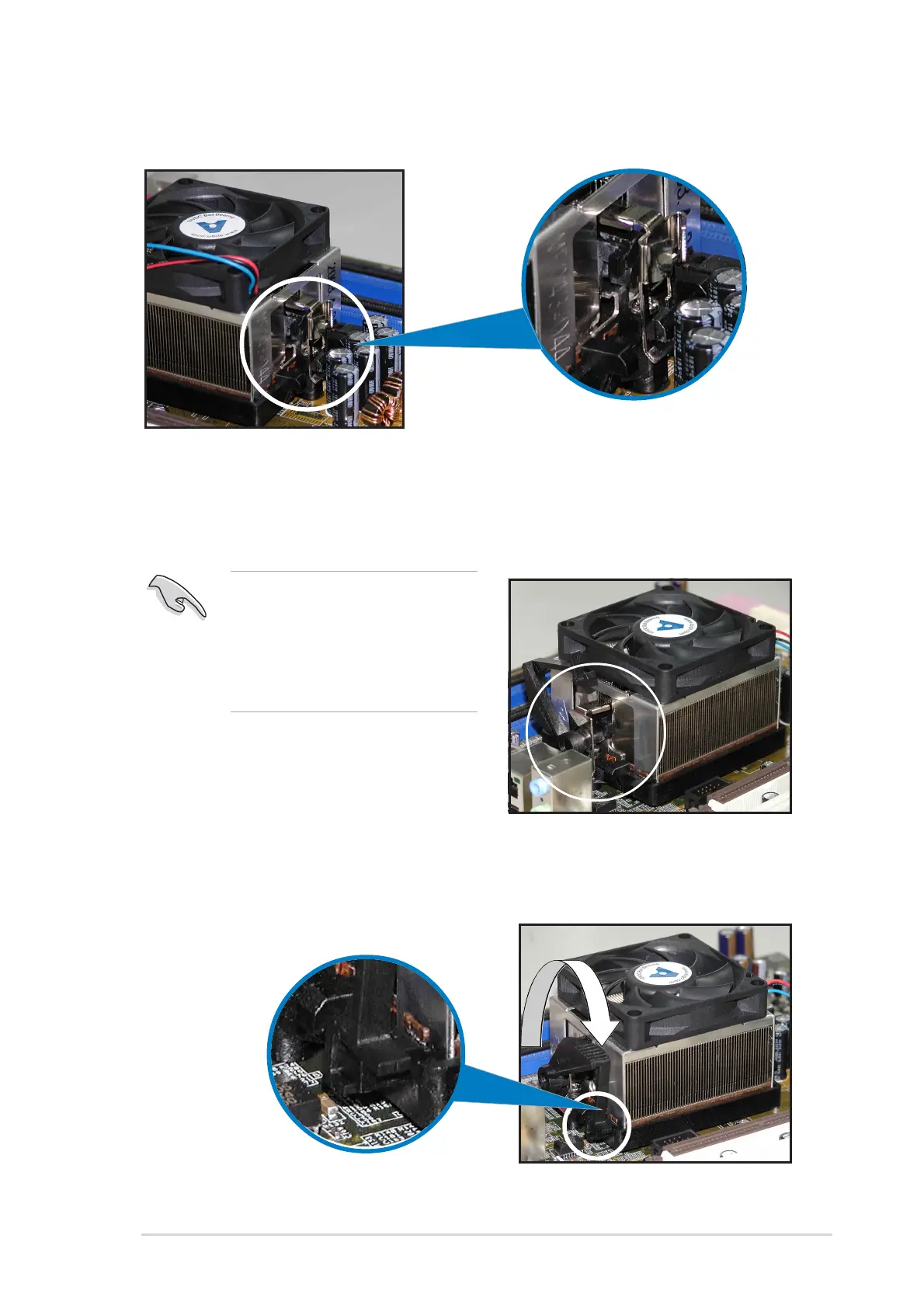

2. Attach one end of the retention bracket to the retention module
base.
3. Align the other end of the retention bracket (near the retention
bracket lock) to the retention module base. A clicking sound denotes
that the retention bracket is in place.
4. Push down the retention bracket lock on the retention mechanism to
secure the heatsink and fan to the module base.
Make sure that the fan and
heatsink assembly perfectly
fits the retention mechanism
module base, otherwise you
cannot snap the retention
bracket in place.

Asus A8N-SLI DLX Specifications

General

Chipset	NVIDIA nForce4 SLI
Socket	Socket 939
Form Factor	ATX
Memory Type	DDR
Memory Slots	4
Maximum Memory	4 GB
PCI Express x16 Slots	2
PCI Slots	3
SATA Ports	4
IDE Ports	2
LAN	Gigabit Ethernet
Expansion Slots	2 x PCIe x16, 3 x PCI
USB Ports	10 x USB 2.0
