ASUS AM1M-A
1-13
1.7 Connectors

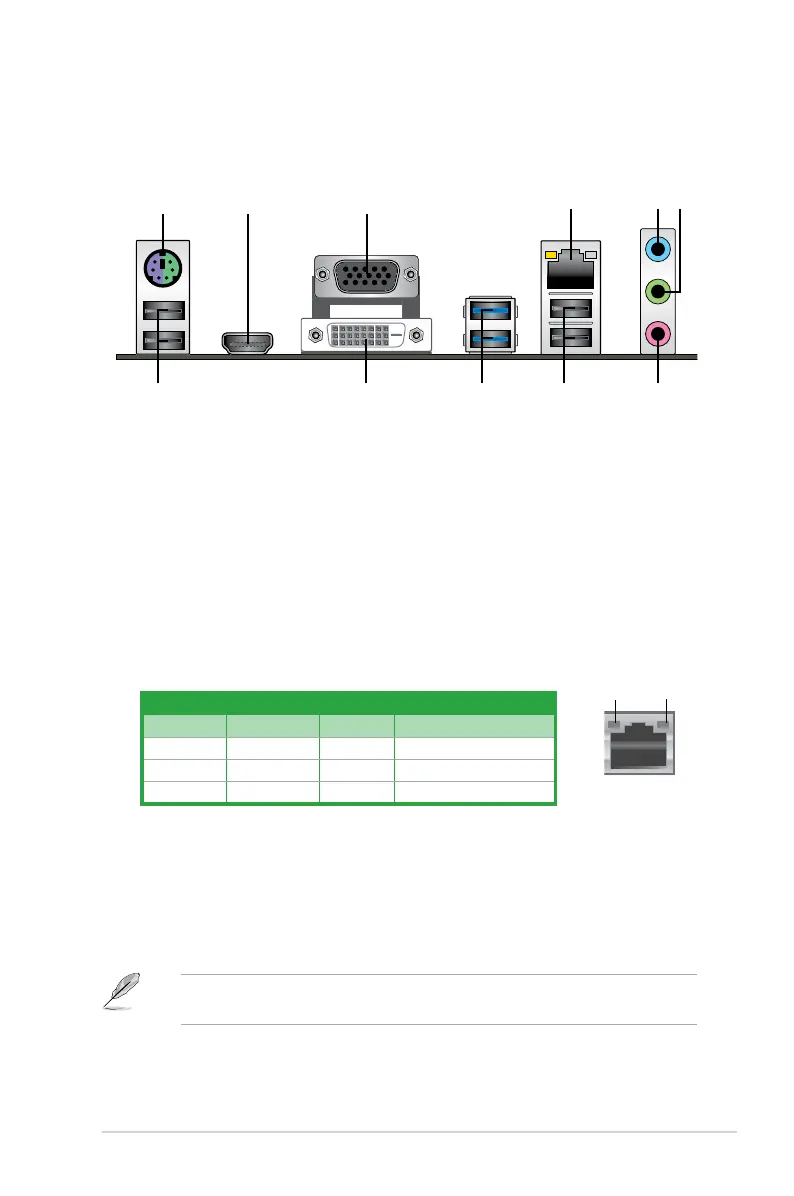

1.7.1 Rear panel connectors
Activity/Link LED Speed LED
Status Description Status Description
OFF No link OFF 10Mbps connection
ORANGE Linked ORANGE 100Mbps connection
BLINKING Data activity GREEN 1Gbps connection
LAN port
SPEED
LED
ACT/LINK
LED
5. Line In port (light blue). This port connects to the tape, CD, DVD player, or other
audio sources.
6. Line Out port (lime).
This port connects to a headphone or a speaker. In the 4.1, 5.1,
and 7.1-channel congurations, the function of this port becomes Front Speaker Out.
7. Microphone port (pink).
This port connects to a microphone.
Refer to the audio conguration table on the next page for the function of the audio ports in
2.1, 4.1, 5.1, or 7.1-channel conguration.
3
5 64
79 8
2
10
1
8
1. PS/2 Keyboard/Mouse Combo port. This port is for a PS/2 keyboard/mouse.
2. HDMI port.
This port is for a High-Denition Multimedia Interface (HDMI) connector,
and is HDCP compliant allowing playback of HD DVD, Blu-ray, and other protected
content.
3. Video Graphics Adapter (VGA) port.
This 15-pin port is for a VGA monitor or other
VGA-compatible devices.
4. LAN (RJ-45) port.
This port allows Gigabit connection to a Local Area Network (LAN)
through a network hub.
LAN port LED indications

Asus AM1M-A Specifications

General

Non-ECC	Yes
Flash memory	64 MB
Memory channels	Single-channel
Memory slots type	DIMM
Number of memory slots	2
Supported memory types	DDR3-SDRAM
Maximum internal memory	32 GB
Supported memory clock speeds	1333, 1600, 1866 MHz
Supported memory module capacities	16GB, 4GB, 8GB
Processor socket	Socket AM1
Processor manufacturer	AMD
Compatible processor series	AMD Athlon, AMD Sempron
Maximum number of SMP processors	1
Number of Parallel ATA connectors	0
Supported storage drive interfaces	SATA III
USB 2.0 ports quantity	4
LAN controller	Realtek 8111GR
Ethernet interface type	Gigabit Ethernet
Component for	PC
Power source type	ATX
Motherboard chipset	-
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Windows operating systems supported	Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Parallel processing technology support	Not supported
BIOS type	UEFI AMI
ACPI version	2.0a

Weight and Dimensions

Depth	170 mm
Width	226 mm
