3. Serial ATA 6.0 Gb/s connectors (7-pin SATA6G 1~2)
These connectors are for the Serial ATA 6.0 Gb/s signal cables for Serial ATA hard disk
drives and optical disc drives.
• These connectors are set to AHCI mode by default. If you intend to create a Serial ATA
RAID set using these connectors, set the type of the SATA connectors in the BIOS to
[RAID]. See section 2.6.2 SATA Conguration for details.
• You must install Windows
®
XP Service Pack 3 or later version before using Serial ATA
hard disk drives.
• When using hot-plug and NCQ, set the type of the SATA connectors in the BIOS to
[AHCI]. See section 2.6.2 SATA Conguration for details.
4. TPM connector (20-1 pin TPM)
This connector supports a Trusted Platform Module (TPM) system, which can securely
store keys, digital certicates, passwords, and data. A TPM system also helps enhance
network security, protects digital identities, and ensures platform integrity.
SATA6G_1
GND
RSATA_TXP1
RSATA_TXN1
GND
RSATA_RXN1
RSATA_RXP1
GND
SATA6G_2
GND
RSATA_TXP2
RSATA_TXN2
GND
RSATA_RXN2
RSATA_RXP2
GND
AM1M-A

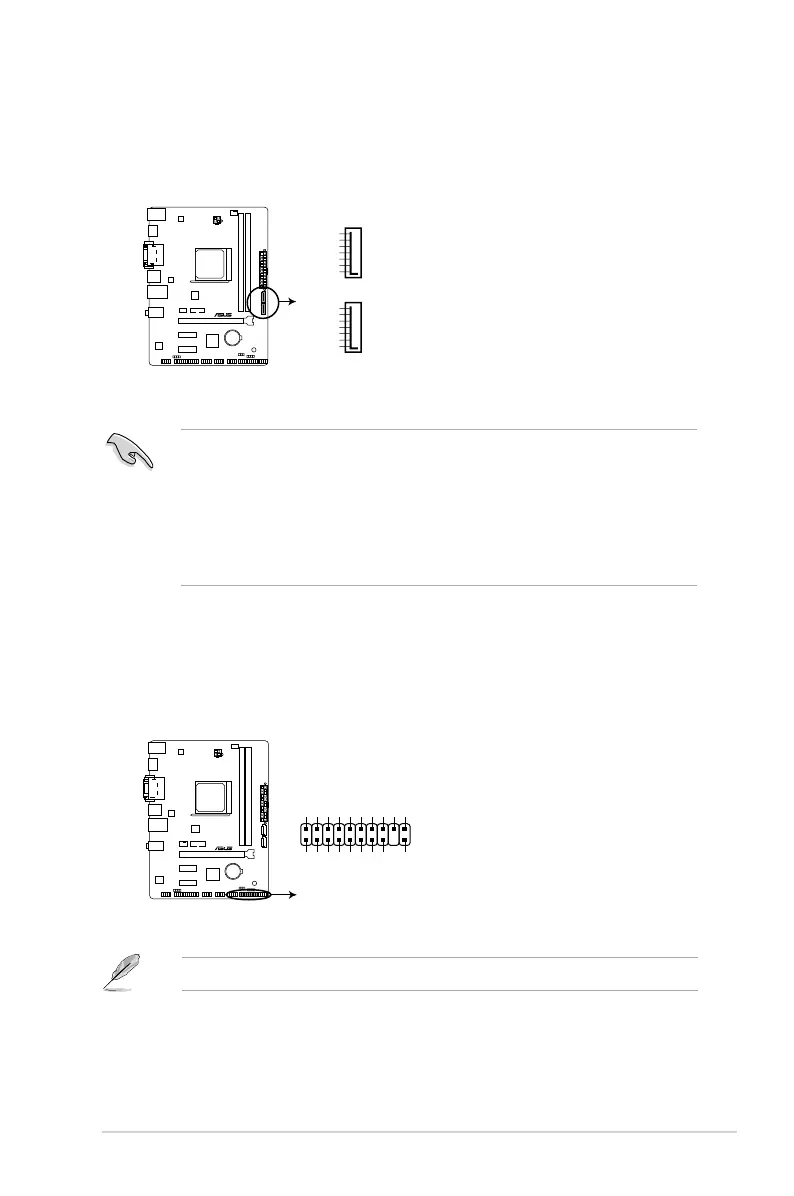

AM1M-A SATA 6.0Gb/s connectors
The TPM module is purchased separately.
AM1M-A
AM1M-A TPM connector
PIN 1
TPM
SB_SUS_STAT GND +3VSB SMBSCL LAD0 +3V LAD3 PCIRST# FRAME PCICLK
RESET
GPIO
SERIRQ
SMBSDA
GND
LAD1 LAD2
PWROWN
GND

Asus AM1M-A Specifications

General

Non-ECC	Yes
Flash memory	64 MB
Memory channels	Single-channel
Memory slots type	DIMM
Number of memory slots	2
Supported memory types	DDR3-SDRAM
Maximum internal memory	32 GB
Supported memory clock speeds	1333, 1600, 1866 MHz
Supported memory module capacities	16GB, 4GB, 8GB
Processor socket	Socket AM1
Processor manufacturer	AMD
Compatible processor series	AMD Athlon, AMD Sempron
Maximum number of SMP processors	1
Number of Parallel ATA connectors	0
Supported storage drive interfaces	SATA III
USB 2.0 ports quantity	4
LAN controller	Realtek 8111GR
Ethernet interface type	Gigabit Ethernet
Component for	PC
Power source type	ATX
Motherboard chipset	-
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Windows operating systems supported	Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Parallel processing technology support	Not supported
BIOS type	UEFI AMI
ACPI version	2.0a

Weight and Dimensions

Depth	170 mm
Width	226 mm
