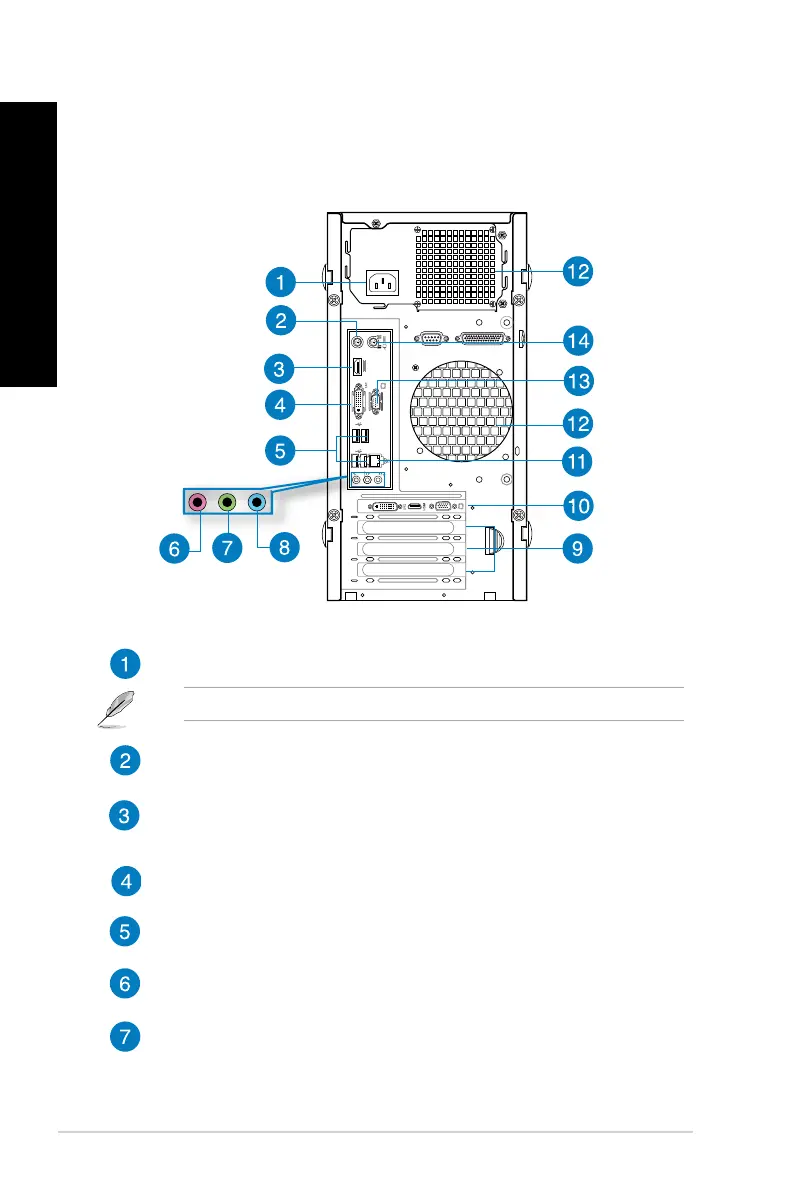

Rear panel

BM1AD / BM6AD (MD310)

Power connector. Plug the power cord to this connector.

RATING: 115-230Vac, 6.0A/3.0A, 50/60Hz

PS/2 keyboard port (purple). This port is for a PS/2 keyboard.

HDMI port. This port is for a High-Denition Multimedia Interface (HDMI)

connector, and is HDCP compliant allowing playback of HD DVD, Blu-ray, and

other protected content.

DVI-I port. This port is for any DVI-I compatible device and are HDCP compliant,

allowing playback of HD DVD, Blu-Ray and other protected content.

USB 2.0 ports. These Universal Serial Bus 2.0 (USB 2.0) ports connect to USB

2.0 devices such as a mouse, printer, scanner, camera, PDA, and others.

Microphone port (pink). This port connects to a microphone.

Line Out port (lime). This port connects to a headphone or speaker. In a 4.1, 5.1,

or 7.1-channel conguration, the function of this port becomes Front Speaker Out.

16 Chapter 1: Getting started
