30
DSL-N12E Chapter 4: Conguring via the web GUI
Conguring the wide area network (WAN) settings
The WAN page allows you to congure your wide area network (WAN) settings.
To congure the WAN settings:
Click Network > WAN tab > WAN.
In the Default Route Selection eld, select Auto or Specied.
In the VPI eld, key in the virtual path values for the asynchronous transfer
mode ranging from 0 to 255.
In the VCI eld, key in the virtual channel values for the asynchronous
transfer mode ranging from 32 to 65535.
In the Encapsulation dropdown list, select LLC or VC-Mux.
In the Channel Mode dropdown list, select 1483 Bridged, 1483 MER, PPPoE,
PPPoA, 1483 Routed, or IPoA.
Tick Enable NAPT to enable Network Address Port Translation function. Tick
Enable IGMP to enable Internet Group Management Protocol function.
1.
2.
3.
4.
5.
6.
7.
Conguring the WAN channel

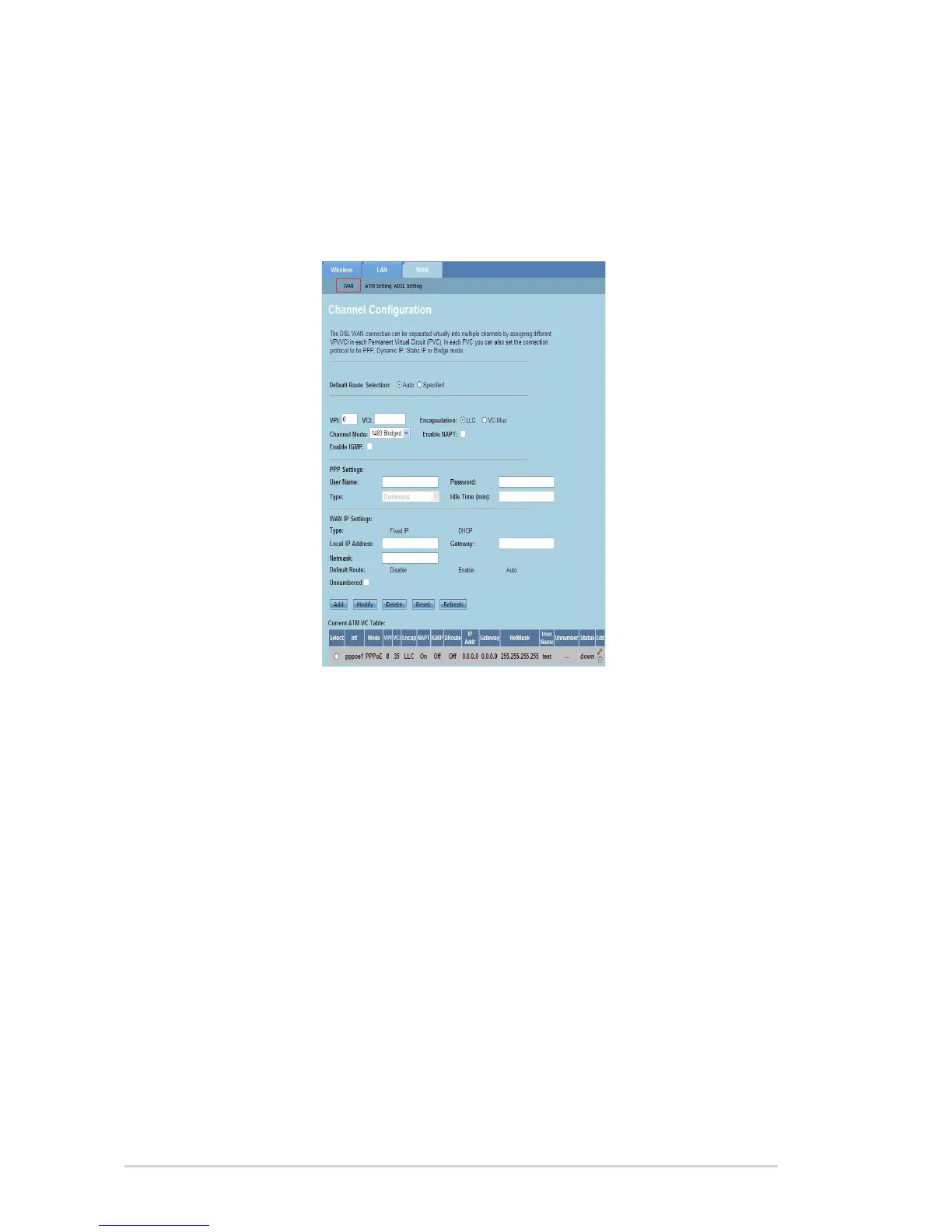

The Channel Conguration page allows you to congure the Internet settings in
WAN channel.
To congure the PPP settings:
In the User Name and Password elds, key in a user name and password
provided by your ISP.
In the Type dropdown list, you can select Continuous, Connect on
Demand, or Manual.
In selecting the Connect on Demand type, key in the idle amount time in Idle
Time (min) eld to automatically disconnect the PPPoE connection.
1.
2.
3.
