Asus DSL-N55U User Manual

24

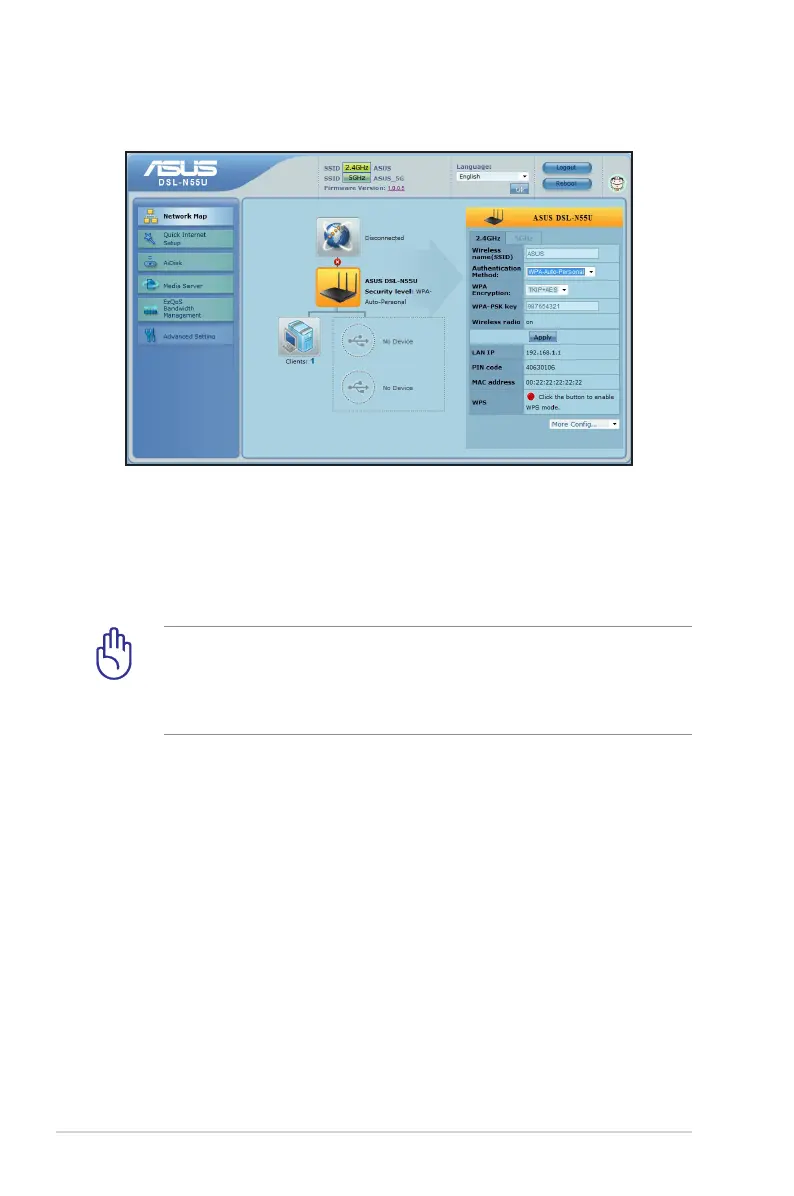

5GHz security settings
4. On the Wireless name (SSID) field, key in a unique name for
your wireless network.
5. From the Security Level dropdown list, select the encryption
method for your wireless network.
IMPORTANT! The IEEE 802.11n standard prohibits using
High Throughput with WEP or WPA-TKIP as the unicast cipher. If
you use these encryption methods, your data rate will drop to
IEEE 802.11g 54Mbps connection.
6. Key in your security passkey.
7. Click Apply when done.

Asus DSL-N55U Specifications

General

Rack mounting	-
Frequency band	2.4 & 5 GHz
Frequency range	2.4 - 5 GHz
xDSL connection	Yes
USB ports quantity	2
Maximum data transfer rate	54 Mbit/s
WLAN data transfer rates supported	1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54, 600 Mbit/s
Antennas quantity	3
Antenna gain level (max)	2 dBi
RJ-11 ports quantity	1
Ethernet LAN (RJ-45) ports	4
Certification	CE, C-Tick, IDA, PCT, Wi-Fi
Security algorithms	128-bit WEP, 64-bit WEP, WPA-PSK, WPA2-PSK, WPS
Minimum RAM	8 MB
LED indicators	LAN, Power, WLAN
Storage temperature (T-T)	-40 - 60 °C
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	5 - 95 %
Networking standards	IEEE 802.11a, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11i, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	600 Mbit/s
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	30 W

Weight and Dimensions

Depth	148.8 mm
Width	207 mm
Height	35.5 mm
Weight	400 g
