Asus H110M-A/M.2 User Manual

ASUS H110M-A/M.2
1-1
Product introduction
1

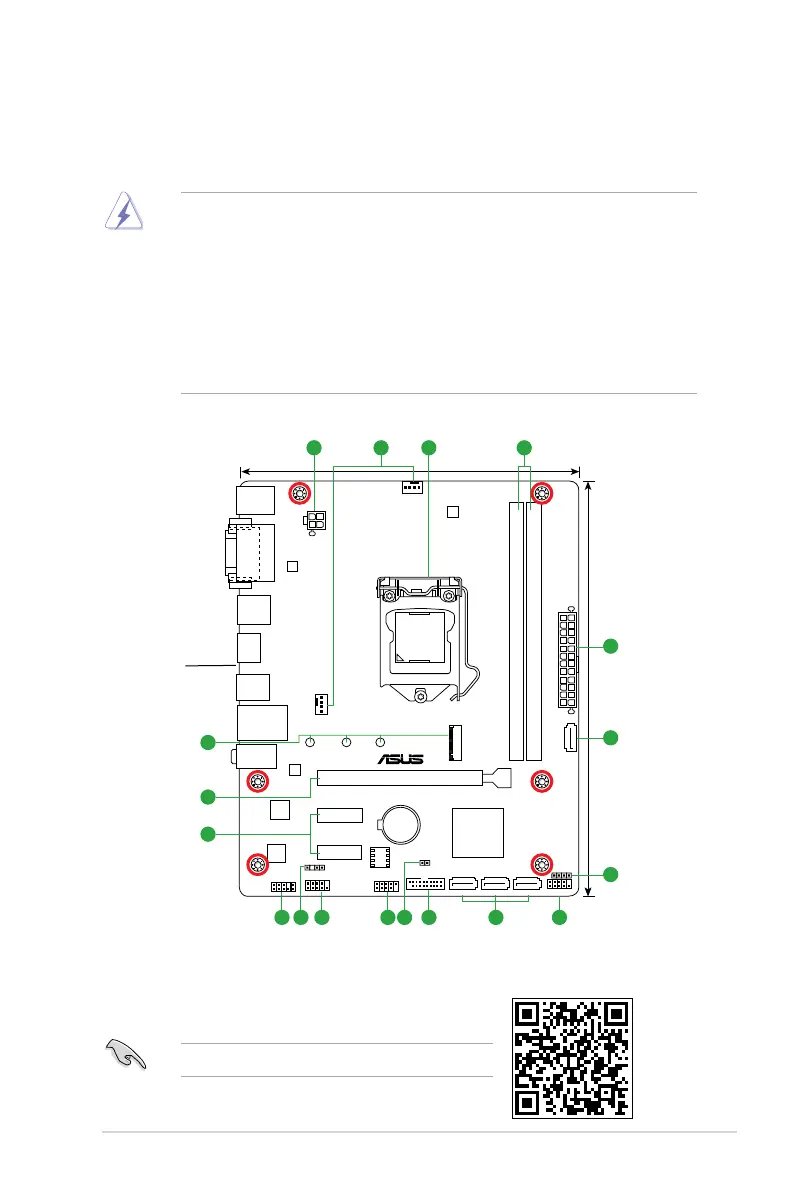

Motherboard overview
• Unplugthepowercordfromthewallsocketbeforetouchinganycomponent.
• Beforehandlingcomponents,useagroundedwriststraportouchasafelygrounded
objectorametalobject,suchasthepowersupplycase,toavoiddamagingthemdue
tostaticelectricity.
• Beforeyouinstallorremoveanycomponent,ensurethattheATXpowersupplyis
switchedofforthepowercordisdetachedfromthepowersupply.Failuretodoso
maycauseseveredamagetothemotherboard,peripherals,orcomponents.
• Unplugthepowercordbeforeinstallingorremovingthemotherboard.Failuretodoso
cancauseyouphysicalinjuryanddamagetomotherboardcomponents.
Place this
side towards
the rear of the
chassis
ScantheQRcodetogetthedetailedpindenitions.
H110M-A/M.2
PCIEX16
PCIEX1_1
PCIEX1_2
CLRTC
SPEAKER
SPDIF_OUT
USB910
COM
USB3_12
AAFP
F_PANEL
ATX12V
EATXPWR
CPU_FAN
CHA_FAN
BATTERY
Super
I/O
RTD
2168
ALC
887
DIGI
+VRM
LGA1151
Intel
®
H110
Intel
®
I219V
DDR4 DIMM_A1 (64bit, 288-pin module) DDR4 DIMM_B1 (64bit, 288-pin module)
SATA6G_3 SATA6G_2
SATA6G_1
SATA6G_4
128Mb
BIOS
22.6cm(8.9in)
18.5cm(7.3in)
AUDIO
LAN_USB56
USB3_34
HDMI
USB78
KBMS
DVI VGA
2280 2260 2242
M.2(SOCKET3)
1 432
1
5 789
5
6
1013 1112
14
15
16

Asus H110M-A/M.2 Specifications

General

Non-ECC	Yes
Memory slots type	DIMM
Number of memory slots	2
Supported memory types	DDR4-SDRAM
Maximum internal memory	32 GB
Supported memory clock speeds	2133 MHz
PCI Express x16 (Gen 3.x) slots	1
Processor socket	LGA 1151 (Socket H4)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Pentium
Component for	PC
Power source type	ATX
Motherboard chipset	Intel® H110
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Windows operating systems supported	Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8.1 Enterprise x64, Windows 8.1 Pro x64, Windows 8.1 x64
LAN controller	Intel® I218-V
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
Supported storage drive interfaces	M.2, SATA III
BIOS type	UEFI AMI
ACPI version	5.0
BIOS memory size	16 Mbit

Weight and Dimensions

Depth	185 mm
Width	226 mm
