1.10 Connectors
This section describes and illustrates the rear panel and internal
connectors on the motherboard.

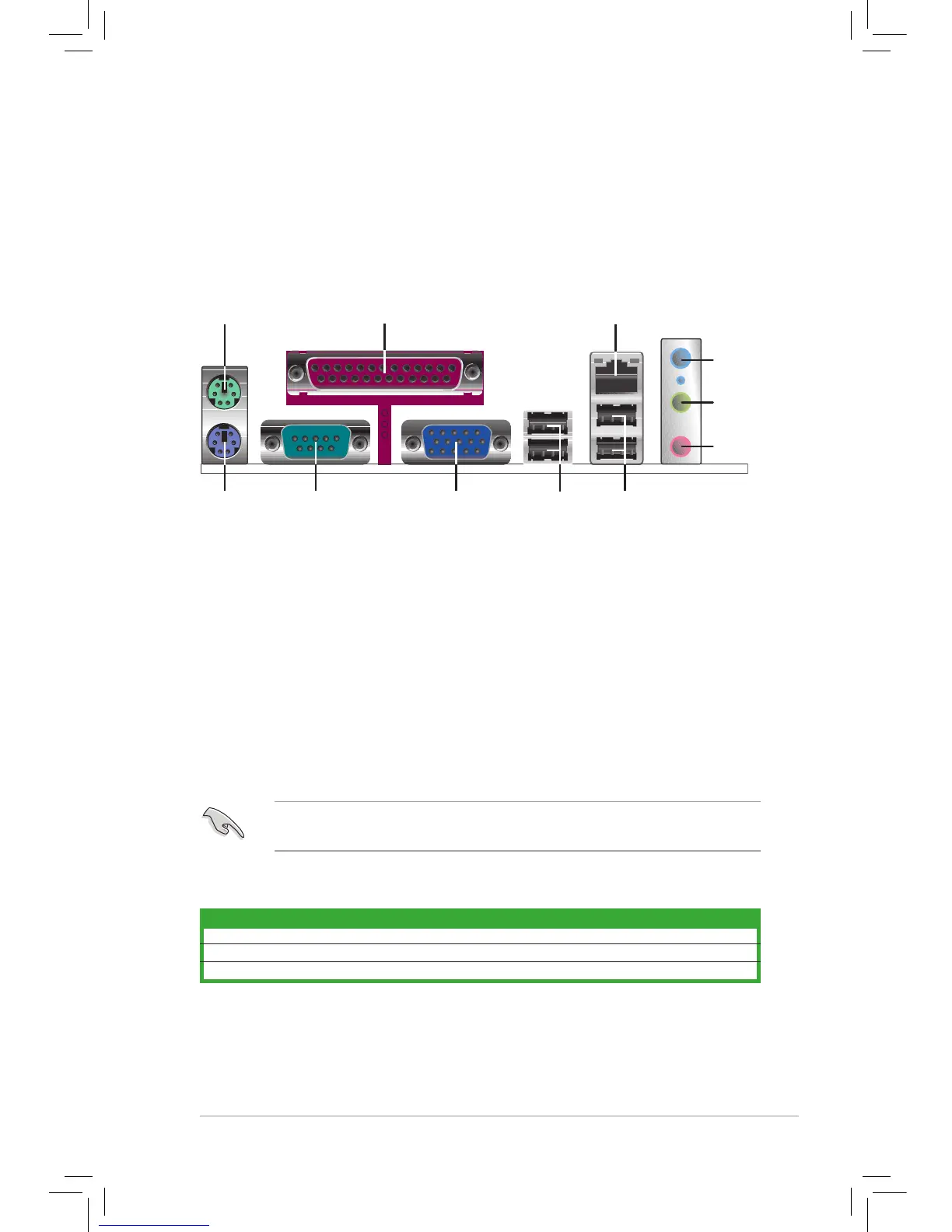

1.10.1 Rear panel connectors
1. PS/2 mouse port (green).
This 6-pin port is for a PS/2 mouse.
2. Parallel port.
This 25-pin port connects a parallel printer, a scanner, or other devices.
3. LAN (RJ-45) port.
This port allows connection to a Local Area Network (LAN)
through a network hub.
4. Line In port.
This Line In (light blue) port connects a tape player or other
audio sources. In 4- or 6-channel mode, the function of this port becomes Rear
Speaker Out.
5. Line Out port.
This Line Out (lime) port connects a headphone or a speaker.
In 4- or 6-channel mode, the function of this port becomes Front Speaker Out.
6. Microphone port.
This Mic (pink) port connects a microphone. In 6-channel
mode, the function of this port becomes Bass/Center Speaker.
Audio ports function variation
Audio ports
Headphone /2-Channel 4-Channel 6-Channel
Light Blue Line In Rear Speaker Out Rear Speaker Out
Lime Line Out Front Speaker Out Front Speaker Out
Pink Mic In Mic In Bass/Center
The functions of the Line Out, Line In, and Microphone ports change when you
select the 4- or 6-channel audio configuration as shown in the following table.
