Asus M2NPV-VM User Manual

ASUS M2NPV-VMASUS M2NPV-VM
ASUS M2NPV-VMASUS M2NPV-VM
ASUS M2NPV-VM
1-331-33
1-331-33
1-33
14.14.
14.14.
14.
ATX power connectors (24-pin EATXPWR, 4-pin ATX12V)ATX power connectors (24-pin EATXPWR, 4-pin ATX12V)
ATX power connectors (24-pin EATXPWR, 4-pin ATX12V)ATX power connectors (24-pin EATXPWR, 4-pin ATX12V)
ATX power connectors (24-pin EATXPWR, 4-pin ATX12V)
These connectors are for an ATX power supply. The plugs from the
power supply are designed to fit these connectors in only one
orientation. Find the proper orientation and push down firmly until the
connectors completely fit.
• We recommend that you use an ATX 12 V Specification
2.0-compliant power supply unit (PSU) with a minimum of 300 W
power rating. This PSU type has 24-pin and 4-pin power plugs.
• If you intend to use a PSU with 20-pin and 4-pin power plugs, make
sure that the 20-pin power plug can provide at least 15 A on +12 V
and that the PSU has a minimum power rating of 300 W. The system
may become unstable or may not boot up if the power is
inadequate.
• Do not forget to connect the 4-pin ATX +12 V power plug;
otherwise, the system will not boot up.
• We recommend that you use a PSU with higher power output when
configuring a system with more power-consuming devices. The
system may become unstable or may not boot up if the power is
inadequate.
• You must install a PSU with a higher power rating if you intend to
install additional devices.
M2NPV-VM
®

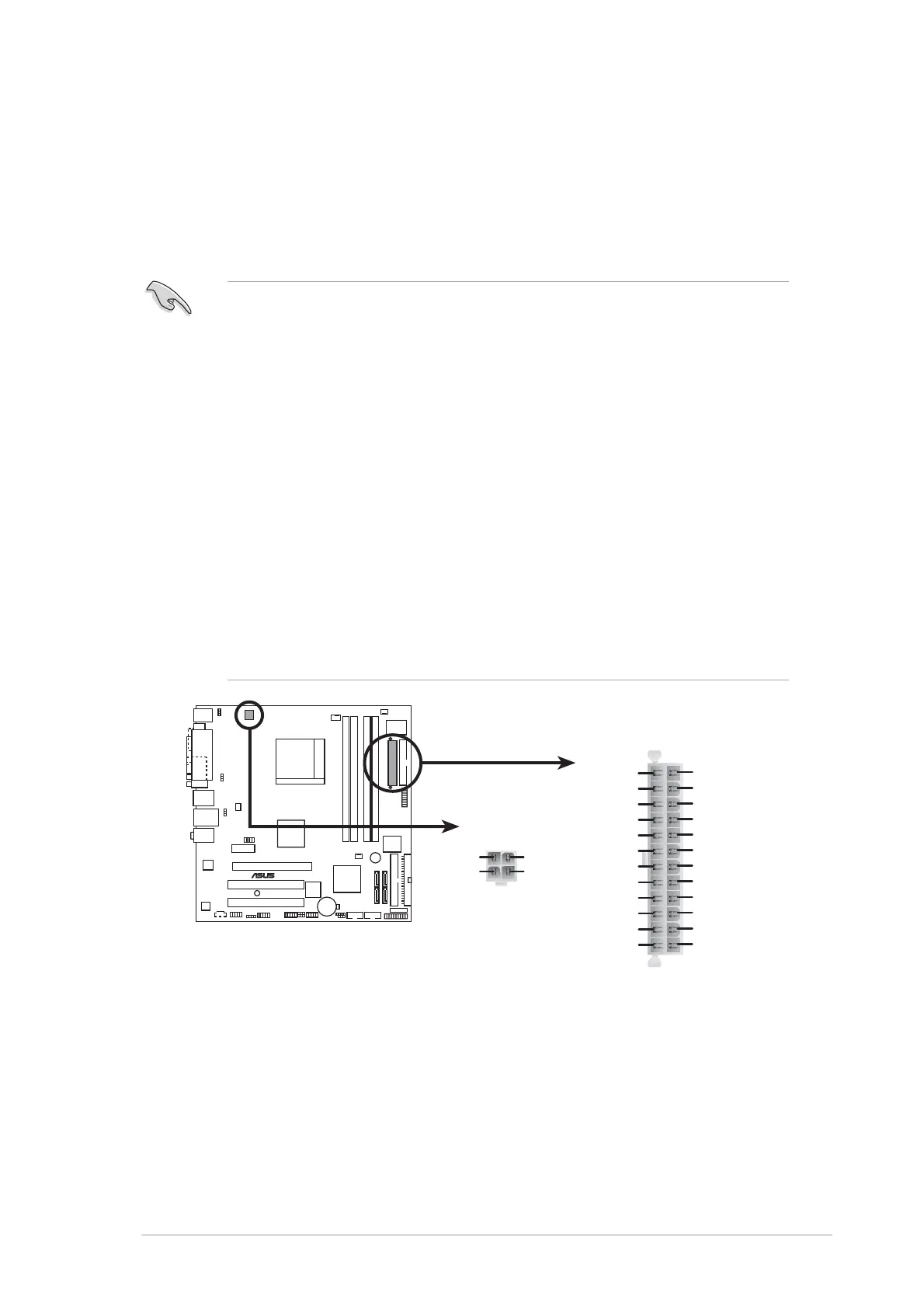

M2NPV-VM ATX power connectors
EATXPWR
ATX12V
+3 Volts
+3 Volts
Ground
+5 Volts
+5 Volts
Ground
Ground
Power OK
+5V Standby
+12 Volts
-5 Volts
+5 Volts
+3 Volts
-12 Volts
Ground
Ground
Ground
PSON#
Ground
+5 Volts
+12 Volts
+3 Volts
+5 Volts
Ground
+12V DC
GND
+12V DC
GND

Asus M2NPV-VM Specifications

General

ECC	Yes
Number of memory slots	4
Maximum internal memory	8 GB
Processor socket	Socket AM2
Processor manufacturer	AMD
Maximum number of SMP processors	1
USB 2.0 connectors	2
Special features	ASUS Q-Fan 2 ASUS My Logo ASUS CrashFreeBIOS2 ASUS EZ Flash 2
Manageability features	WfM 2.0, DMI 2.0, WOL PME, WOR, PXE
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Audio chip	ADI AD1986A
Power source type	ATX
Audio output channels	5.1 channels
Motherboard form factor	micro ATX
Bundled software	NVIDIA MediaShield RAID ASUS PC Probe II ASUS LiveUpdate AMD Cool ' n' Quiet Anti-virus (OEM)
Networking features	Gigabit Ethernet
BIOS memory size	32 Mbit

Weight and Dimensions

Width	245 mm
