Asus M2NPV-VM User Manual

2-182-18
2-182-18
2-18
Chapter 2: BIOS setupChapter 2: BIOS setup
Chapter 2: BIOS setupChapter 2: BIOS setup
Chapter 2: BIOS setup
2.3.52.3.5
2.3.52.3.5
2.3.5
First, Second, Third, Fourth SATA MasterFirst, Second, Third, Fourth SATA Master
First, Second, Third, Fourth SATA MasterFirst, Second, Third, Fourth SATA Master
First, Second, Third, Fourth SATA Master
While entering Setup, the BIOS automatically detects the presence of Serial
ATA devices. There is a separate sub-menu for each SATA device. Select a
device item then press <Enter> to display the SATA device information.
The BIOS automatically detects the values opposite the dimmed items
(Capacity, Cylinder, Head, Precomp, Landing Zone and Sector). These
values are not user-configurable. These items show 0 if no SATA device is
installed in the system.
Extended Drive [Auto]Extended Drive [Auto]
Extended Drive [Auto]Extended Drive [Auto]
Extended Drive [Auto]
Selects the type of fixed disk connected to the system.
Configuration options: [None] [Auto]
Access Mode [Auto]Access Mode [Auto]
Access Mode [Auto]Access Mode [Auto]
Access Mode [Auto]
Sets the sector addressing mode. Configuration options: [Large] [Auto]
F1:Help
↑↓ ↑↓
↑↓ ↑↓
↑↓ : Select Item -/+: Change Value F5: Setup Defaults
ESC: Exit
→← →←
→← →←
→←: Select Menu Enter: Select Sub-menu F10: Save and Exit

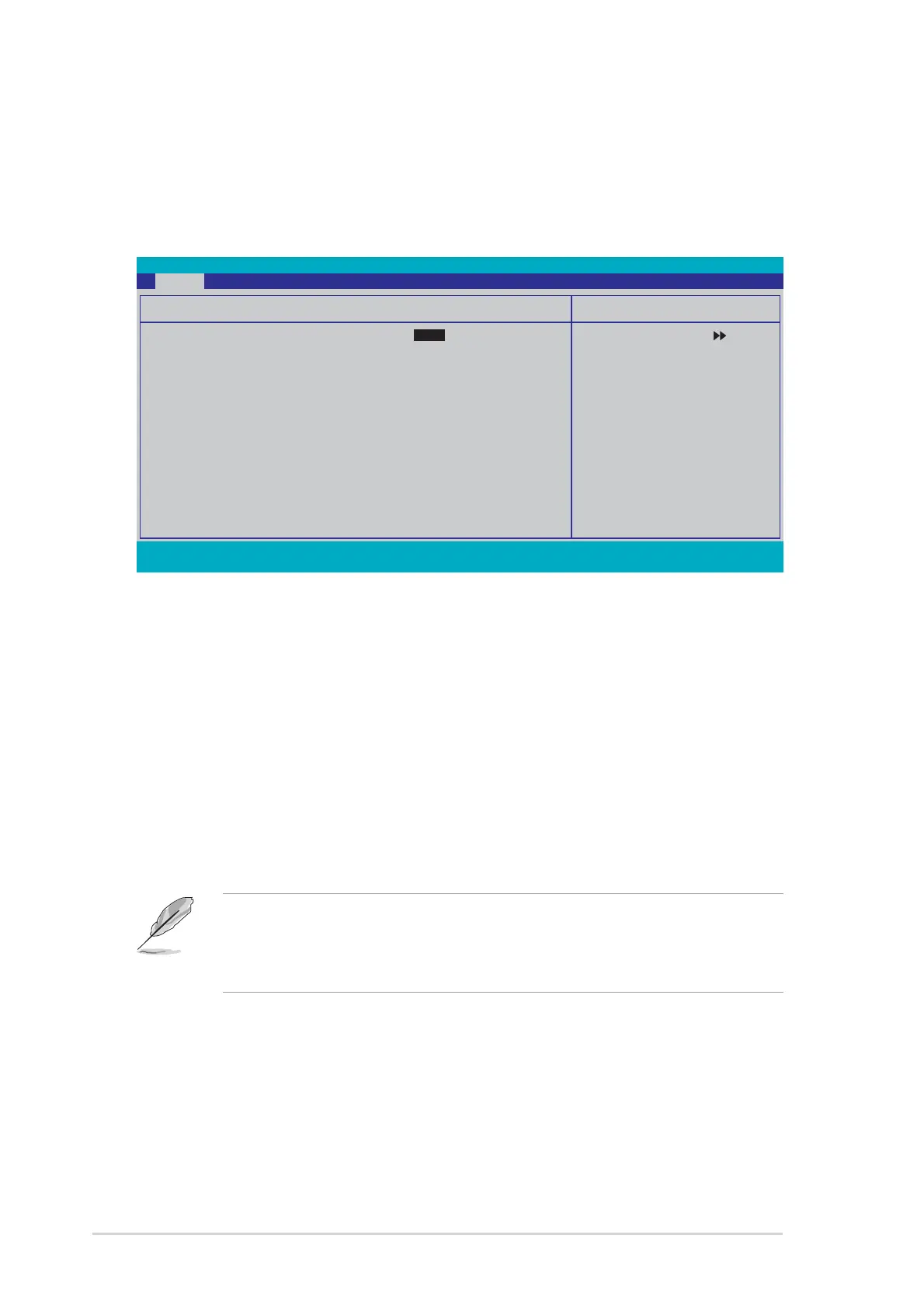

Phoenix-Award BIOS CMOS Setup Utility
Main
Select Menu
Item Specific Help
Slects the type of fixed
disk connected to the
system.
Primary SATA Master
Extended IDE Drive [Auto]
Access Mode [Auto]
Capacity 0 MB
Cylinder 0
Head 0
Landing Zone 0
Sector 0
Before attempting to configure a hard disk drive, make sure you have
the correct configuration information supplied by the drive
manufacturer. Incorrect settings may cause the system to fail to
recognize the installed hard disk.
CapacityCapacity
CapacityCapacity
Capacity
Displays the auto-detected hard disk capacity. This item is not
configurable.
CylinderCylinder
CylinderCylinder
Cylinder
Shows the number of the hard disk cylinders. This item is not configurable.

Asus M2NPV-VM Specifications

General

ECC	Yes
Number of memory slots	4
Maximum internal memory	8 GB
Processor socket	Socket AM2
Processor manufacturer	AMD
Maximum number of SMP processors	1
USB 2.0 connectors	2
Special features	ASUS Q-Fan 2 ASUS My Logo ASUS CrashFreeBIOS2 ASUS EZ Flash 2
Manageability features	WfM 2.0, DMI 2.0, WOL PME, WOR, PXE
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Audio chip	ADI AD1986A
Power source type	ATX
Audio output channels	5.1 channels
Motherboard form factor	micro ATX
Bundled software	NVIDIA MediaShield RAID ASUS PC Probe II ASUS LiveUpdate AMD Cool ' n' Quiet Anti-virus (OEM)
Networking features	Gigabit Ethernet
BIOS memory size	32 Mbit

Weight and Dimensions

Width	245 mm
