1.5 Motherboard overview
1.5.1 Placement direction
When installing the motherboard, ensure that you place it into the chassis in the correct
orientation. The edge with external ports goes to the rear part of the chassis as indicated in
the image below.
DO NOT overtighten the screws! Doing so can damage the motherboard.
Place this side towards
the rear of the chassis.

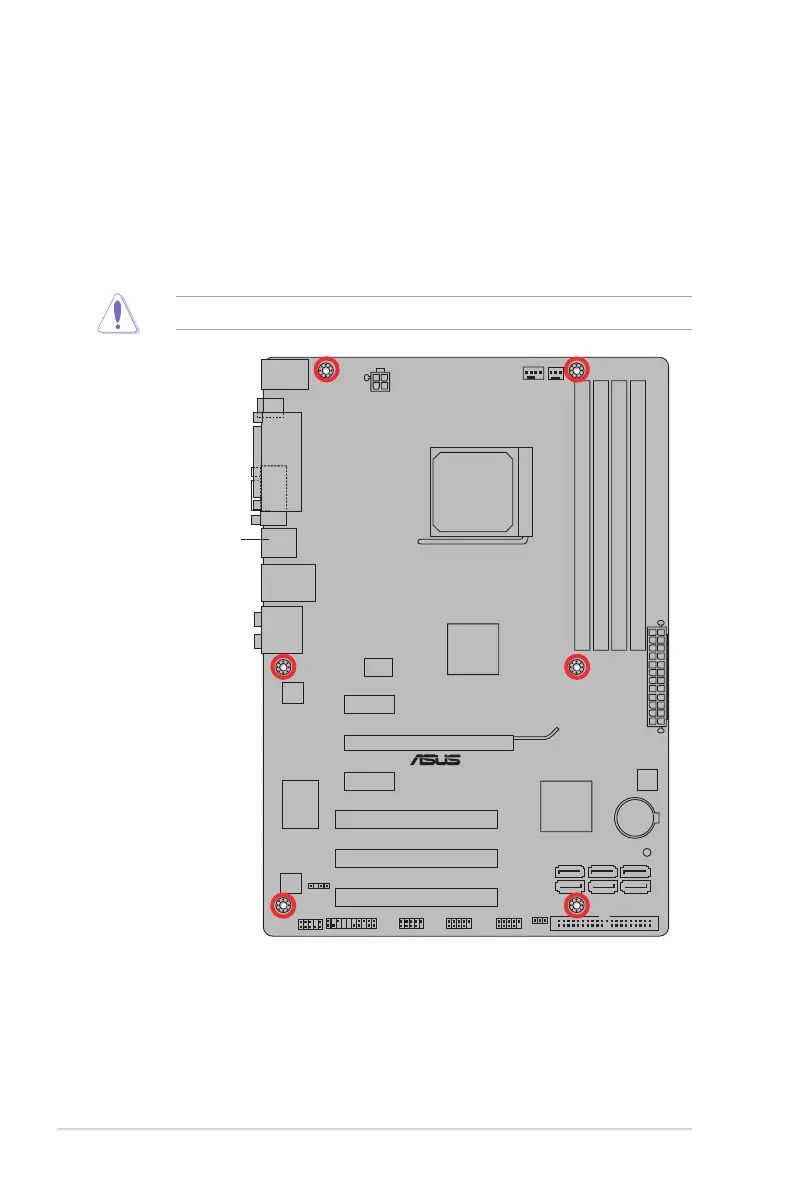

1.5.2 Screw holes
Place six screws into the holes indicated by circles to secure the motherboard to the chassis.
Chapter 1: Product introduction1-6
