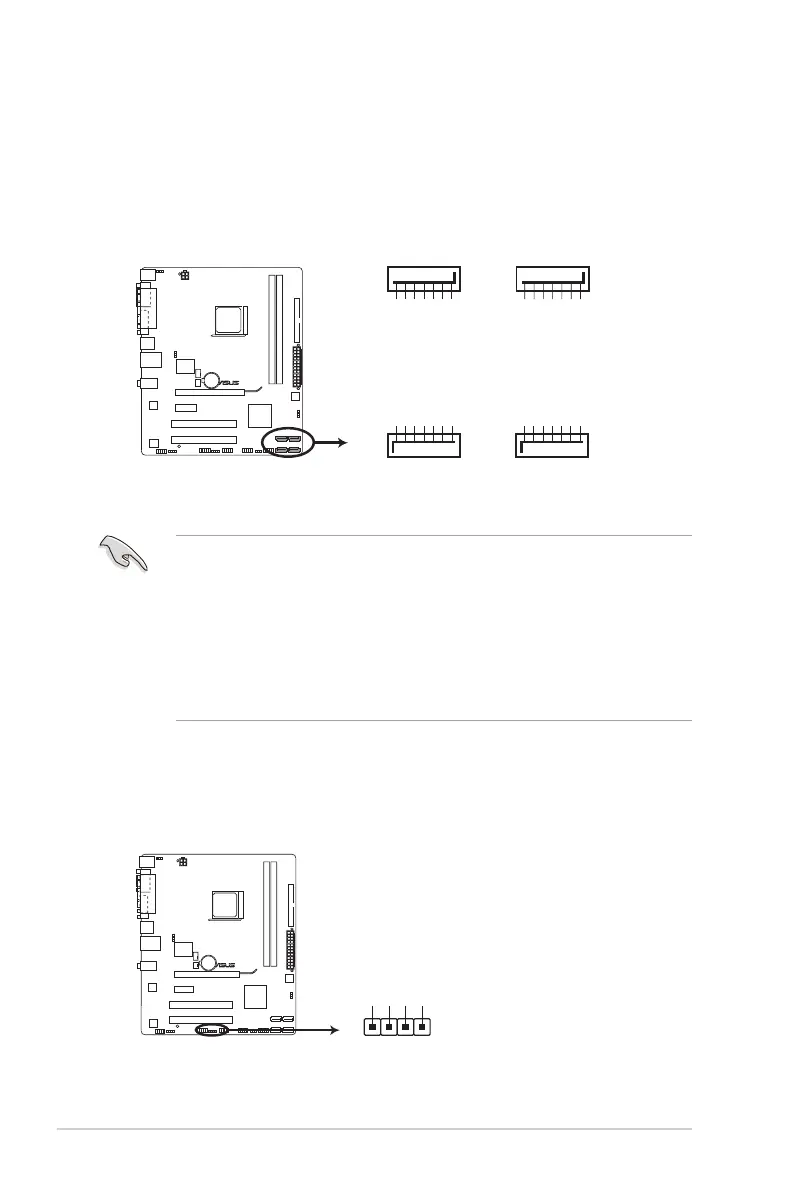

4. Serial ATA connectors (7-pin SATA1, SATA2, SATA3, SATA4)
These connectors are for the Serial ATA signal cables for Serial ATA 3Gb/s hard disk
and optical disk drives. The Serial ATA 3Gb/s is backward compatible with Serial ATA
1.5Gb/s specication. The data transfer rate of the Serial ATA 3Gb/s is faster than the
standard parallel ATA with 133MB/s (Ultra DMA133).
• Install the Windows
®
XP Service Pack 2 or later versions before using Serial ATA.
• The motherboard does not provide a oppy disk drive connector. You could use a USB
oppy disk drive when installing Windows
®
XP operating system on a hard disk drive
that includes a RAID/AHCI set.
• Due to Windows
®
XP limitation, Windows
®
XP may not recognize the USB oppy disk
drive.
• For more details on RAID/AHCI, refer to the RA ID/AHCI Supplementary Guide included
in the folder named Manual in the support DVD.
SATA1
GND RSATA_RXN1 RSATA_RXP1 GND RSATA_TXN1 RSATA_TXP1 GND
SATA3
GND RSATA_RXN3 RSATA_RXP3 GND RSATA_TXN3 RSATA_TXP3 GND
SATA2
GND
RSATA_TXP2
RSATA_TXN2
GND
RSATA_RXP2
RSATA_RXN2
GND
SATA4
GND
RSATA_TXP4
RSATA_TXN4
GND
RSATA_RXP4
RSATA_RXN4
GND
M4N68T-M Series SATA connectors
M4N68T-M V2
5. Internal speaker connector (4-pin SPEAKER)
The 4-pin connector is for the chassis-mounted system warning speaker. The speaker
allows you to hear system beeps and warnings.
+5V GND GND Speaker Out
SPEAKER
PIN 1
M4N68T-M V2
M4N68T-M Series Speaker Out Connector
Chapter 1: Product introduction1-24

Asus M4N68T-M LE V2 Specifications

General

Form Factor	Micro ATX
Chipset	NVIDIA GeForce 7025/nForce 630a
CPU Socket	AM3
Memory Type	DDR3
Maximum Memory	8GB
Storage Interface	4 x SATA 3Gb/s
Video Ports	1 x VGA
Memory Slots	2
Memory Standard	DDR3 1333/1066 MHz
Expansion Slots	1 x PCIe x16, 1 x PCIe x1, 2 x PCI
LAN	Realtek RTL8211CL Gigabit LAN controller
Audio Ports	3 x Audio Jacks
USB Ports	10 x USB 2.0 (4 on back panel, 6 via headers)
