Asus M4N68T-M LE V2 User Manual

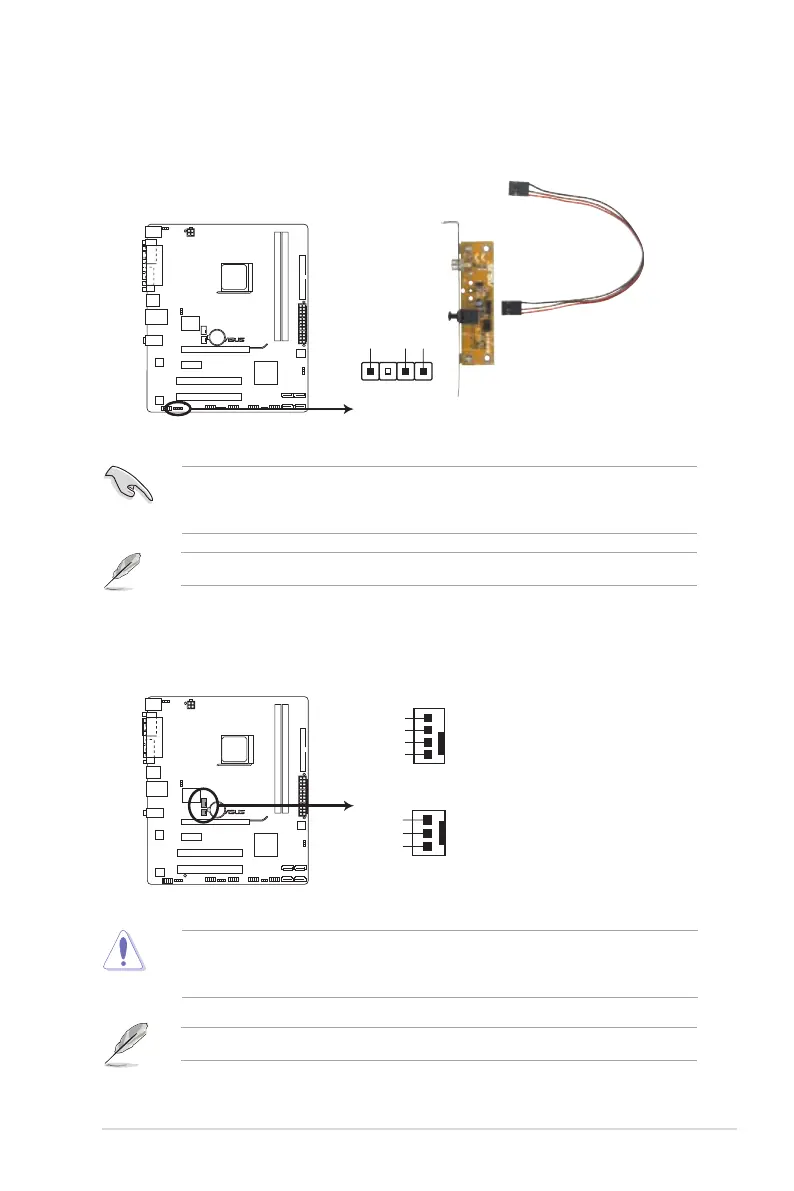

8. Digital audio connector (4-1 pin SPDIF_OUT)
This connector is for an additional Sony/Philips Digital Interface (S/PDIF) port.
Ensure that the audio device of Sound playback is VIA High Denition Audio (the name
may be different based on the OS). Go to Start > Control Panel > Sounds and Audio
Devices > Sound Playback to congure the setting.
The S/PDIF module is purchased separately.
SPDIF_OUT
+5V SPDIFOUT GND
M4N68T-M Series Digital audio connector
M4N68T-M V2
9. CPU and chassis fan connectors (4-pin CPU_FAN and 3-pin CHA_FAN)
Connect the fan cables to the fan connectors on the motherboard, ensuring that the
black wire of each cable matches the ground pin of the connector.
DO NOT forget to connect the fan cables to the fan connectors. Insufcient air ow inside
the system may damage the motherboard components. These are not jumpers! DO NOT
place jumper caps on the fan connectors.
CPU_FAN
CPU FAN PWM
CPU FAN IN
CPU FAN PWR
GND
Rotation
+12V
GND
CHA_FAN
M4N68T-M Series fan connectors
M4N68T-M V2
Only the 4-pin CPU fan connector supports the ASUS Q-Fan feature.
ASUS M4N68T-M Series 1-27

Asus M4N68T-M LE V2 Specifications

General

Form Factor	Micro ATX
Chipset	NVIDIA GeForce 7025/nForce 630a
CPU Socket	AM3
Memory Type	DDR3
Maximum Memory	8GB
Storage Interface	4 x SATA 3Gb/s
Video Ports	1 x VGA
Memory Slots	2
Memory Standard	DDR3 1333/1066 MHz
Expansion Slots	1 x PCIe x16, 1 x PCIe x1, 2 x PCI
LAN	Realtek RTL8211CL Gigabit LAN controller
Audio Ports	3 x Audio Jacks
USB Ports	10 x USB 2.0 (4 on back panel, 6 via headers)
