3. Align the other end of the retention bracket to the retention module base. A clicking
sound denotes that the retention bracket is in place.
Ensure that the fan and heatsink assembly perfectly ts the retention mechanism module
base, otherwise you cannot snap the retention bracket in place.
4. Push down the retention bracket lock on the retention mechanism to secure the
heatsink and fan to the module base.
5. When the fan and heatsink assembly is in place, connect the CPU fan cable to the
connector on the motherboard labeled CPU_FAN.
DO NOT forget to connect the CPU fan connector! Hardware monitoring errors can occur if
you fail to plug this connector.
1.7 System memory
1.7.1 Overview

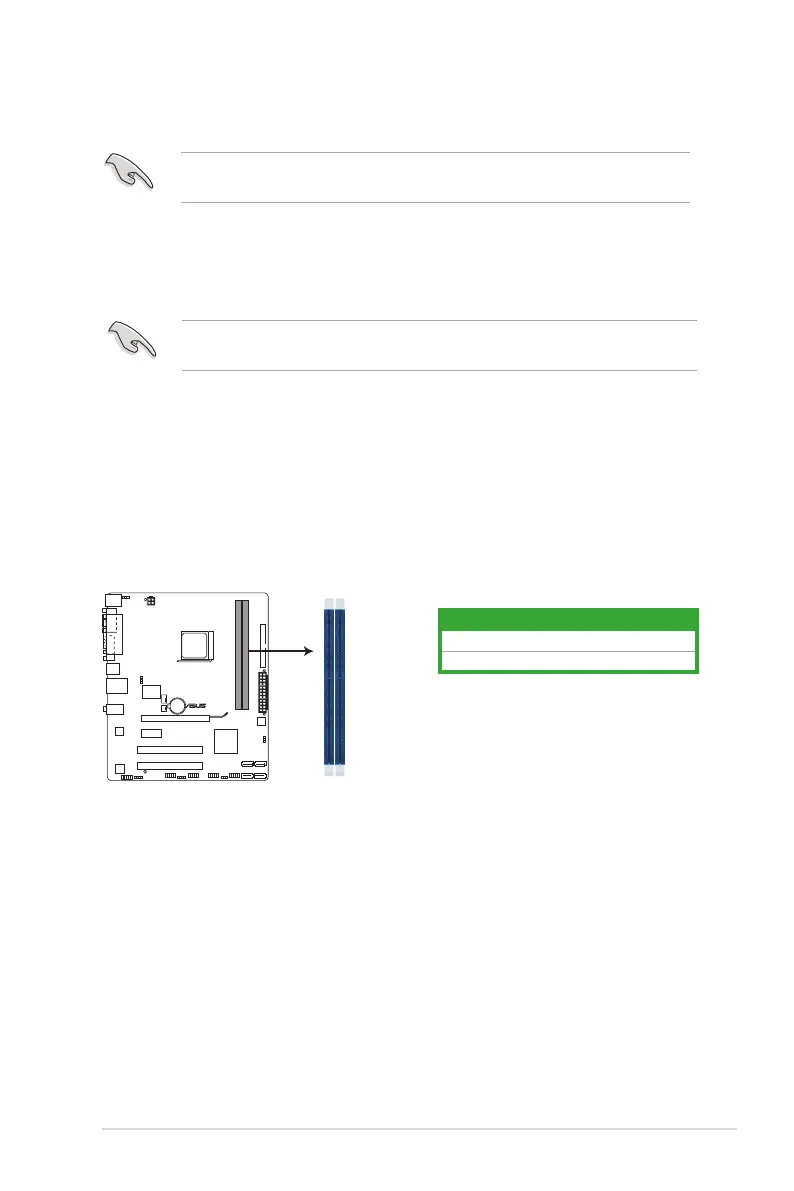

The motherboard comes with two Double Data Rate 3 (DDR3) Dual Inline Memory Modules
(DIMM) sockets. The gure illustrates the location of the DDR3 DIMM sockets:
M4N68T-M
M4N68T-M 240-pin DDR3 DIMM sockets
DIMM_A1 DIMM_B1
Channel Sockets
Channel A DIMM_A1
Channel B DIMM_B1
ASUS M4N68T-M 1-11

Asus M4N68T-M Specifications

General

Form Factor	Micro ATX
CPU Socket	AM3
Chipset	NVIDIA GeForce 7025 / nForce 630a
Memory Type	DDR3
Maximum Memory	16GB
Storage Interface	4 x SATA 3Gb/s
Video Outputs	1 x VGA
Expansion Slots	1 x PCIe 2.0 x16
Audio	Realtek ALC887 8-Channel High Definition Audio
LAN	Realtek 8211CL Gigabit LAN Controller
IDE Ports	1 x ATA133
Memory Slots	4
USB Ports	10 x USB 2.0 (6 rear, 4 via headers)
