Asus M5A78L-M LX3 User Manual

1.2 Before you proceed
Take note of the following precautions before you install motherboard components or change
any motherboard settings.
• Unplug the power cord from the wall socket before touching any component.
• Before handling components, use a grounded wrist strap or touch a safely grounded
object or a metal object, such as the power supply case, to avoid damaging them due
to static electricity.
• Hold components by the edges to avoid touching the ICs on them.
• Whenever you uninstall any component, place it on a grounded antistatic pad or in the
bag that came with the component.
• Before you install or remove any component, switch off the ATX power supply and
detach its power cord. Failure to do so may cause severe damage to the motherboard,
peripherals, or components.

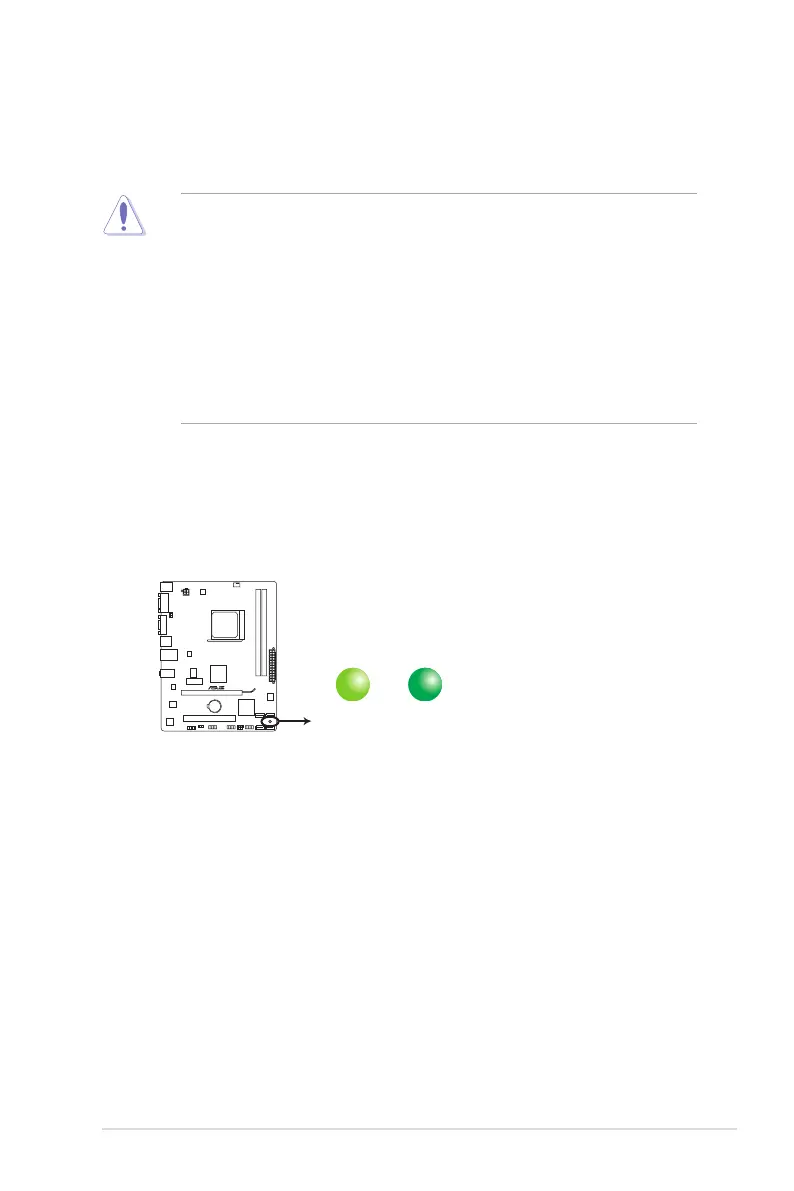

Standby Power LED
The motherboard comes with a standby power LED that lights up to indicate that the system
is ON, in sleep mode, or in soft-off mode. This is a reminder that you should shut down
the system and unplug the power cable before removing or plugging in any motherboard
component. The illustration below shows the location of the onboard LED.
M5A78L-M LX3 PLUS
M5A78L-M LX3 PLUS Onboard LED
SB_PWR
ON
Standby Power Powered Off
OFF
ASUS M5A78L-M LX3 Series
1-3

Asus M5A78L-M LX3 Specifications

General

Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	2
Supported memory types	DDR3-SDRAM
Maximum internal memory	16 GB
Supported memory clock speeds	1066, 1333, 1600, 1866 MHz
Processor socket	Socket AM3+
Processor manufacturer	AMD
Compatible processor series	AMD Phenom
Processor thermal power (max)	95 W
Number of SATA II connectors	4
Number of EATX power connectors	1
USB 3.2 Gen 1 (3.1 Gen 1) connectors	0
S/PDIF in port	No
Controller interface type	AMD SB710
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Audio chip	Realtek ALC887
Component for	PC
Power source type	ATX
Motherboard chipset	AMD 760G
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
RAID levels	0, 1, 10, JBOD
Supported storage drive interfaces	SATA, SATA II
Graphics card	Radeon HD 3000
DirectX version	10
Maximum resolution	2560 x 1440 pixels
Graphics card family	ATI
Maximum graphics card memory	1024 MB
Parallel processing technology support	Hybrid CrossFireX
PCI Express slots version	2.0
Cables included	SATA
Networking features	Gigabit Ethernet
BIOS type	AMI
ACPI version	2.0a
BIOS memory size	16 Mbit

Weight and Dimensions

Depth	188 mm
Width	244 mm
