Asus M5A78L-M USB3 User Manual

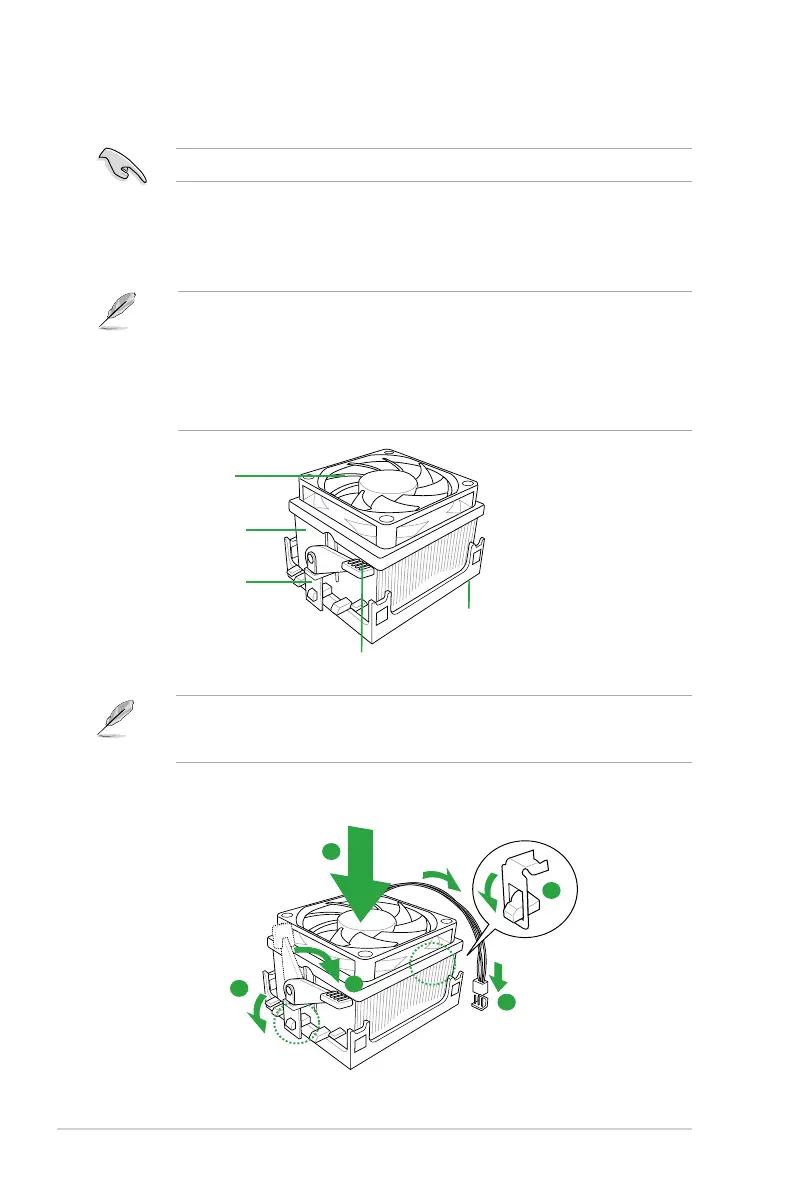

1.6.2 Installing the heatsink and fan
Ensure that you use only AMD-certied heatsink and fan assembly.
To install the CPU heatsink and fan:
1. Place the heatsink on top of the installed CPU, ensuring that the heatsink ts properly
on the retention module base.
• The retention module base is already installed on the motherboard upon purchase.
• You do not have to remove the retention module base when installing the CPU or
installing other motherboard components.
• If you purchased a separate CPU heatsink and fan assembly, ensure that a Thermal
Interface Material is properly applied to the CPU heatsink or CPU before you install the
heatsink and fan assembly.
CPU Fan
CPU Heatsink
Retention bracket
Retention bracket lock
Retention Module Base
Your boxed CPU heatsink and fan assembly should come with installation instructions for
the CPU, heatsink, and the retention mechanism. If the instructions in this section do not
match the CPU documentation, follow the latter.
2. Attach one end of the retention bracket to the retention module base.
1
3
4
5
2
Chapter 1: Product introduction1-10

Asus M5A78L-M USB3 Specifications

General

ECC	Yes
Memory channels	Dual-channel
Number of memory slots	4
Supported memory types	DDR3-SDRAM
Maximum internal memory	16 GB
Supported memory clock speeds	1066, 1333, 1600, 1800, 1866, 2000 MHz
System bus rate	5.2 GT/s
Processor socket	Socket AM3+
Processor manufacturer	AMD
Compatible processor series	AMD Athlon II, AMD Sempron
USB 2.0 connectors	3
Number of COM connectors	1
Number of SATA II connectors	6
Number of Parallel ATA connectors	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Audio chip	VIA VT1708S
Component for	PC
Power source type	ATX
Motherboard chipset	AMD 760G
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Motherboard southbridge	AMD SB710
RAID levels	0, 1, 10, JBOD
Supported storage drive interfaces	SATA II
Cables included	SATA
Graphics card	Radeon 3000
Parallel processing technology support	Not supported
LAN controller	Realtek RTL8111E
Networking features	Gigabit Ethernet
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
BIOS type	AMI
ACPI version	2.0a
BIOS memory size	16 Mbit

Weight and Dimensions

Width	244 mm
