Chapter 4: Software support
Chapter 4

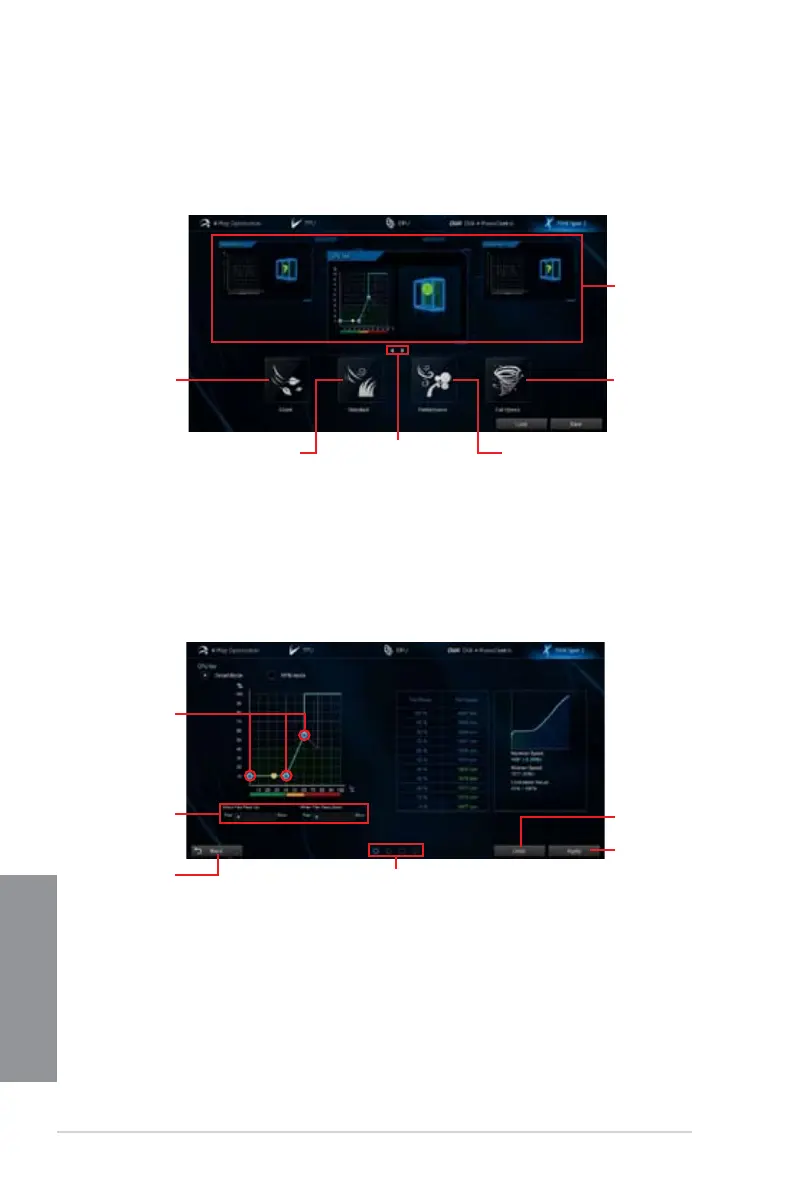

Fan Xpert 2
Fan Xpert 2 automatically detects and tweaks the fan speeds, and provides you with
optimized fan settings based on the fans’ specications and positions.
Click a screen
to select the
type of fan
that you want
to customize
Click to set the
fan’s speed to
silent mode
Click to set the balanced
conguration between the
fan’s noise level and speed
Click to increase the fan’s
speed for a high cooling
capability
Click to
maximize the
fan speed
Using Fan Xpert 2
Click to switch between CPU
and chassis fan screens
Customizing the fan settings
Smart Mode
Smart Mode allows you to customize the fans’ rotation speeds and responsiveness based on
your system’s temperature.
Click to switch between the
CPU and chassis fan screens
Click to apply
the changes
Click to undo
the changes
Click to go back
to the previous
screen
Click and drag
to set the fan’s
rotation speed
Click and drag
the sliders to
adjust the fan’s
responsiveness

Asus Maximus VI Extreme Specifications

General

ECC	No
Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR3-SDRAM
Maximum internal memory	32 GB
Supported memory clock speeds	1333, 1500, 1600, 1666, 1800, 1866, 1900, 2000, 2100, 2133, 2200, 2250, 2400, 2450, 2600, 2666, 2800, 3000 MHz
Processor socket	LGA 1150 (Socket H3)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Pentium
Maximum number of SMP processors	1
USB 2.0 connectors	3
Number of SATA III connectors	10
Number of Parallel ATA connectors	0
HDMI version	1.4a
USB 2.0 ports quantity	2
Audio chip	Realtek ALC1150
Cooling type	Passive
Component for	PC
Motherboard chipset	Intel® Z87
PC health monitoring	CPU, FAN, Temperature
Audio output channels	7.1 channels
Motherboard form factor	ATX
RAID levels	0, 1, 5, 10
Supported storage drive interfaces	SATA, SATA II, SATA III
Graphics card	HD Graphics
Maximum resolution	4096 x 2160 pixels
Parallel processing technology support	2-Way CrossFireX, 2-Way SLI, 3-Way CrossFireX, 3-Way SLI, 4-Way CrossFireX, 4-Way SLI, Quad-GPU CrossFireX, Quad-GPU SLI
PCI Express x16 slots	5
PCI Express slots version	2.0, 3.0
PCI Express configurations	1x8, 1x16, 2x8
Cables included	SATA
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth version	4.0
Ethernet interface type	Gigabit Ethernet
BIOS type	EFI AMI
ACPI version	2.0a
BIOS memory size	64 Mbit

Weight and Dimensions

Depth	244 mm
Width	305 mm
