Asus Maximus VI Extreme Manual

ASUS MAXIMUS VI EXTREME
2-23
Chapter 2
2.4.2 Setting up your OC Panel in Normal Mode
The OC Panel in Normal Mode mainly provides easy access buttons for increasing your
CPU’s frequency level, adjusting fan speeds and customizing overclocking proles. It also
displays vital information about your computer’s CPU temperature, base clocks, and CPU fan
speed (RPM).

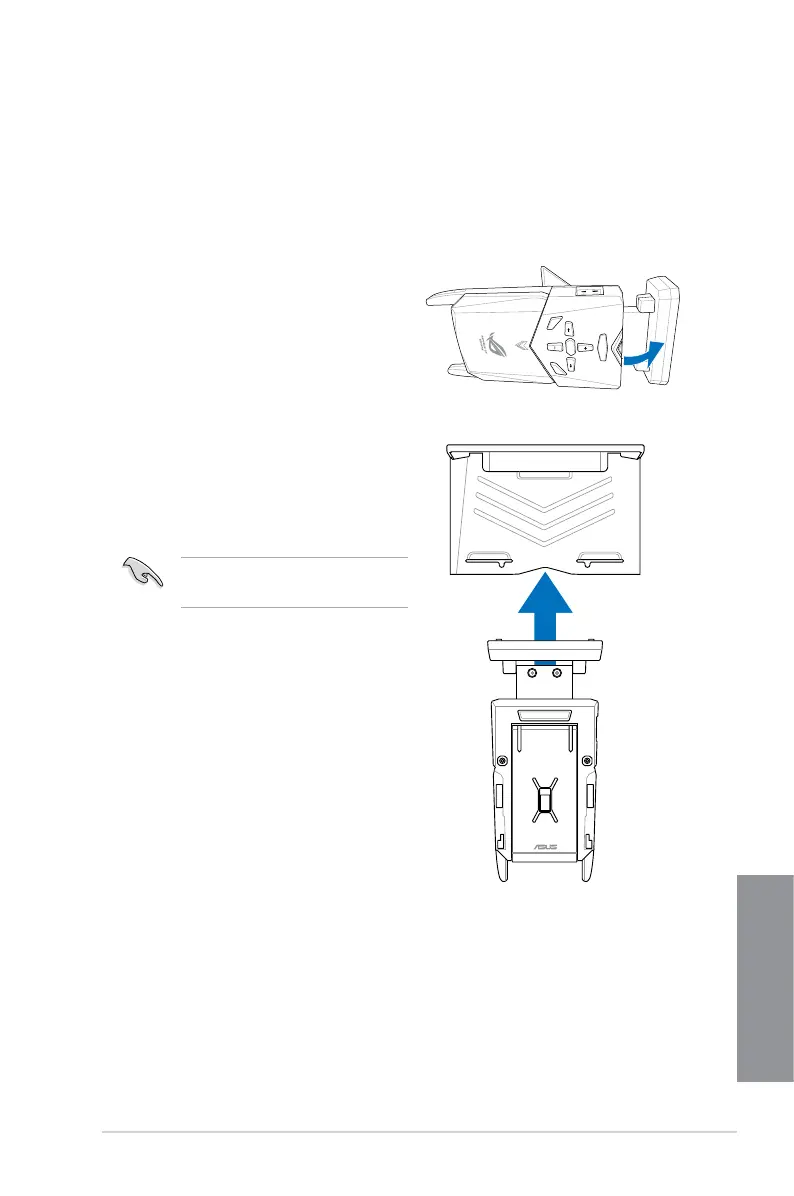

To set up your OC Panel in Normal Mode:
1. Tilt the OC Panel LCM display until it is
perpendicular to the body of OC Panel.
2. Get the bundled OC Panel 5.25-inch drive
bay metal case and set of two (2) screws.
3. Align and insert the OC Panel into the OC
Panel 5.25-inch drive bay metal case.
The OC Panel ts in one orientation
only. If it does not t, try reversing it.
R
eset
t
r
a
t
S
Clear
R
eset
OK

Asus Maximus VI Extreme Specifications

General

ECC	No
Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR3-SDRAM
Maximum internal memory	32 GB
Supported memory clock speeds	1333, 1500, 1600, 1666, 1800, 1866, 1900, 2000, 2100, 2133, 2200, 2250, 2400, 2450, 2600, 2666, 2800, 3000 MHz
Processor socket	LGA 1150 (Socket H3)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Pentium
Maximum number of SMP processors	1
USB 2.0 connectors	3
Number of SATA III connectors	10
Number of Parallel ATA connectors	0
HDMI version	1.4a
USB 2.0 ports quantity	2
Audio chip	Realtek ALC1150
Cooling type	Passive
Component for	PC
Motherboard chipset	Intel® Z87
PC health monitoring	CPU, FAN, Temperature
Audio output channels	7.1 channels
Motherboard form factor	ATX
RAID levels	0, 1, 5, 10
Supported storage drive interfaces	SATA, SATA II, SATA III
Graphics card	HD Graphics
Maximum resolution	4096 x 2160 pixels
Parallel processing technology support	2-Way CrossFireX, 2-Way SLI, 3-Way CrossFireX, 3-Way SLI, 4-Way CrossFireX, 4-Way SLI, Quad-GPU CrossFireX, Quad-GPU SLI
PCI Express x16 slots	5
PCI Express slots version	2.0, 3.0
PCI Express configurations	1x8, 1x16, 2x8
Cables included	SATA
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth version	4.0
Ethernet interface type	Gigabit Ethernet
BIOS type	EFI AMI
ACPI version	2.0a
BIOS memory size	64 Mbit

Weight and Dimensions

Depth	244 mm
Width	305 mm
