ASUS A7V8X motherboard user guide 5-3
If you installed the BCM4401 controller drivers, the default setting, Wake
Up Frame, allows system wake-up from S1, S3, and S4 sleep modes. If
you wish to wake-up the system from S5 mode (shut down mode), you
must manually change the Wake-On-LAN settings to Magic Frame.

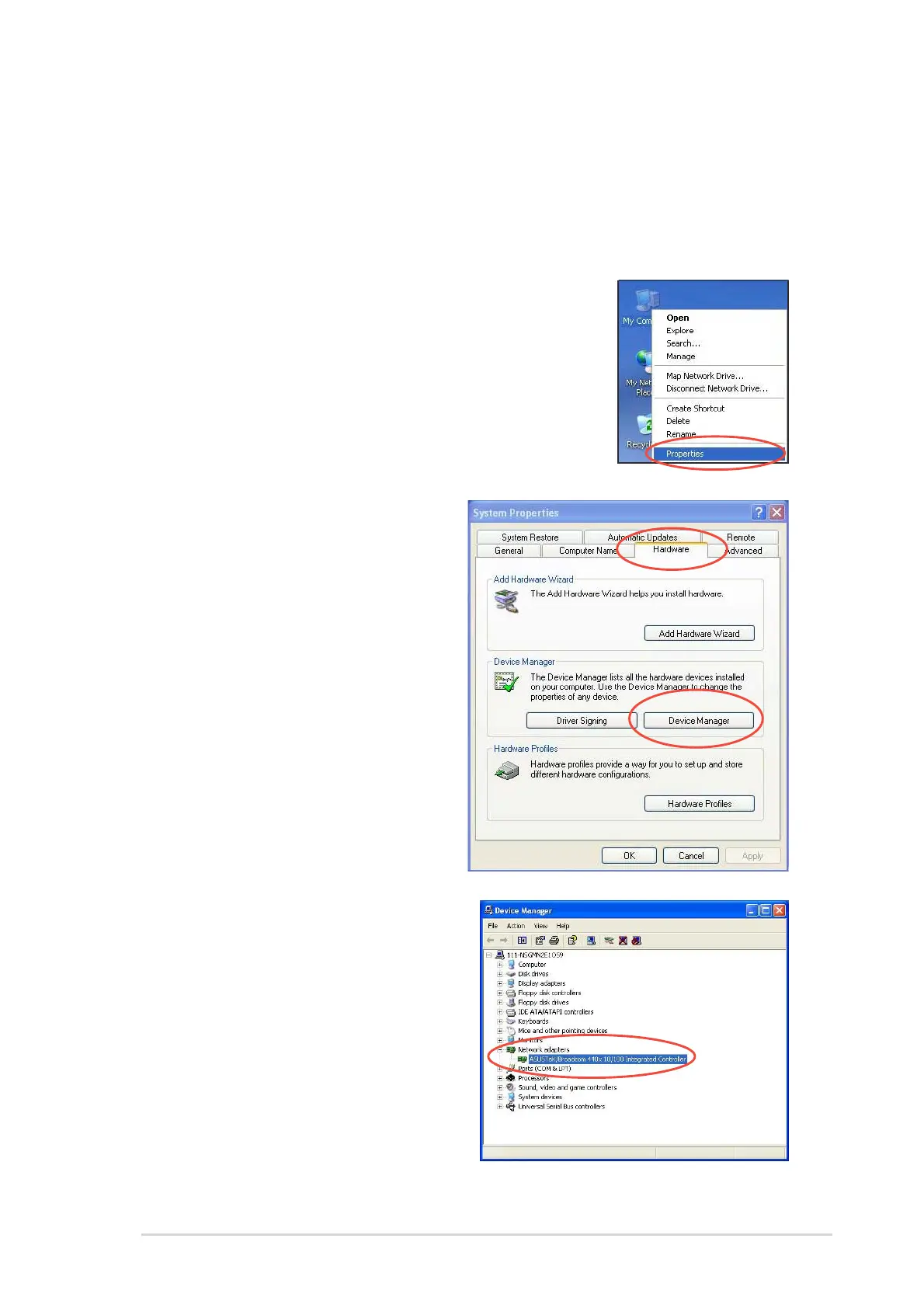

To adjust Wake-On-LAN settings:
1. Right-click My Computer icon on your desktop,
and select Properties to display the System
Properties window.
2. On the System Properties
window, click on the Hardware
tab. Click on the Device
Manager button to display the
Device Manager window.
3. On the Device Manager window,
click the plus sign (+) opposite the
Network adapters item to show
the ASUSTeK/BroadCom 440x
10/100 Integrated Controller.
Double-click the item.
