ASUS P5GC-MX/GBL
1-13
1.6.3

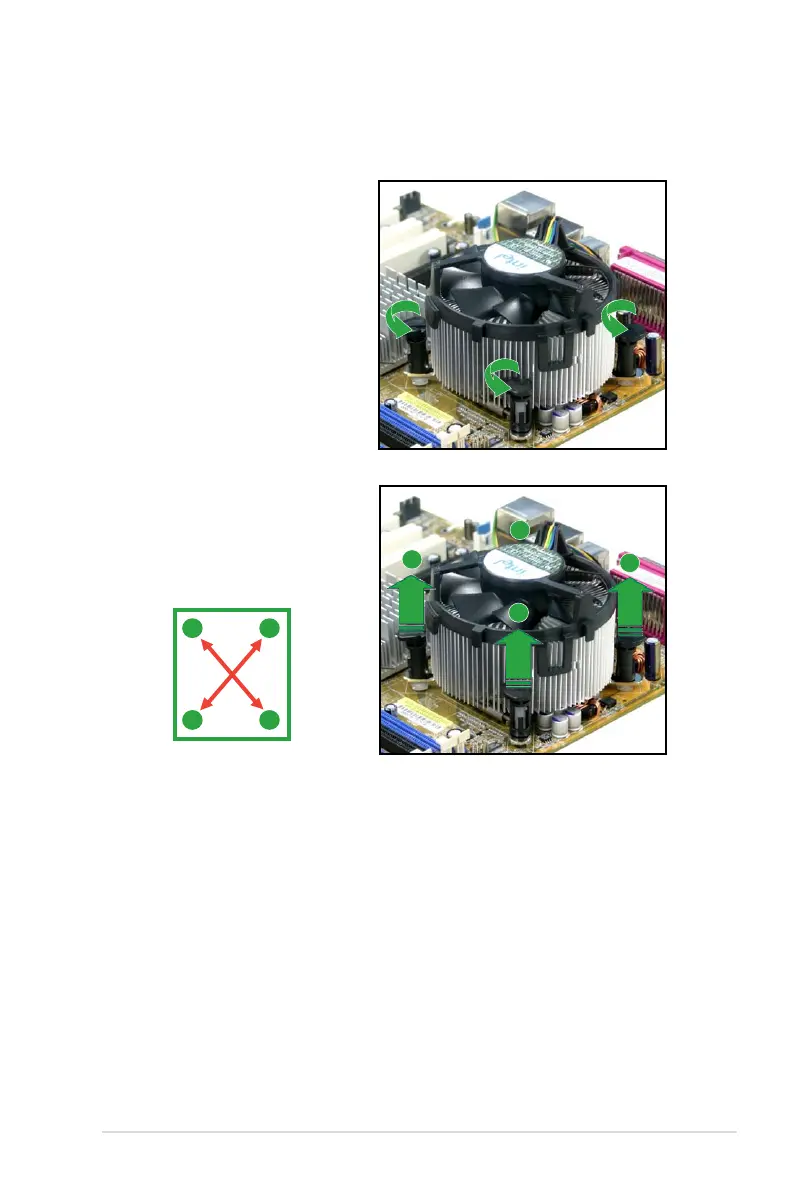

Uninstalling the CPU heatsink and fan
T
o uninstall the CPU heatsink and fan:
1.
Disconnect the CPU fan cable
from the connector on the
motherboard.
2.
Rotate each fastener
counterclockwise.
3.
Pull up two fasteners at a
time in a diagonal sequence
to disengage the heatsink
and fan assembly from the
motherboard.
A
A
B
B
B
B
A
A
24
26
