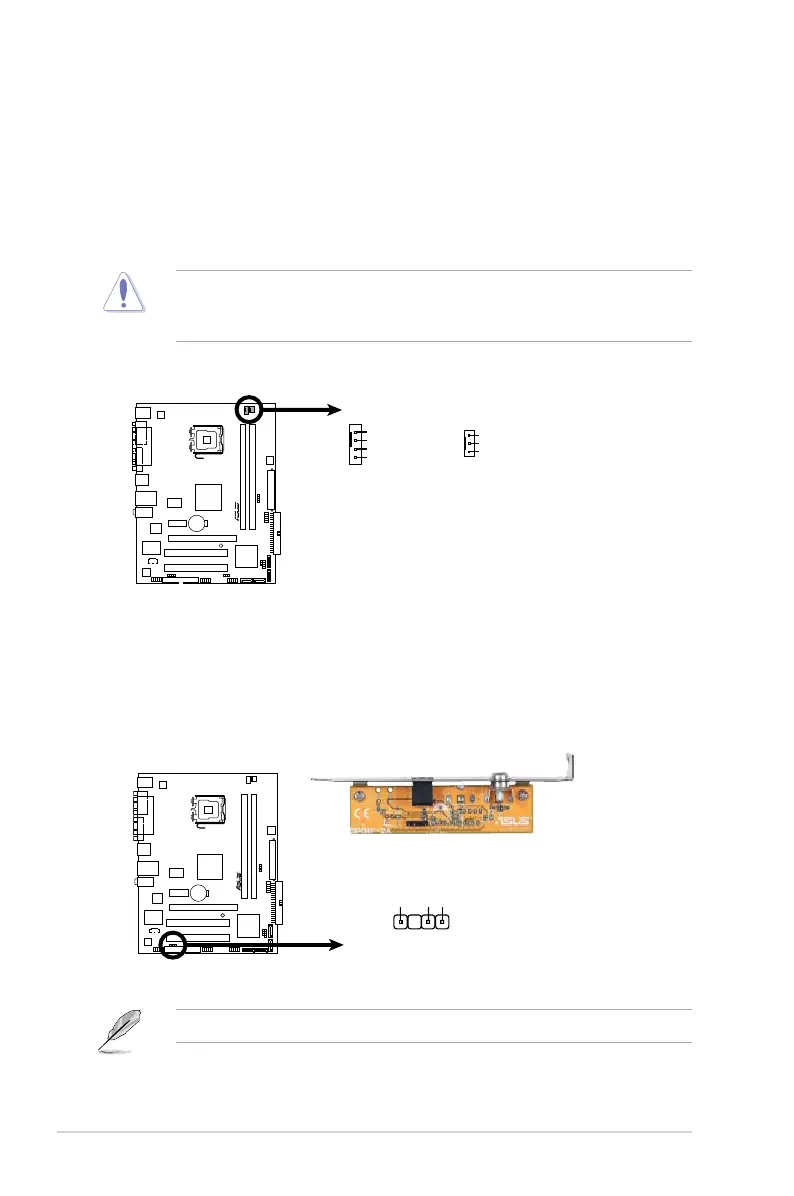

1-30 Chapter 1: Product introduction
6. Digital Audio connector (4-1 pin SPDIF_OUT)
This connector is for the S/PDIF audio module to allow digital sound output.
Connect one end of the S/PDIF audio cable to this connector and the other
end to the S/PDIF module.
The S/PDIF out module is purchased separately.
5. CPU and Chassis fan connectors
(4-pin CPU_FAN, 3-pin CHA_FAN)
The fan connectors support cooling fans of a total of 1A~2.2A (26.4W max.)
at +12V. Connect the fan cables to the fan connectors on the motherboard,
making sure that the black wire of each cable matches the ground pin of the
connector.
Do not forget to connect the fan cables to the fan connectors. Insufcient air
ow inside the system may damage the motherboard components. These are
not jumpers! DO NOT place jumper caps on the fan connectors.
R
P5GC-MX/GBL
P5GC-MX/GBL Fan Connectors
CPU_FAN
GND
+12V
CPU FAN IN
CPU FAN PWM
CHA_FAN
GND
Rotation
+12V
R
P5GC-MX/GBL
P5GC-MX/GBL Digital Audio Connector
+5V
SPDIFOUT GND
SPDIF_OUT

Asus P5GC-MX GBL Specifications

General

Form Factor	Micro ATX
Chipset	Intel 945GC
CPU Socket Type	LGA 775
Memory Type	DDR2
Memory Standard	DDR2 667/533
Maximum Memory	4GB
Integrated Graphics	Intel GMA 950
LAN Chipset	Realtek RTL8111B
LAN Speed	10/100/1000Mbps
CPU Support	Intel Core 2 Duo, Pentium D, Pentium 4, Celeron
Memory Slots	2
Storage Interface	4 x SATA 3Gb/s
Back Panel Ports	1 x PS/2 Keyboard, 1 x PS/2 Mouse, 1 x Parallel, 1 x COM, 4 x USB 2.0, 1 x LAN (RJ45), 3 x Audio Jacks
USB Ports	8 x USB 2.0
Audio Channels	6 Channels
