Asus P5GC-MX GBL User Manual

1-32 Chapter 1: Product introduction

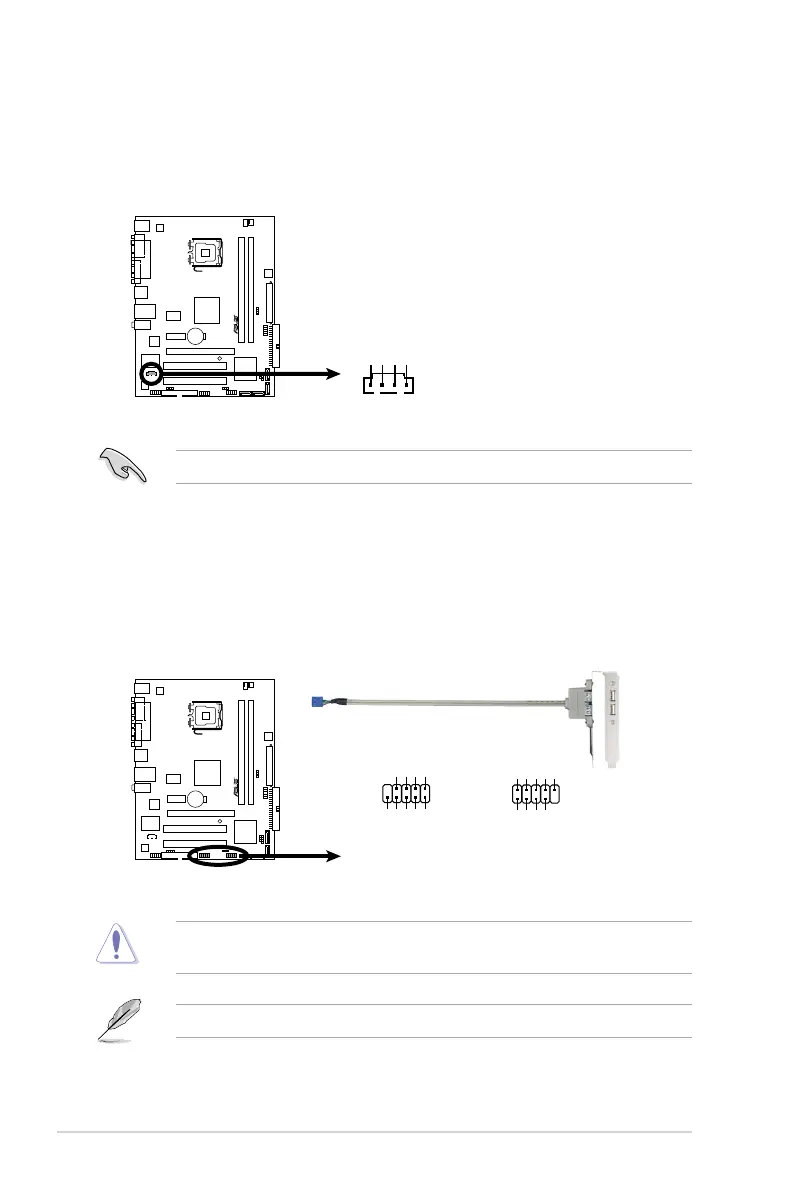

8. Optical drive audio connector (4-pin CD)
This connector allows you to receive stereo audio input from sound sources
such as a CD-ROM, TV tuner, or MPEG card.
Enable the CD-IN function in the audio utility when using this connector.
9. USB connectors (10-1 pin USB56, USB78)
These connectors are for USB 2.0 ports. Connect the USB module cable
to any of these connectors, then install the module to a slot opening at the
back of the system chassis. These USB connectors comply with USB 2.0
specication that supports up to 480 Mbps connection speed.
Never connect a 1394 cable to the USB connectors. Doing so will damage the
motherboard!
The USB module is purchased separately.
R
P5GC-MX/GBL
P5GC-MX/GBL Internal Audio Connector
CD
(black)
Right Audio Channel
Left Audio Channel
Ground Ground
R
P5GC-MX/GBL
P5GC-MX/GBL USB 2.0 Connectors
USB78
USB+5V USB_P8- USB_P8+ GND NC
USB+5V
USB_P7-
USB_P7+
GND
1
USB56
USB+5V
USB_P6-
USB_P6+
GND
NC
USB+5V USB_P5- USB_P5+ GND
1

Asus P5GC-MX GBL Specifications

General

Form Factor	Micro ATX
Chipset	Intel 945GC
CPU Socket Type	LGA 775
Memory Type	DDR2
Memory Standard	DDR2 667/533
Maximum Memory	4GB
Integrated Graphics	Intel GMA 950
LAN Chipset	Realtek RTL8111B
LAN Speed	10/100/1000Mbps
CPU Support	Intel Core 2 Duo, Pentium D, Pentium 4, Celeron
Memory Slots	2
Storage Interface	4 x SATA 3Gb/s
Back Panel Ports	1 x PS/2 Keyboard, 1 x PS/2 Mouse, 1 x Parallel, 1 x COM, 4 x USB 2.0, 1 x LAN (RJ45), 3 x Audio Jacks
USB Ports	8 x USB 2.0
Audio Channels	6 Channels
