Asus P5KPL User Manual

1-32 Chapter 1: Product introduction

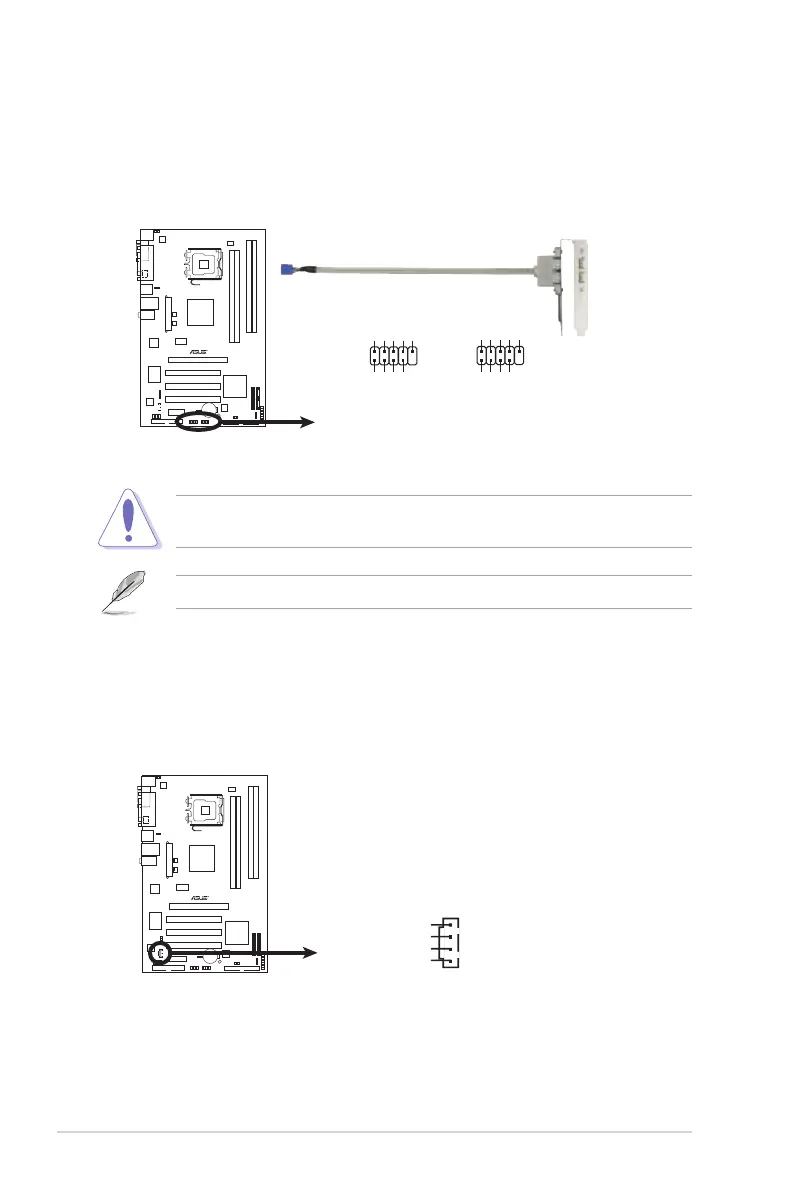

6. Optical drive audio connector (4-pin CD)
These connectors allow you to receive stereo audio input from sound sources
such as a CD-ROM, TV tuner, or MPEG card.
P5KPL
P5KPL Internal Audio Connector
CD
(black)
Right A
udio Channel
Left
A
udio Channel
Ground
Ground
5. USB connectors (10-1 pin USB56, USB78)
These connectors are for USB 2.0 ports. Connect the USB module cable
to any of these connectors, then install the module to a slot opening at the
back of the system chassis. These USB connectors comply with USB 2.0
specication that supports up to 480 Mbps connection speed.
P5KPL
P5KPL USB 2.0 Connectors
USB78
USB+5V USB_P8- USB_P8+ GND NC
USB+5V
USB_P7-
USB_P7+
GND
1
USB56
USB+5V USB_P6- USB_P6+ GND NC
USB+5V
USB_P5-
USB_P5+
GND
1
Never connect a 1394 cable to the USB connectors. Doing so will damage the
motherboard!
The USB module is purchased separately.

Asus P5KPL Specifications

General

Non-ECC	Yes
Number of memory slots	4
Maximum internal memory	4 GB
Processor socket	LGA 775 (Socket T)
Processor manufacturer	Intel
USB 2.0 connectors	2
Number of EATX power connectors	1
Special features	ASUS CrashFreeBIOS3 ASUS EZ Flash2 ASUS Q-Fan ASUS MyLogo2
Manageability features	WOL @ PME, WOR @ PME, WOR @ Ring
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Audio chip	Realtek ALC662
Audio output channels	5.1 channels
Motherboard form factor	ATX
Compatible operating systems	Windows 2000/XP/Vista
Bundled software	ASUS PC Probe II ASUS LiveUpdate
BIOS memory size	64 Mbit

Weight and Dimensions

Depth	193 mm
Width	350 mm
