2-2
Chapter 2: Hardware information
2.2

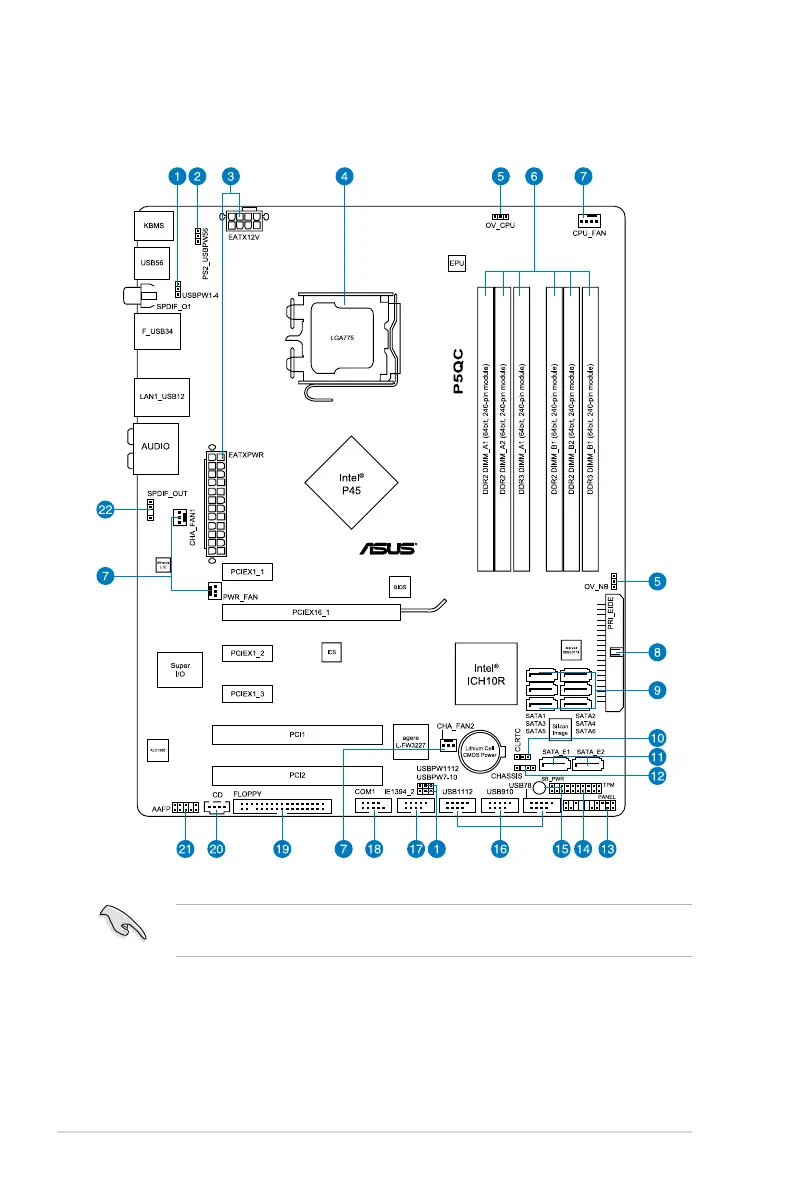

Motherboard overview
2.2.1
Motherboard layout
Refer to
2.7 Connectors
for more information about rear panel connectors and
internal connectors.
27
29
