ASUS P5QPL-AM 1-11

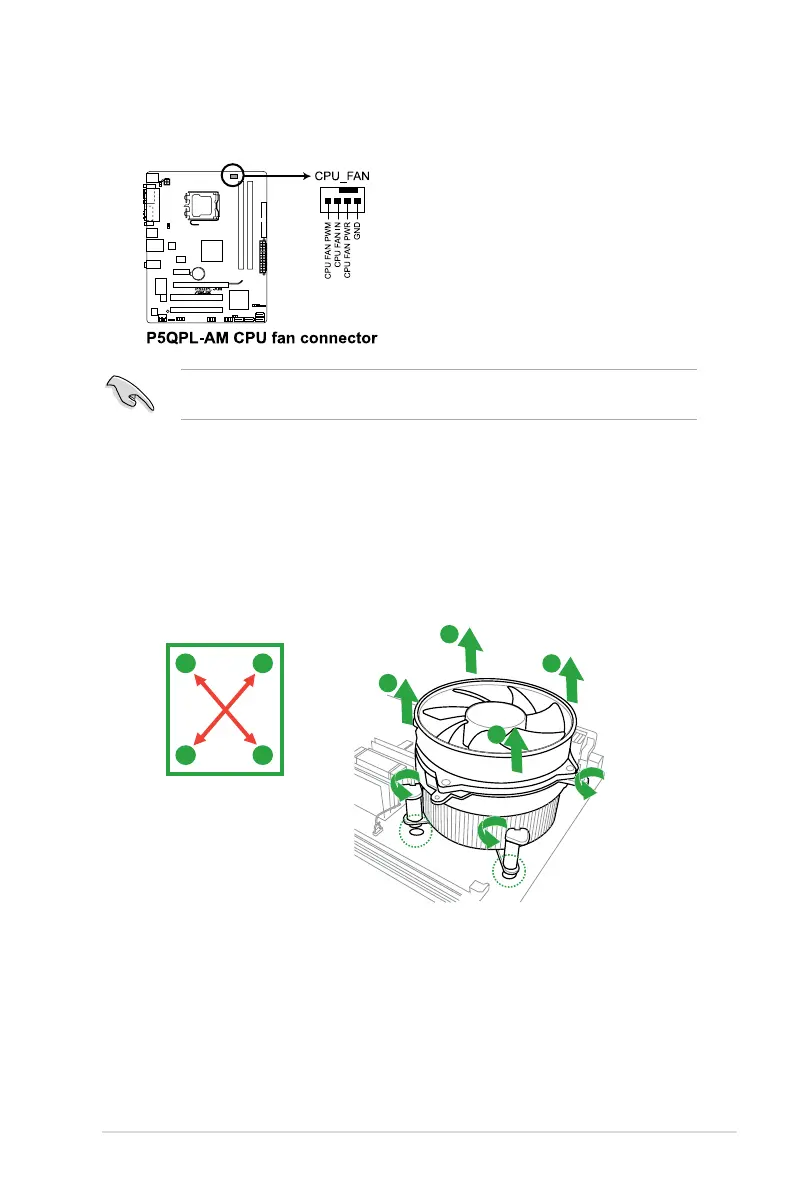

3. Connect the CPU fan cable to the connector on the motherboard labeled CPU_FAN.
Do not forget to connect the CPU fan connector! Hardware monitoring errors can occur if
you fail to plug this connector.
1.6.3 Uninstalling the CPU heatsink and fan
To uninstall the CPU heatsink and fan:
1. Disconnect the CPU fan cable from the connector on the motherboard.
2. Rotate each fastener counterclockwise.
3. Pull up two fasteners at a time in a diagonal sequence to disengage the heatsink and
fan assembly from the motherboard.
A
A
B
B
A
A
B
B

Asus P5QPL-AM - Motherboard - Micro ATX Specifications

General

Form Factor	Micro ATX
Chipset	Intel G41
Socket	LGA 775
Memory Slots	2
Maximum Memory	8 GB
Memory Type	DDR2
USB Ports	8 x USB 2.0
Video Outputs	1 x VGA
Supported RAM Speed	800 MHz
Expansion Slots	1 x PCIe x16
Storage Interfaces	4 x SATA 3Gb/s
LAN	Realtek RTL8111C Gigabit LAN controller
Compatible Processors	Intel Core 2 Quad, Core 2 Duo, Celeron
