Asus P8H61-M LX2 R2.0 User Manual

1-3Chapter 1: Product introduction

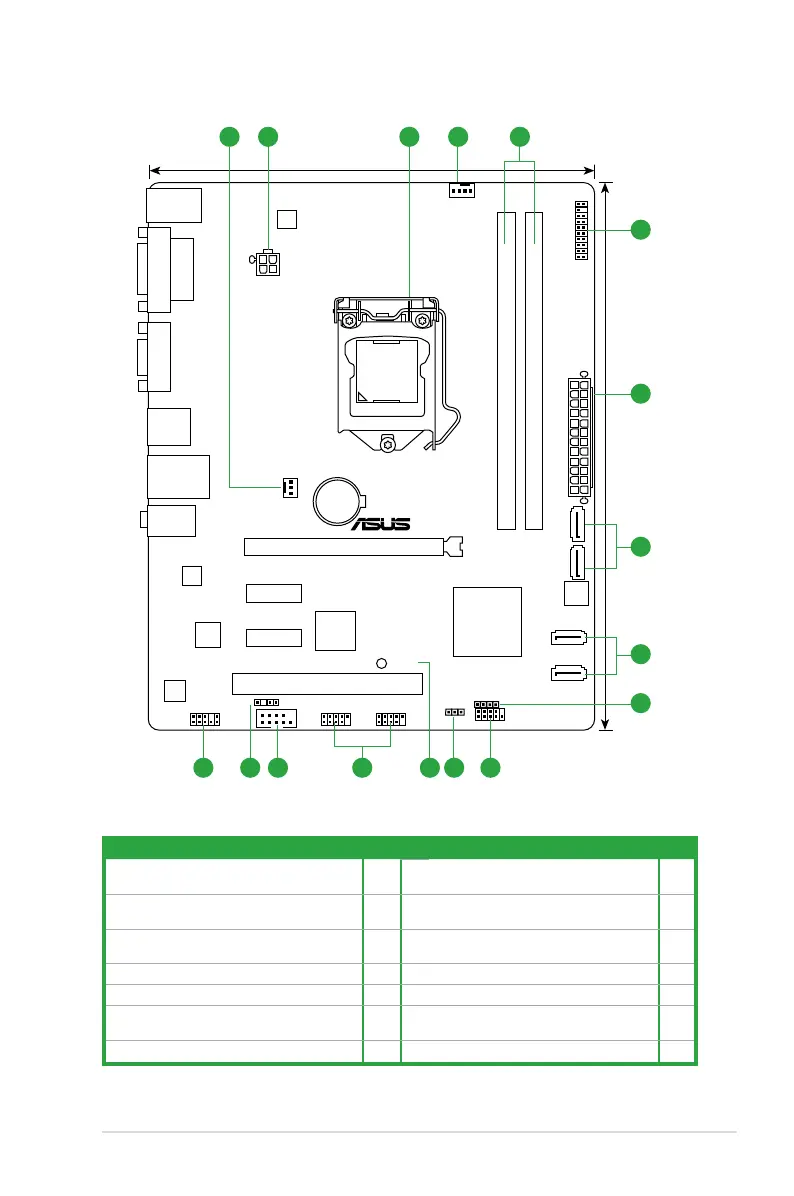

1.2.3 Motherboard layout
1.2.4 Layout contents
Connectors/Jumpers/Slots/LED Page Connectors/Jumpers/Slots/LED Page
1.
CPU and chassis fan connectors
(4-pin CPU_FAN, 3-pin CHA_FAN)
1-19 8. System panel connector (10-1 pin PANEL) 1-21
2.
ATX power connectors (24-pin EATXPWR,
4-pin ATX12V)
1-18 9. Clear RTC RAM (3-pin CLRTC) 1-15
3. Intel
®
LGA1155 CPU socket 1-4 10. Standby power LED (SB_PWR) 1-1
4. DDR3 DIMM slots 1-9 11. USB connectors (10-1 pin USB78, USB910) 1-19
5. TPM connector (20-1 pin TPM) 1-22 12. Serial port connector (10-1 pin COM1) 1-18
6.
Intel
®
H61 Serial ATA 3.0Gb/s connectors
(7-pin SATA3G_1/2/3/4)
1-20 13. Digital audio connector (4-1 pin SPDIF_OUT) 1-20
7. Speaker connector (4-pin SPEAKER) 1-21 14 Front panel audio connector (10-1 pin AAFP) 1-17
P8H61-M LX2 R2.0
PCIEX16_1
PCI1
PCIEX1_1
PCIEX1_2
COM1
USB78
F_PANEL
SPEAKER
USB910
CLRTC
AAFP
ATX12V
EATXPWR
CPU_FAN
TPM
CHA_FAN
Lithium Cell
CMOS Power
Super
I/O
VIA
VT1708S
RTL
8111F
EPU
8Mb
BIOS
asmedia
ASM1083
SB_PWR
SPDIF_OUT
24.4cm(9.6in)
LGA1155
Intel
®
H61
DDR3 DIMM_A1 (64bit, 240-pin module) DDR3 DIMM_B1 (64bit, 240-pin module)
SATA3G_3
SATA3G_4
SATA3G_2
SATA3G_1
AUDIO
KB_USB56
LAN_USB12
USB34
19.8cm(7.8in)
VGA
DVI
321 41
6
2
5
8911121314 10
6
7

Asus P8H61-M LX2 R2.0 Specifications

General

Non-ECC	Yes
Memory slots type	DIMM
Number of memory slots	2
Supported memory types	DDR3-SDRAM
Maximum internal memory	16 GB
Supported memory clock speeds	1066, 1333, 1600, 1866, 2000, 2133, 2200 MHz
Processor socket	LGA 1155 (Socket H2)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Pentium
USB 2.0 connectors	4
Number of EATX power connectors	1
USB 3.2 Gen 1 (3.1 Gen 1) connectors	0
USB 2.0 ports quantity	6
Component for	PC
Power source type	ATX
Motherboard chipset	Intel® H61
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Supported storage drive interfaces	SATA II
Parallel processing technology support	-
Cables included	SATA
LAN controller	Realtek RTL8111F
Ethernet interface type	Gigabit Ethernet
BIOS type	EFI
ACPI version	2.0a
BIOS memory size	64 Mbit

Weight and Dimensions

Depth	198.2 mm
Width	244 mm
