Asus P8H61 USB3 R2.0 User Manual

ASUS P8H61 R2.0 Series1-10

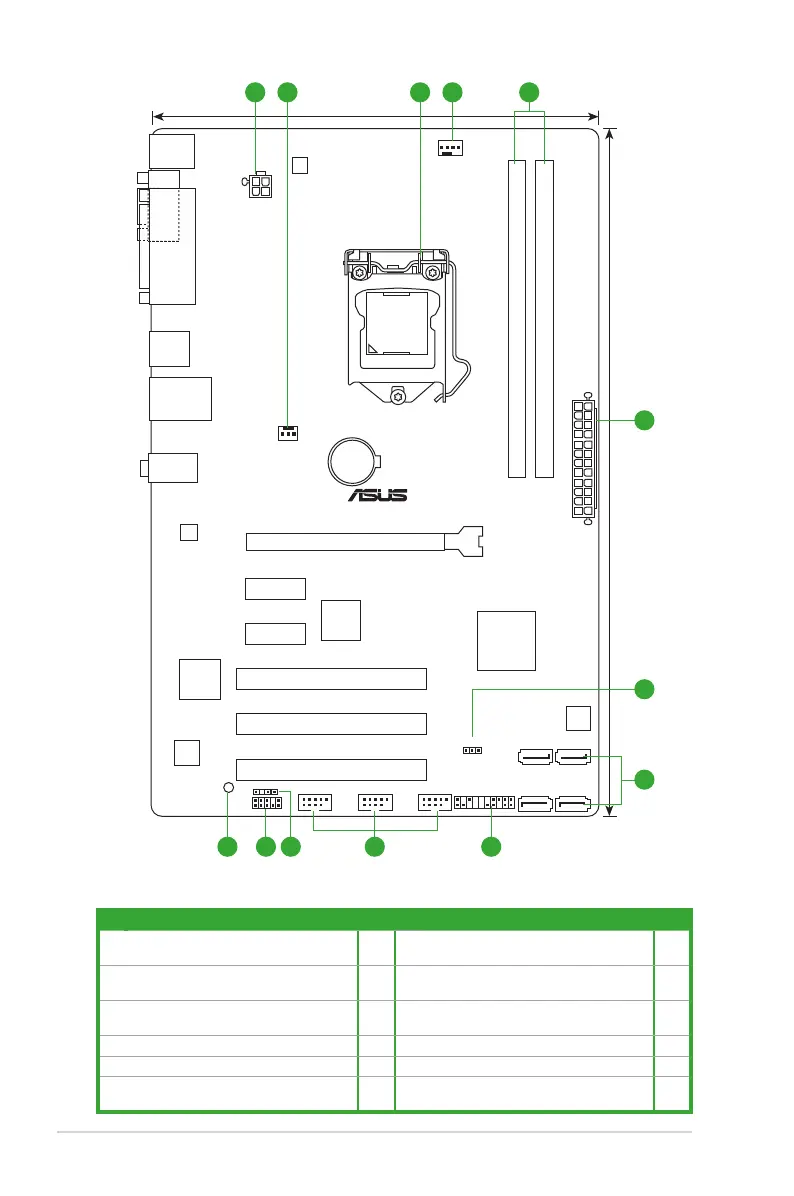

1.5.4 Layout contents
Connectors/Jumpers/Slots/LED Page Connectors/Jumpers/Slots/LED Page
1. ATX power connectors (24-pin EATXPWR,
4-pin ATX12V)
1-28 7. System panel connector (20-8 pin PANEL) 1-32
2. CPU and chassis fan connectors
(4-pin CPU_FAN, 3-pin CHA_FAN)
1-29 8. USB 2.0 connectors (10-1 pin USB56,
USB78, USB910)
1-31
3. Intel
®
LGA1155 CPU socket 1-11 9. Digital audio connector (4-1 pin SPDIF_OUT) 1-29
4. DDR3 DIMM slots 1-16 10. Front panel audio connector (10-1 pin AAFP) 1-27
5. Clear RTC RAM (3-pin CLRTC) 1-25 11. Standby power LED (SB_PWR) 1-6
6. Intel
®
H61 Serial ATA 3.0Gb/s connectors
(7-pin SATA3G_1/2/3/4)
1-30
P8H61 R2.0
ASM
1083
PCIEX16
PCIEX1_1
PCIEX1_2
PCI1
PCI2
PCI3
USB56 USB78 USB910
AAFP
EATXPWR
CPU_FAN
Lithium Cell
CMOS Power
Super
I/O
ALC
887
RTL
8111F
KBMS
64Mb
BIOS
SB_PWR
CLRTC
19.8cm(7.8in)
Intel
®
H61
DDR3 DIMM_A1 (64bit, 240-pin module) DDR3 DIMM_B1 (64bit, 240-pin module)
SATA3G_1SATA3G_2
SATA3G_3SATA3G_4
AUDIO
LAN_USB12
USB34
CHA_FAN
PANEL
SPDIF_OUT
30.5cm(12.0in)
ATX12V
LGA1155
LPT
COM1
DIGI+
VRM
3 21 2 4
710 8911
1
6
5

Asus P8H61 USB3 R2.0 Specifications

General

ECC	No
Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	2
Supported memory types	DDR3-SDRAM
Maximum internal memory	16 GB
Supported memory clock speeds	1066, 1333, 1600, 1800, 2000, 2133, 2200 MHz
System bus rate	5 GT/s
Processor socket	LGA 1155 (Socket H2)
Processor manufacturer	Intel
Compatible processor series	Intel Core i3, Intel Core i5, Intel Core i7
Maximum number of SMP processors	1
USB 2.0 connectors	3
Number of SATA II connectors	4
USB 3.2 Gen 1 (3.1 Gen 1) connectors	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Audio chip	Realtek ALC887
Cooling type	Passive
Component for	PC
Motherboard chipset	Intel® H61
PC health monitoring	CPU, FAN, Temperature
Audio output channels	7.1 channels
Motherboard form factor	ATX
Supported storage drive interfaces	SATA, SATA II
Parallel processing technology support	Not supported
PCI Express slots version	2.0, 3.0
PCI Express configurations	1x16
Cables included	SATA
Special features	2 x Thunderbolt
LAN controller	Realtek RTL8111F
Networking features	Gigabit LAN
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
BIOS type	EFI AMI
ACPI version	2.0a
BIOS memory size	64 Mbit

Weight and Dimensions

Depth	198.1 mm
Width	305 mm
