ASUS P8H67-I Series 1-8
1.7 Connectors
1.7.1 Rear panel connectors

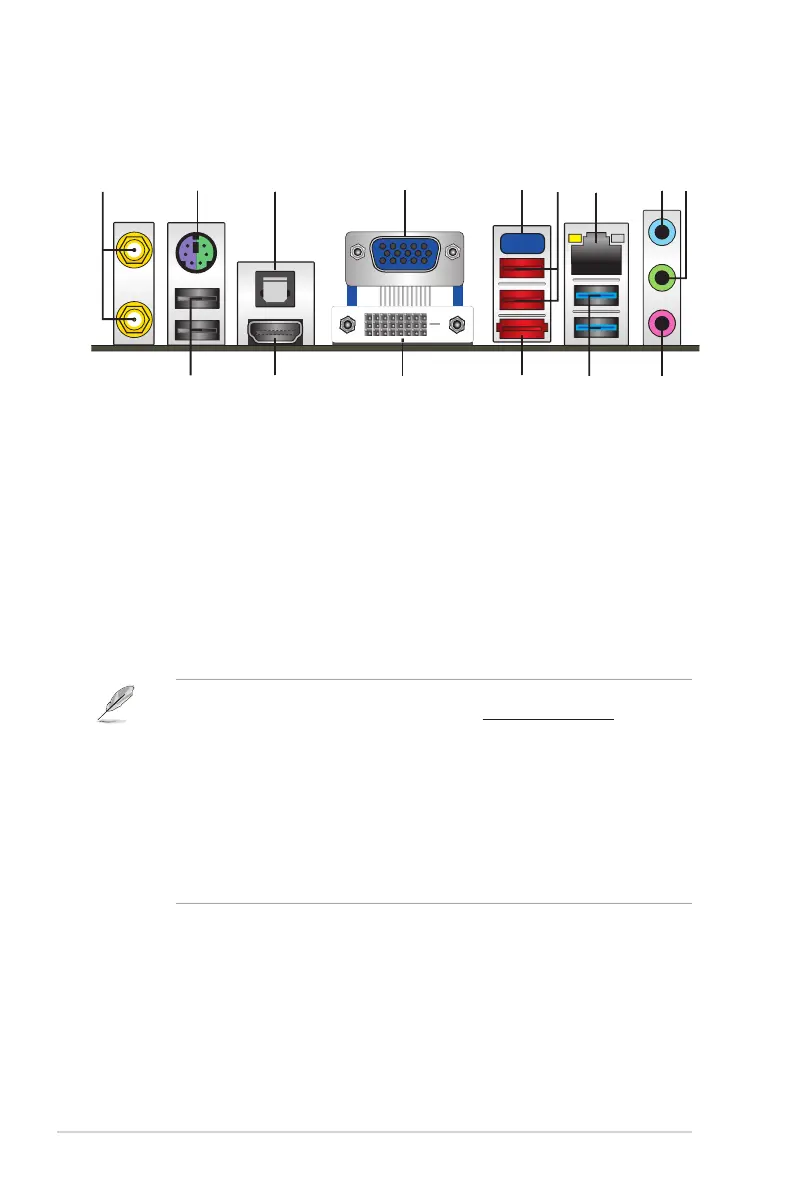

1. WLAN antenna ports (
P8H67-I DELUXE only
). These ports connect to the WLAN
antennas.
2. PS/2 Keyboard / Mouse Combo port. This port is for a PS/2 keyboard or PS/2
mouse.
3. Optical S/PDIF output port. This port connects to an external audio output device via
an optical S/PDIF cable.
4. Video Graphics Adapter (VGA) port. This 15-pin port is for a VGA monitor or other
VGA-compatible devices.
5. Onboard Bluetooth module (
P8H67-I DELUXE only
). This onboard Bluetooth
module allows wireless connection and data transfer between your system and other
Bluetooth devices.
41 3 5 6
7
111213
8 9
10
2
1415
• Under Windows
®
7 OS, to achieve the complete Bluetooth functions, download the latest
Bluetooth driver from the ASUS support wedsite at http://support.asus.com.
• Bluetooth Electrical Specication:
Bluetooth specication V.2.1 compliant;
Transmission rate up to 3 Mbps;
Working distance up to 10 meters;
• Under Windows
®
XP, if the Bluetooth Driver item is not displayed on the Support DVD’s
Drivers screen, follow the steps below:
1. Shut down your computer and switch off the Power Supply Unit (PSU).
2. Switch on the PSU and boot up your computer.
3. Open the Support DVD and click ASUS InstAll.
6. USB 2.0 ports 1 and 2. These two 4-pin Universal Serial Bus (USB) ports are for USB
2.0/1.1 devices.
