Asus P8H77-I User Manual

1-8 Chapter 1: Product introduction

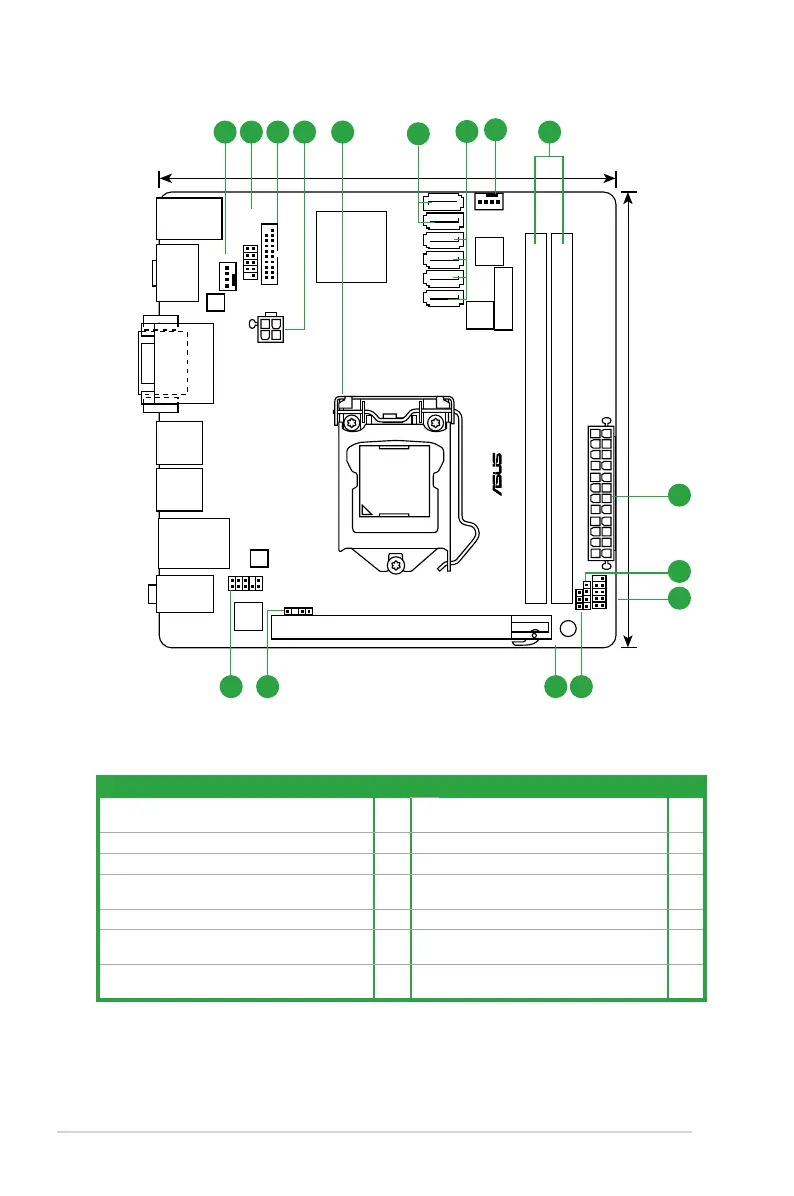

1.5.3 Motherboard layout
1.5.4 Layout contents
Connectors/Jumpers/Slots/LED Page Connectors/Jumpers/Slots/LED Page
1. CPU, chassis fan connectors (4-pin CPU_FAN,
4-pin CHA_FAN)
1-27 8. DDR3 DIMM slots 1-14
2. USB connectors (10-1 pin USB78) 1-31 9 Speaker connector (4-pin SPEAKER) 1-28
3. USB 3.0 connector (20-1 pin USB3_34) 1-30 10. System panel connector (10-1 pin PANEL) 1-28
4. ATX power connectors (24-pin EATXPWR,
4-pin EATX12V)
1-27 11. Clear RTC RAM (3-pin CLRTC) 1-28
5. Intel
®
LGA1155 CPU socket 1-9 12. Onboard LED (SB_PWR) 1-6
6. Intel
®
H77 Serial ATA 6.0Gb/s connectors
(7-pin SATA6G_1/2 [gray])
1-30 13. Digital audio connector (4-1 pin SPDIF_OUT) 1-26
7. Intel
®
H77 Serial ATA 3.0Gb/s connectors (7-pin
SATA3G_1~4 [blue])
1-29 14. Front panel audio connector (10-1 pin AAFP) 1-26
P8H
77
-I
PCIEX16
Super
I/O
F_PANEL
AAFP
ATX12V
EATXPWR
CPU_FAN
CHA_FAN
USB78
Lithium Cell
CMOS Power
USB3_12
USB34
RTL
8111F
ASM
1442
VIA
VT1708S
64Mb
BIOS
SB_PWR
17cm(6.7in)
17cm(6.7in)
Intel
®
H77
SATA6G_1
SATA6G_2
SATA3G_1
SATA3G_2
SATA3G_3
SATA3G_4
SPDIF_OUT
SPEAKER
DDR3 DIMMA1 (64bit, 240-pin module) DDR3 DIMMB1 (64bit, 240-pin module)
CLRTC
LGA1155
AUDIO
HDMI
SPDIFO
LAN_USB12
KBMS_USB56
DVI_VGA
USB3_34
6
21 3 4
4
10
9
1314
1
5
1112
8
7

Asus P8H77-I Specifications

General

ECC	Yes
Memory voltage	1.5 V
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	2
Supported memory types	DDR3-SDRAM
Maximum internal memory	16 GB
Supported memory clock speeds	1066, 1333, 1600, 1800, 1866, 2000, 2133, 2200 MHz
Supported memory module capacities	1GB, 2GB, 4GB, 8GB
System bus rate	5 GT/s
Processor socket	LGA 1155 (Socket H2)
Processor manufacturer	Intel
Compatible processor series	Intel Core i3, Intel Core i5, Intel Core i7
Maximum number of SMP processors	1
Number of SATA II connectors	4
Number of Parallel ATA connectors	0
Headphone outputs	3
USB 2.0 ports quantity	6
Cooling type	Passive
Component for	PC
Power source type	ATX
Motherboard chipset	Intel H77
PC health monitoring	CPU, FAN, Temperature
Audio output channels	7.1 channels
Motherboard form factor	mini ITX
RAID levels	0, 1, 5, 10
Supported storage drive interfaces	SATA II, SATA III
Cables included	SATA
Graphics card	HD Graphics
OpenGL version	3.2
DirectX version	11
Maximum resolution	2048 x 1536 pixels
Maximum graphics card memory	1696 MB
Parallel processing technology support	LucidLogix Virtu
PCI Express slots version	2.0, 3.0
PCI Express configurations	1x16
Bluetooth	No
LAN controller	Realtek RTL8111F
Wi-Fi standards	Not supported
Networking features	Gigabit LAN
Ethernet interface type	Gigabit Ethernet
BIOS type	AMI
ACPI version	2.0a
BIOS memory size	64 Mbit

Weight and Dimensions

Width	170 mm
