Asus P8H77-I User Manual

1-28 Chapter 1: Product introduction

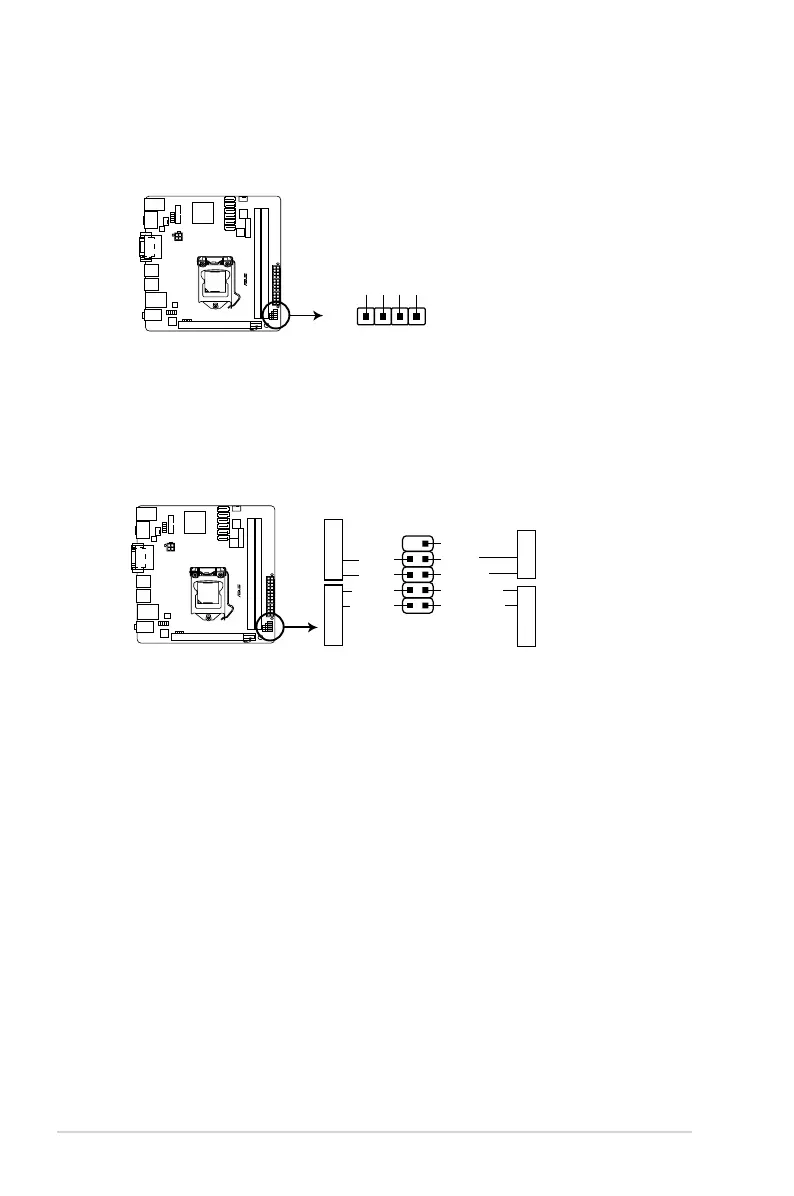

5. Speaker connector (4-pin SPEAKER)
The 4-pin connector is for the chassis-mounted system warning speaker. The speaker
allows you to hear system beeps and warnings.
8
0
1
P8H77-ISpeaker Out Connector
+5V GND GND Speaker Out
SPEAKER
PIN 1
6. System panel connector (10-1 pin PANEL)
This connector supports several chassis-mounted functions.
• System power LED (2-pin PLED)
This 2-pin connector is for the system power LED. Connect the chassis power LED
cable to this connector. The system power LED lights up when you turn on the system
power, and blinks when the system is in sleep mode.
• Hard disk drive activity LED (2-pin +HDLED)
This 2-pin connector is for the HDD Activity LED. Connect the HDD Activity LED cable
to this connector. The IDE LED lights up or ashes when data is read from or written to
the HDD.
• Power/Soft-off button (2-pin PWRBTN)
This 2-pin connector is for the system power button.
• Reset button (2-pin RESET)
This 2-pin connector is for the chassis-mounted reset button for system reboot without
turning off the system power.
P8H77-
I
P8H77-I System panel connector
PIN 1
PWR BTN
GND
PWR
PLED-
PLED+
Reset
Ground
HD_LED-
HD_LED+
F_PANEL
PWR LED
+HD_LED RESET

Asus P8H77-I Specifications

General

ECC	Yes
Memory voltage	1.5 V
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	2
Supported memory types	DDR3-SDRAM
Maximum internal memory	16 GB
Supported memory clock speeds	1066, 1333, 1600, 1800, 1866, 2000, 2133, 2200 MHz
Supported memory module capacities	1GB, 2GB, 4GB, 8GB
System bus rate	5 GT/s
Processor socket	LGA 1155 (Socket H2)
Processor manufacturer	Intel
Compatible processor series	Intel Core i3, Intel Core i5, Intel Core i7
Maximum number of SMP processors	1
Number of SATA II connectors	4
Number of Parallel ATA connectors	0
Headphone outputs	3
USB 2.0 ports quantity	6
Cooling type	Passive
Component for	PC
Power source type	ATX
Motherboard chipset	Intel H77
PC health monitoring	CPU, FAN, Temperature
Audio output channels	7.1 channels
Motherboard form factor	mini ITX
RAID levels	0, 1, 5, 10
Supported storage drive interfaces	SATA II, SATA III
Cables included	SATA
Graphics card	HD Graphics
OpenGL version	3.2
DirectX version	11
Maximum resolution	2048 x 1536 pixels
Maximum graphics card memory	1696 MB
Parallel processing technology support	LucidLogix Virtu
PCI Express slots version	2.0, 3.0
PCI Express configurations	1x16
Bluetooth	No
LAN controller	Realtek RTL8111F
Wi-Fi standards	Not supported
Networking features	Gigabit LAN
Ethernet interface type	Gigabit Ethernet
BIOS type	AMI
ACPI version	2.0a
BIOS memory size	64 Mbit

Weight and Dimensions

Width	170 mm
